Semi Electric Pallet Jack
TianyuLux is a China manufacturer & supplier who produces Semi Electric Pallet Jack. We have been focusing on forklift and pallet truck equipment for many years. Our products have high load capacity and good quality and price advantages, suitable for a range of applications from flat warehouses to rugged construction sites. Sincerely look forward to cooperating with you in the near future.

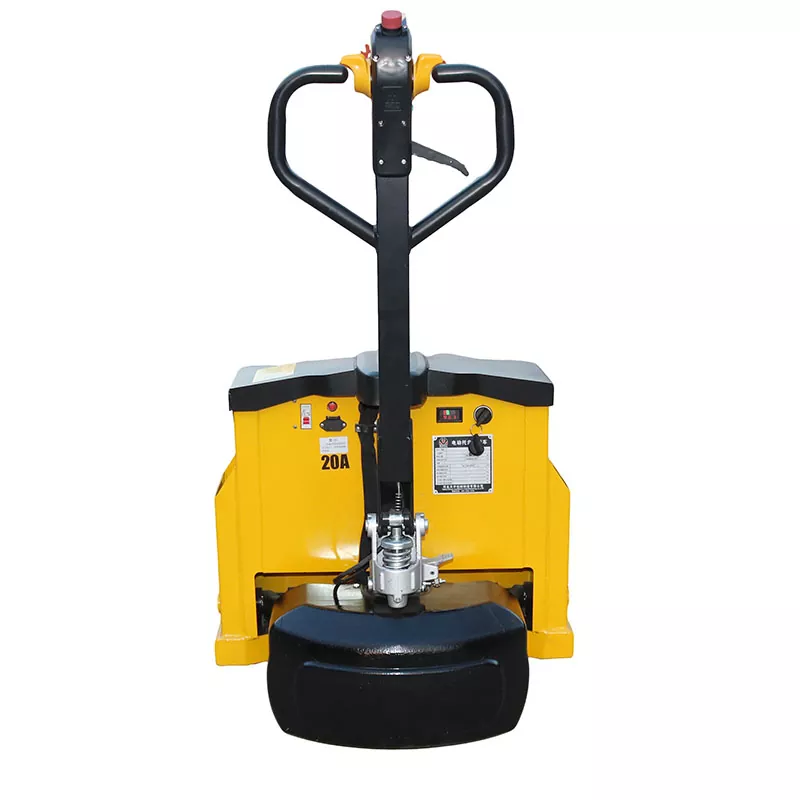

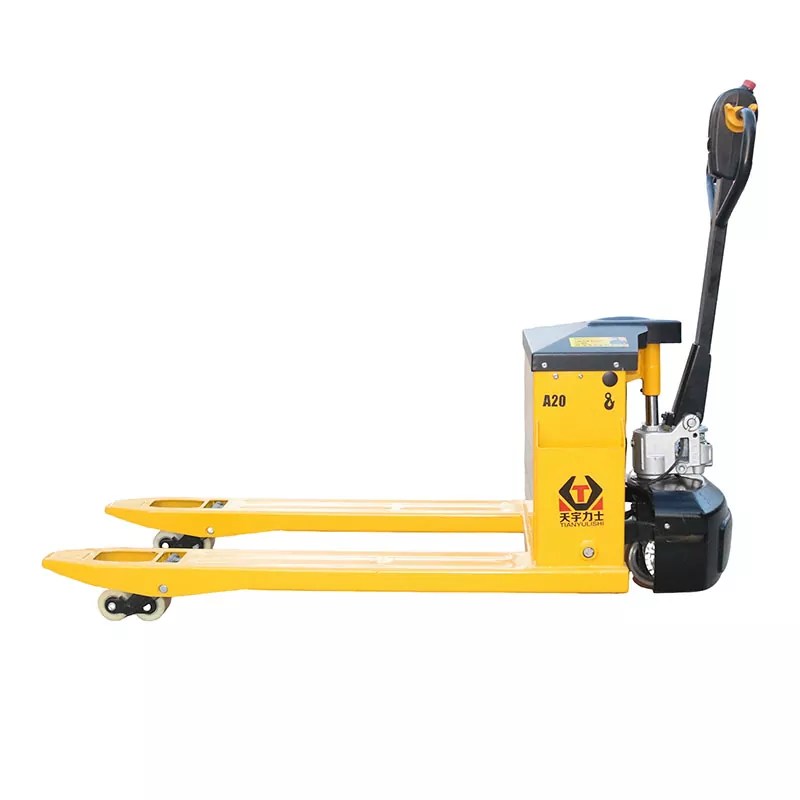

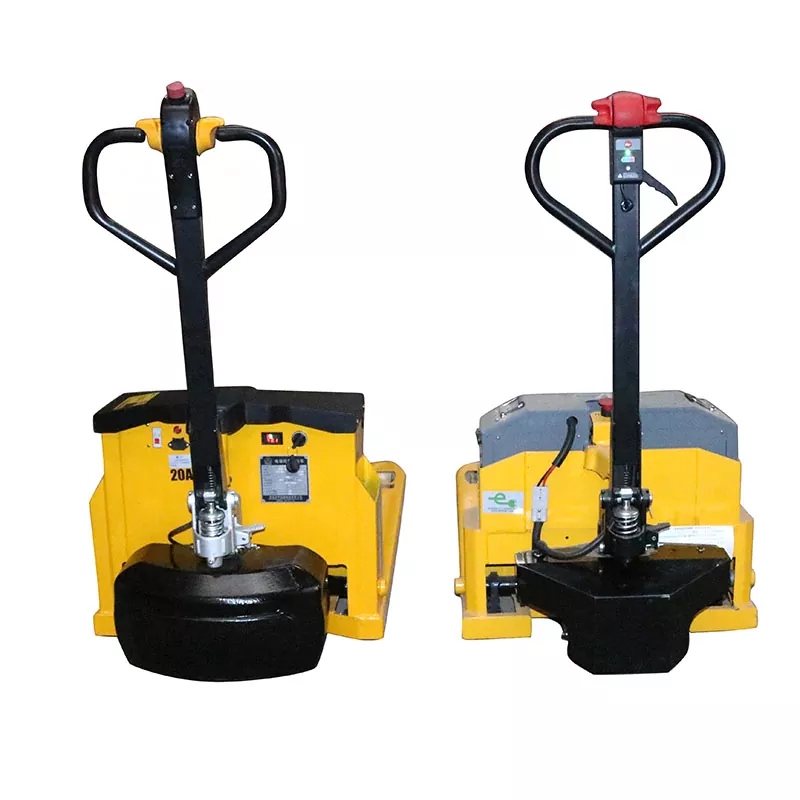

This TianyuLux Semi Electric Pallet Jack is a very cost-effective product.
The designed load capacity reaches 2000kg, and it can actually easily carry 2500kg without any problems, and can easily handle common cargo weights. Our forks adopt independent mold design, one-piece stamping, sturdy and durable, and can carry at least 3 tons of weight. Our products have CE certification and have obtained ISO9001 international quality management system certification during the production process. TianyuLux Semi Electric Pallet Jack is a good choice for handling goods in factory warehouses.
Parameter (Specification)
|
Features |
1 |
Model |
|
A20 Fully Electric (Little Lux) |
A20 Semi-electric (Little Lux) |
|
2 |
Power form |
|
Electrical |
Electrical |
|
|
3 |
Operation |
|
Pedestrian |
Pedestrian |
|
|
4 |
Load |
kg |
2000 |
2000 |
|
|
5 |
Load center distance |
mm |
600 |
600 |
|
|
6 |
Wheelbase |
mm |
1250/1280 |
1250/1280 |
|
|
Weight |
7 |
Self weight with battery |
kg |
158 |
158 |
|
Wheel |
8 |
Wheel Type |
|
Front rubber, rear PU/nylon |
Front rubber, rear PU/nylon |
|
9 |
Driving wheel size (diameter×width) |
mm |
φ160×50 |
φ160×50 |
|
|
10 |
Load-bearing wheel size (diameter×width) |
mm |
φ80×70/60 |
φ80×70/60 |
|
|
11 |
Number of wheels Drive side / Load side |
|
1/4 |
1/4 |
|
|
Basic size |
12 |
Maximum height of fork |
mm |
200 |
200 |
|
13 |
Lifting stroke |
mm |
115 |
115 |
|
|
14 |
Minimum height of fork (±2mm) |
mm |
85 |
85 |
|
|
15 |

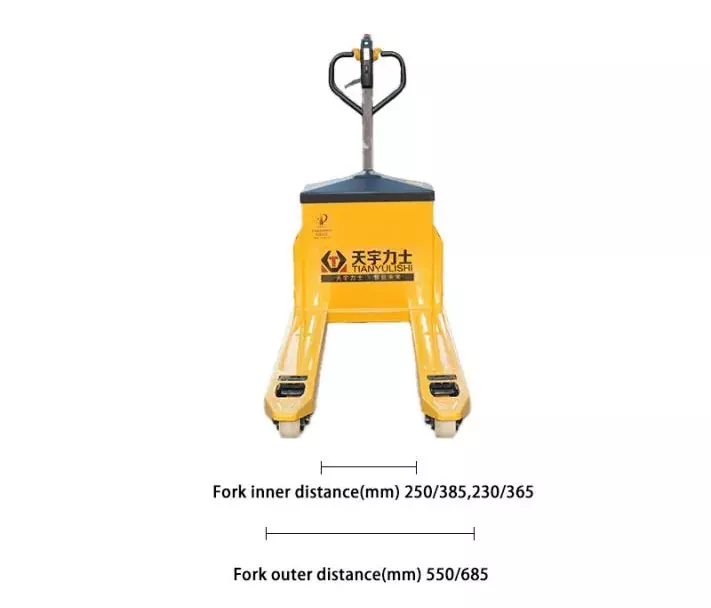

Fork outer distance |
mm |
550/685 |
550/685 |
|
|
16 |
Fork inner distance |
mm |
250/385，230/365 |
250/385，230/365 |
|
|
17 |

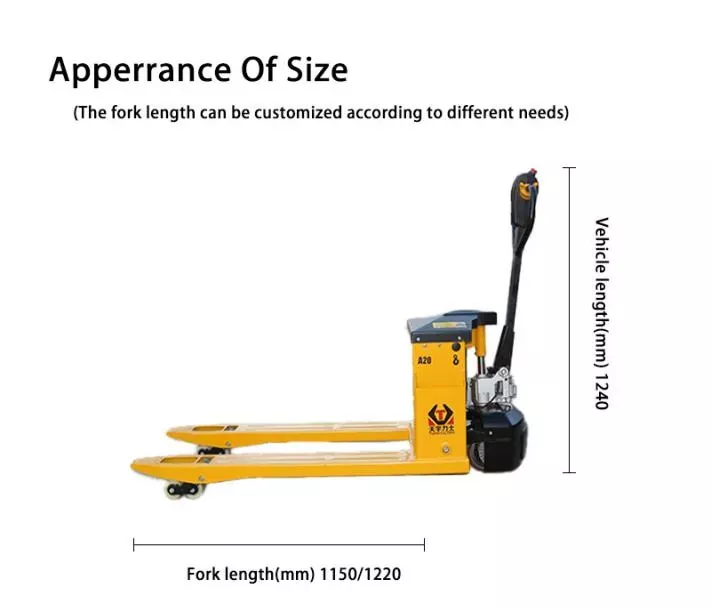

Length of forks |
mm |
1150/1220 |
1150/1220 |
|
|
18 |
Width of forks |
mm |
150 /160 |
150 /160 |
|
|
19 |
Thickness of forks |
mm |
60 |
60 |
|
|
20 |
Overall width |
mm |
560/685 |
560/685 |
|
|
22 |
Overall height without handle |
mm |
650 |
650 |
|
|
22 |
Overall length |
mm |
1780 |
1780 |
|
|
23 |
Overall height with handle |
mm |
1240 |
1240 |
|
|
24 |
Turning Radius |
mm |
1460 |
1460 |
|
|
Capability |
25 |
Travel speed, laden/unladen |
km/h |
4/4.5 |
4/4.5 |
|
26 |
Lifting speed, laden/unladen |
mm/s |
22/33 |
|
|
|
27 |
Maximum climbing grade, laden/unladen |
% |
8/16 |
8/16 |
|
|
28 |
Brake type |
|
Electronic brake / electromagnetic brake |
Electronic brake / electromagnetic brake |
|
|
Motor / Battery |
29 |
Rated power of driving motor |
kw |
0.8 |
|
|
30 |
Rated power of lifting motor |
kw |
0.8 |
|
|
|
31 |
Lead-acid Battery |
V/Ah |
48/20 |
48/20 |
|
|
32 |
Battery weight |
kg |
24 |
24 |
Feature And Application

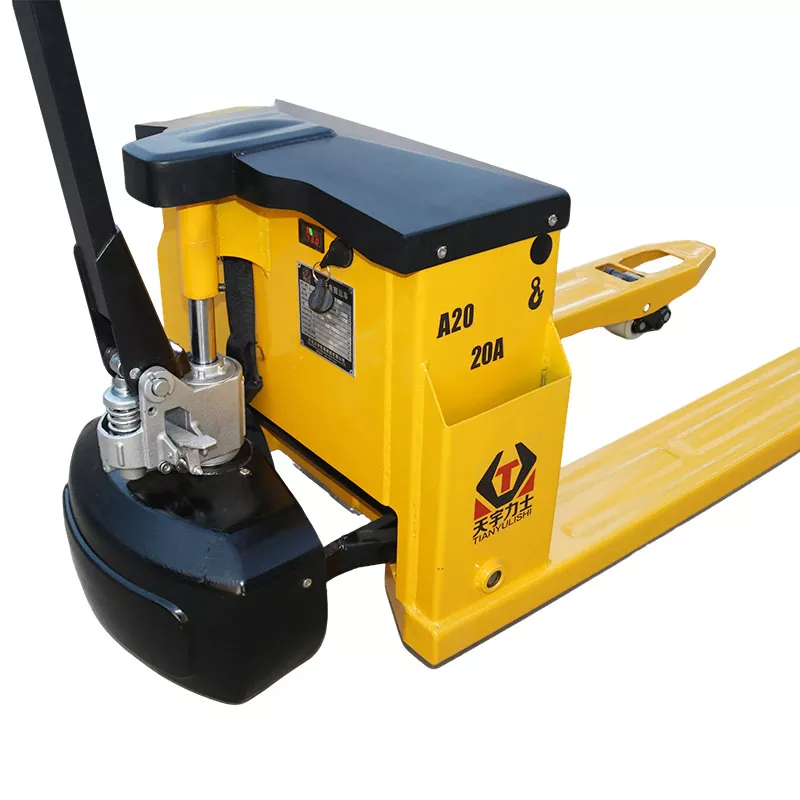

TianyuLux is a professional Semi Electric Pallet Jack factory in China. Our pallet trucks have a wide range of applications. The high-strength steel battery compartment can well protect the controller and battery, and the service life is greatly extended.
TianyuLux gearboxes are customized with special "high adhesion synthetic grease". Even when the gears are running at high speed, the grease always adheres to the gears and will not be thrown onto the housing. The gears are permanently and fully lubricated, and the gear life is longer. Extra-long warranty for one year. While inferior gearboxes usually add ordinary butter. When the gears run at high speed, most of the butter is thrown onto the housing, the gears are not fully lubricated, easy to wear, and the after-sales cost is high.
The one-piece molding technology makes the overall structure of the fork stronger and able to withstand higher weight. Even under long-term high-load operation, the fork is not easy to deform or break, ensuring the stability and safety of the pallet truck.

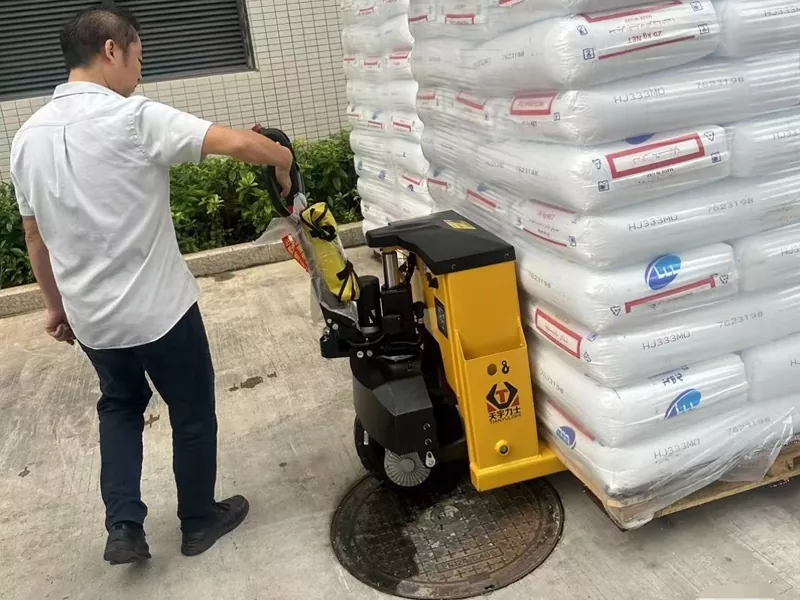

Application Scenario

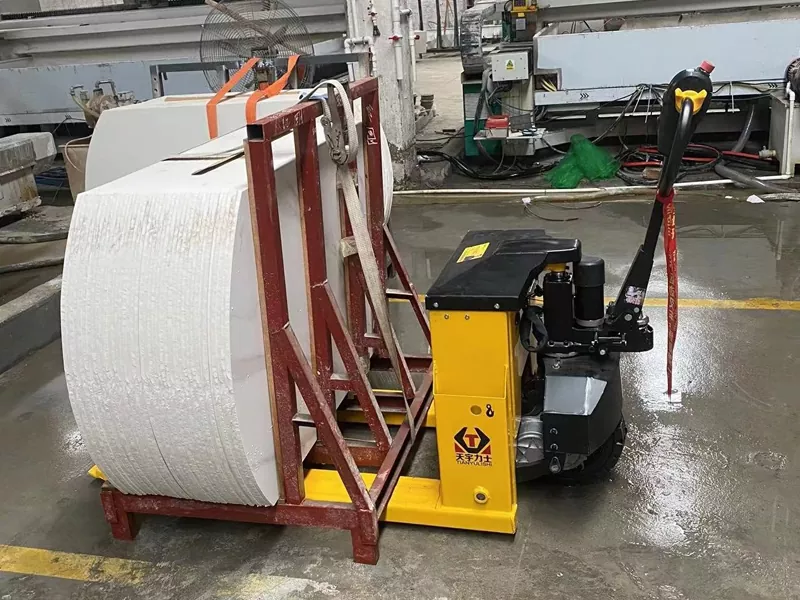

Building materials factory
Chemical Plant

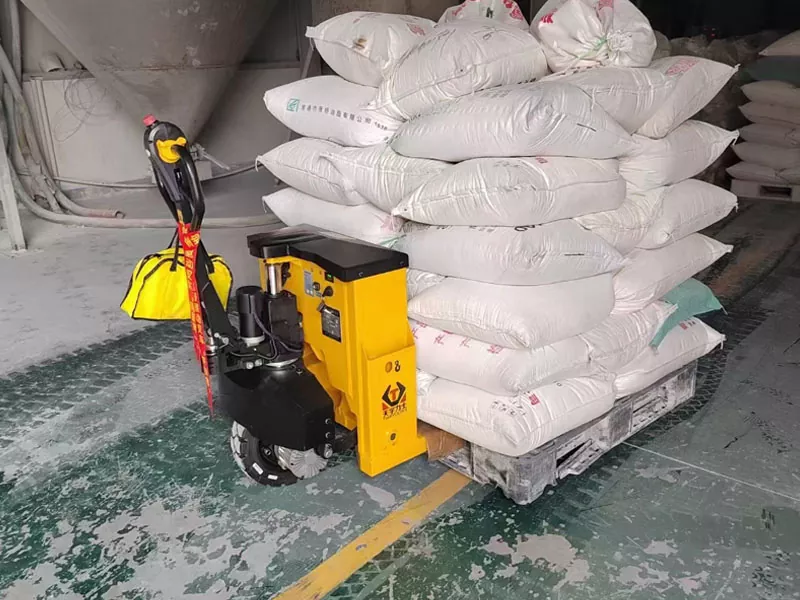

Flour Mill
Parts processing plant

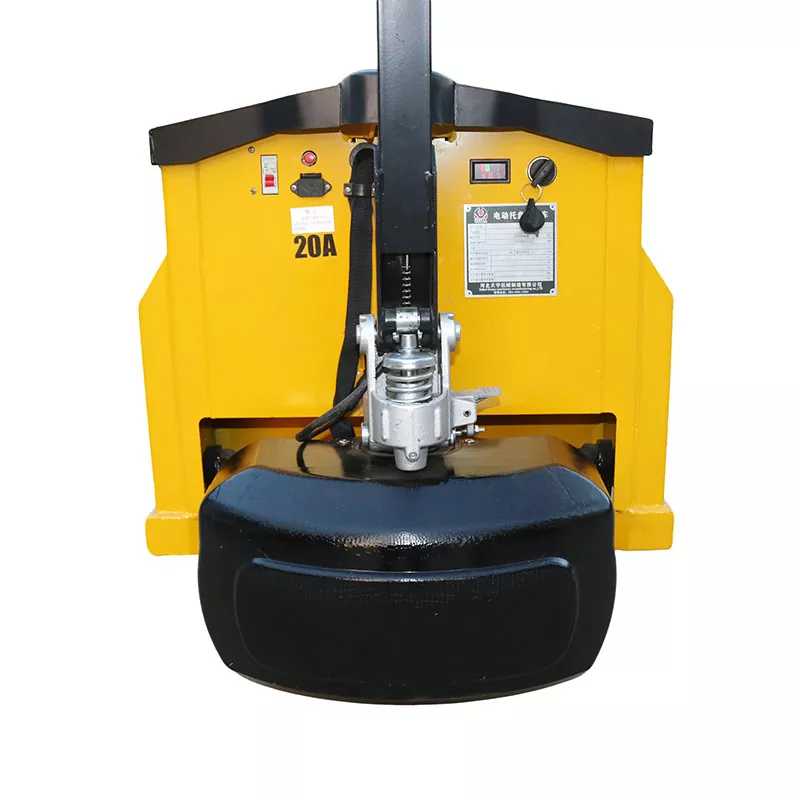

Details
TianyuLux's self-developed Semi Electric Pallet Jack has won the recognition of customers for its high cost-effectiveness and excellent quality. TianyuLux's fork support beam uses reinforced and thickened steel plates, which are not easily deformed when overloaded, and are more stable when enlarged and widened. It can carry up to 3 tons, has a high safety factor, and is more durable. Inferior products use ordinary support beams, which are made of small materials, low strength, weak load-bearing capacity, low safety factor, easy to deform and break, and have high after-sales costs.
Our Factory
TianyuLux has more than 100 off-road electric pallet truck production personnel, 3 production lines, more than 20 R&D personnel, more than 30 machining equipment, several large laser cutting machines, several stamping equipment, several robotic arm welding equipment, etc.
