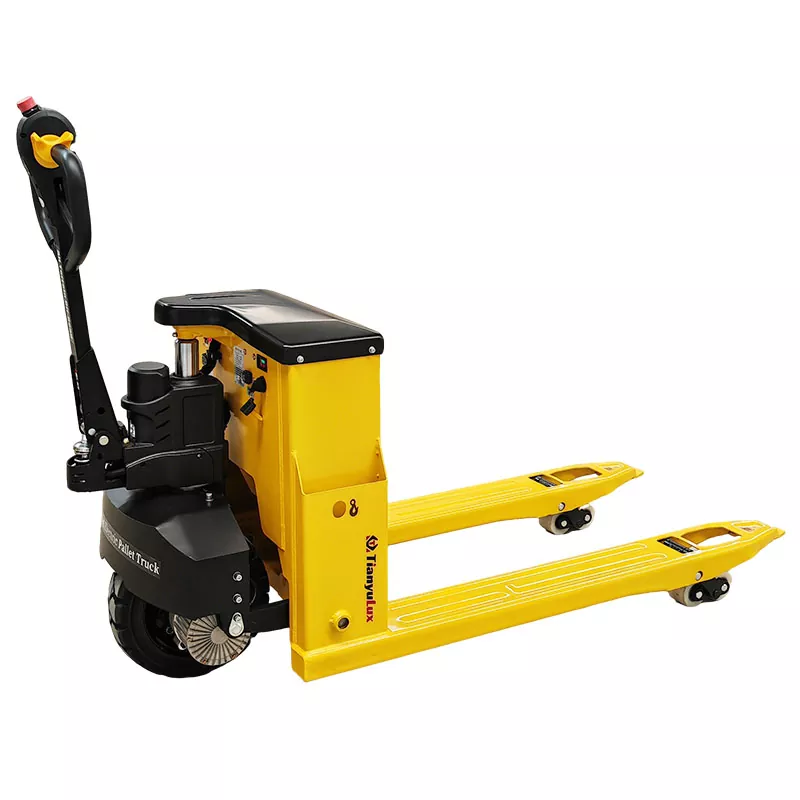

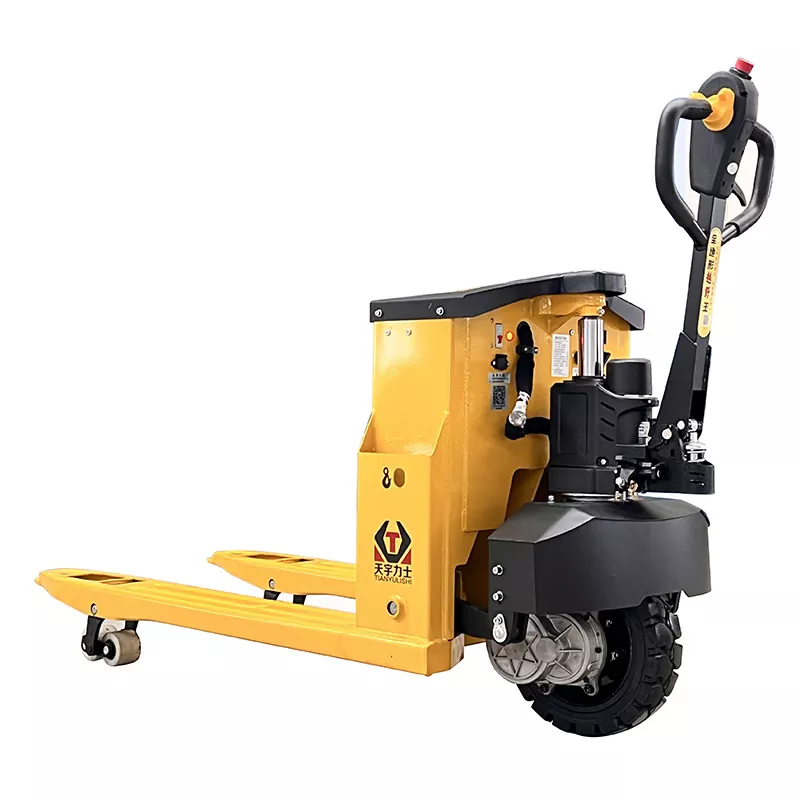

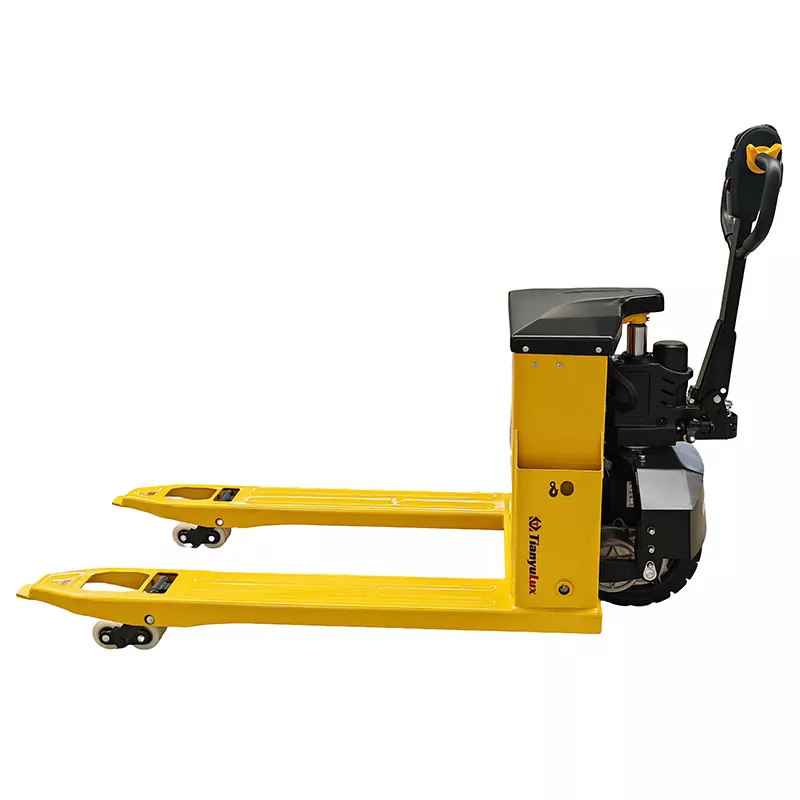

Full Electric Pallet Jack
TianyuLux is a professional China Full Electric Pallet Jack manufacturer and supplier. We have been focusing on construction site forklift equipment for many years. Our products are designed for complex and harsh environments, with wear-resistant solid rubber tires, thick steel plates for increased durability, and one-piece heavy-duty cylinders that can easily carry 3 tons of cargo.
This TianyuLux Full Electric Pallet Jack is a Pallet Jack suitable for complex and harsh working conditions such as construction sites and flat roads in factory warehouses. Our product uses 350*100 large-diameter solid rubber drive tires, which can easily cross stones, steel bars, bumpy roads, gravel roads, and muddy roads. In some factories or ramps with sloping roads, the powerful power can help the pallet truck easily pass the large slope of 3°-8°, and the dustproof and waterproof design also greatly reduces the failure rate. TianyuLux off-road construction site electric pallet truck is your best choice for construction site pallet trucks!
Parameter (Specification)
|
Features |
1 |
Model |
|
TYA30 All-electric (Champion Edition Lead-acid batteries) |
TYA30 All-electric (Champion Lithium battery) |
|
2 |
Power form |
|
Electrical |
Electrical |
|
|
3 |
Operation |
|
Pedestrian |
Pedestrian |
|
|
4 |
Load |
kg |
3000 |
3000 |
|
|
5 |
Load center distance |
mm |
600 |
600 |
|
|
6 |
Wheelbase |
mm |
1230/1300 |
1230/1300 |
|
|
Weight |
7 |
Self weight with battery |
kg |
212 |
185 |
|
Wheel |
8 |
Wheel Type |
|
Front rubber, rear PU/nylon |
Front rubber, rear PU/nylon |
|
9 |
Driving wheel size (diameter×width) |
mm |
φ350×100 |
φ350×100 |
|
|
10 |
Load-bearing wheel size (diameter×width) |
mm |
φ80×70/60 |
φ80×70/60 |
|
|
11 |
Number of wheels Drive side / Load side |
|
1/4 |
1/4 |
|
|
Basic size |
12 |
Maximum height of fork |
mm |
200 |
200 |
|
13 |
Lifting stroke |
mm |
115 |
115 |
|
|
14 |
Minimum height of fork (±2mm) |
mm |
85 |
85 |
|
|
15 |
Fork outer distance |
mm |
550/685 |
550/685 |
|
|
16 |
Fork inner distance |
mm |
250/385,240/365 |
250/385,240/365 |
|
|
17 |
Length of forks |
mm |
1150/1220 |
1150/1220 |
|
|
18 |
Width of forks |
mm |
150/160 |
150/160 |
|
|
19 |
Thickness of forks |
mm |
60 |
60 |
|
|
20 |
Overall width |
mm |
570/685 |
570/685 |
|
|
22 |
Overall height without handle |
mm |
770 |
770 |
|
|
22 |
Overall length |
mm |
1780 |
1780 |
|
|
23 |
Overall height with handle |
mm |
1260 |
1260 |
|
|
24 |
Turning Radius |
mm |
1550 |
1550 |
|
|
Capability |
25 |
Travel speed, laden/unladen |
km/h |
4/4.5 |
4/4.5 |
|
26 |
)Lifting speed, laden/unladen |
mm/s |
15/19 |
15/19 |
|
|
27 |
Maximum climbing grade, laden/unladen |
% |
8/16 |
8/16 |
|
|
28 |
Brake type |
|
Electronic brake / electromagnetic brake |
Electronic brake / electromagnetic brake |
|
|
Motor / Battery |
29 |
Rated power of driving motor |
kw |
1.0 |
1.0 |
|
30 |
Rated power of lifting motor |
kw |
0.8 |
0.8 |
|
|
31 |
Battery |
V/Ah |
48/32 |
48/20 |
|
|
32 |
Battery weight |
kg |
36 |
10 |
Feature And Application
TianyuLux is a professional Full Electric Pallet Jack factory in China, suitable for construction sites and some wet and complex links. Our pallet trucks are widely used in construction sites. We have fully upgraded our products for complex and harsh working conditions such as construction sites.
TianyuLux adopts "sealed steel plate battery compartment cover", full surround design, comprehensive protection of internal electrical circuits, thickened steel plate is strong and resistant to smashing and falling, dustproof, waterproof and collision-proof, greatly reducing the failure rate, making the product more stable.
Innovative patented "low fork" design, obtained the national new utility invention patent. Ordinary pallet trucks can only carry pallets with a height of ≥80mm, while our design allows pallet trucks to carry pallets with a height of ≥65mm, greatly enhancing the practicality of the product, and some low pallets can also be carried very easily.

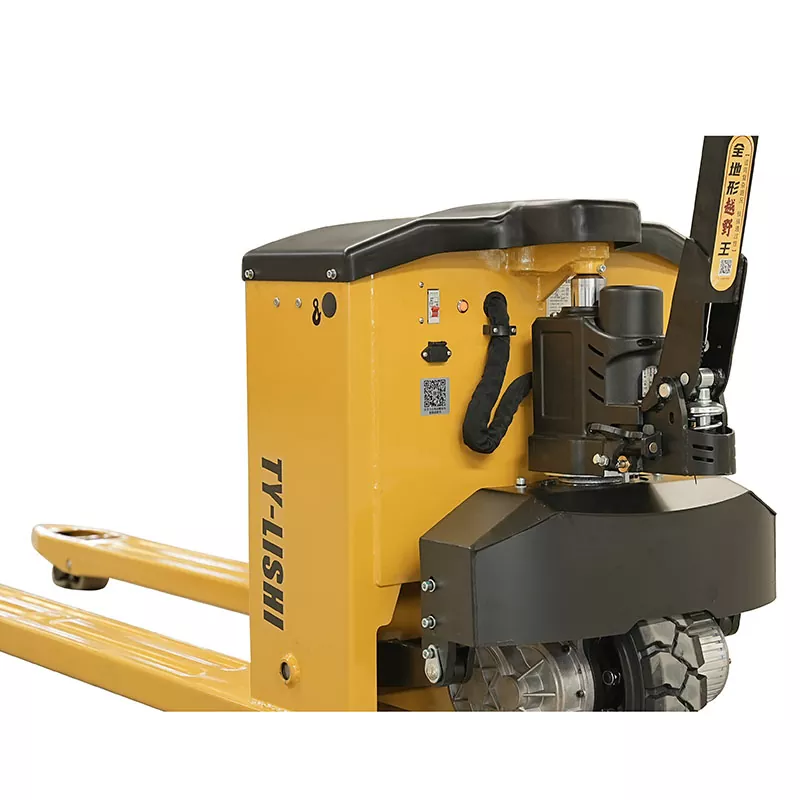

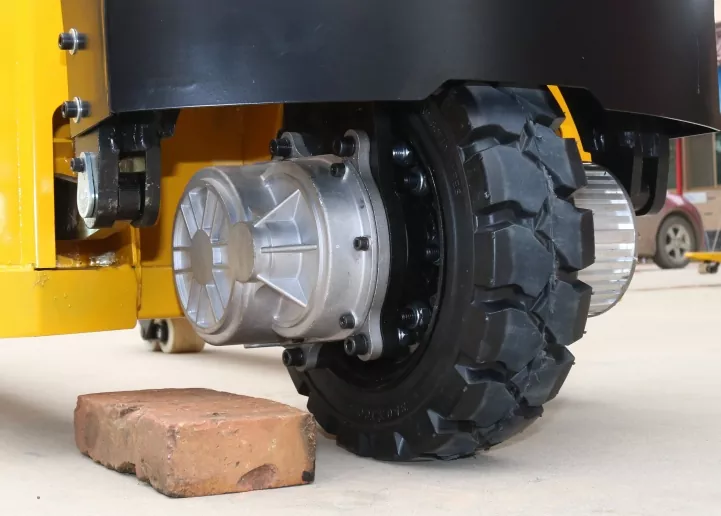

The drive assembly adopts a waterproof and dustproof design, which can reduce the failure rate in harsh environments, thereby increasing the overall service life of the pallet truck, with less sales and after-sales pressure and more customer praise.
The powerful 1kW motor provides huge power, which is very easy to climb or cross potholes at the construction site, saving manpower and material resources and improving work efficiency.
We use a fully sealed, high-speed ratio, large modulus, and high-torque gearbox that can provide strong power in complex and harsh environments and easily cope with steep slopes.

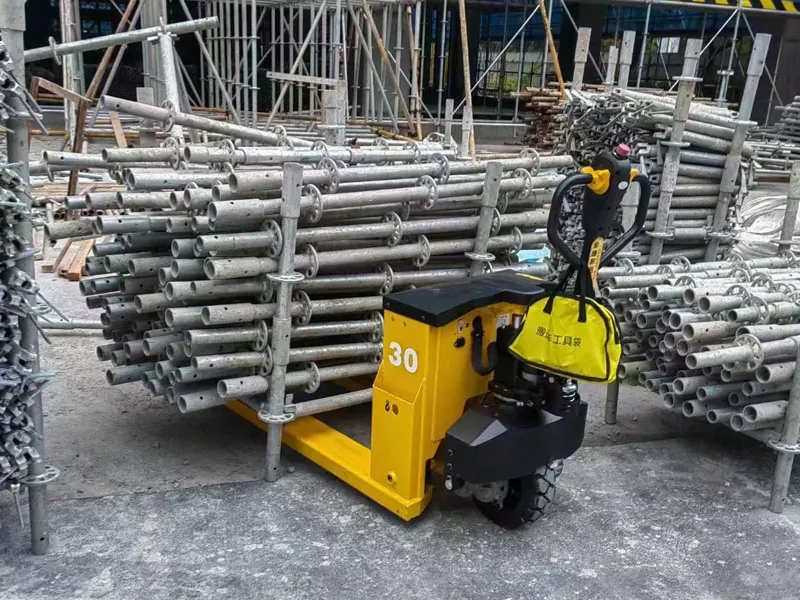

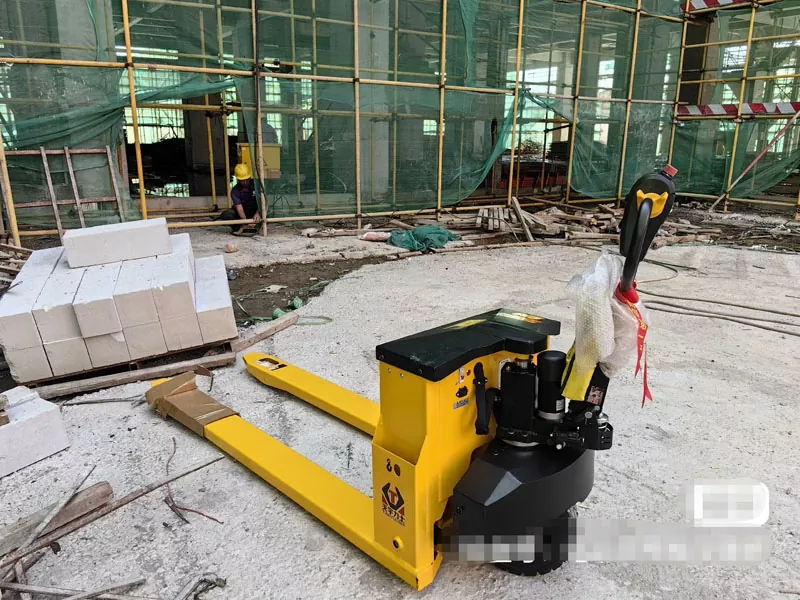

Construction sites

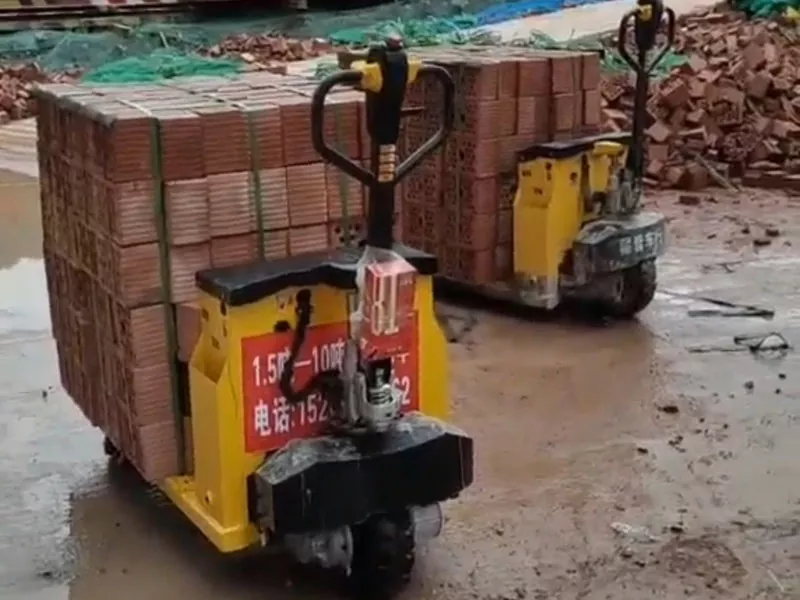

Muddy road

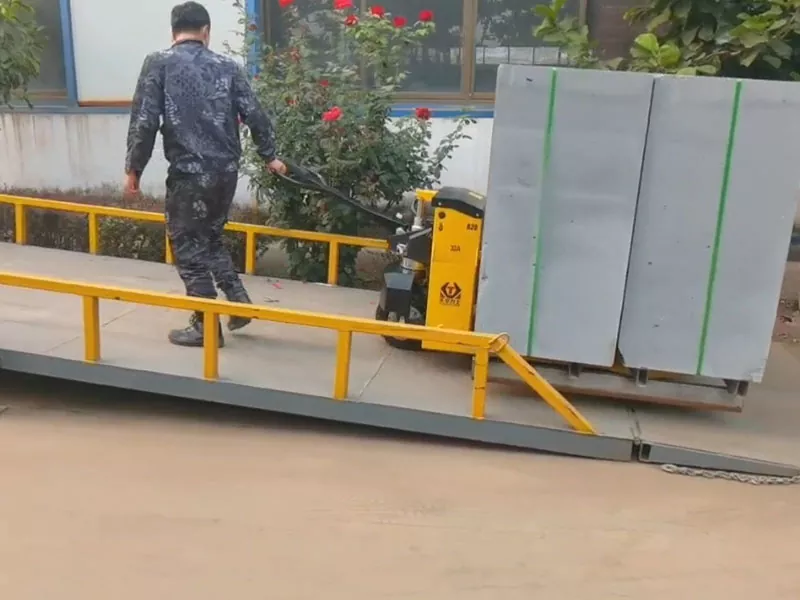

Steep slope
Gravel road surface
Details

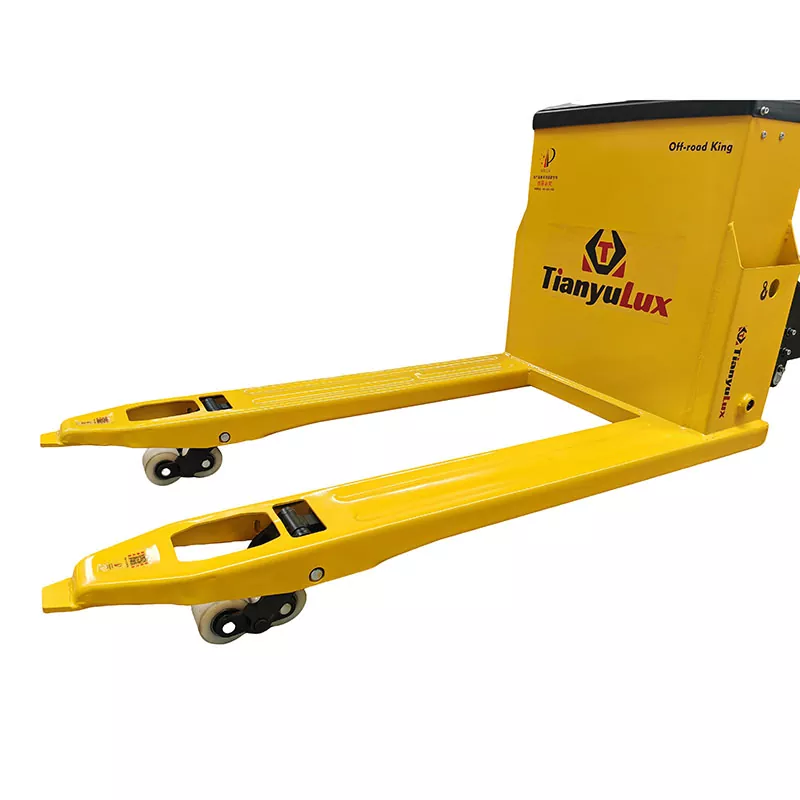

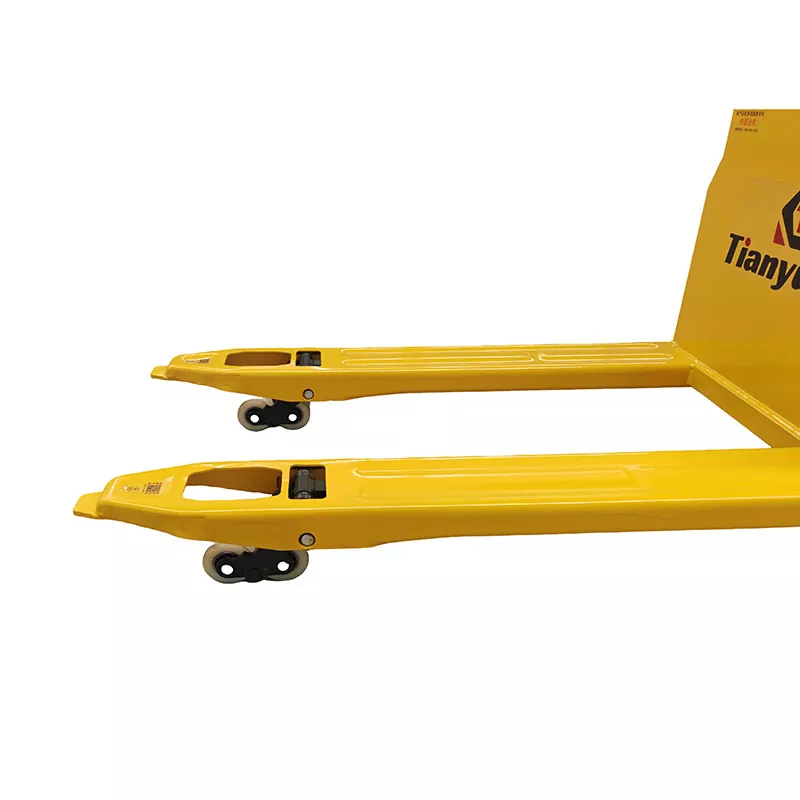

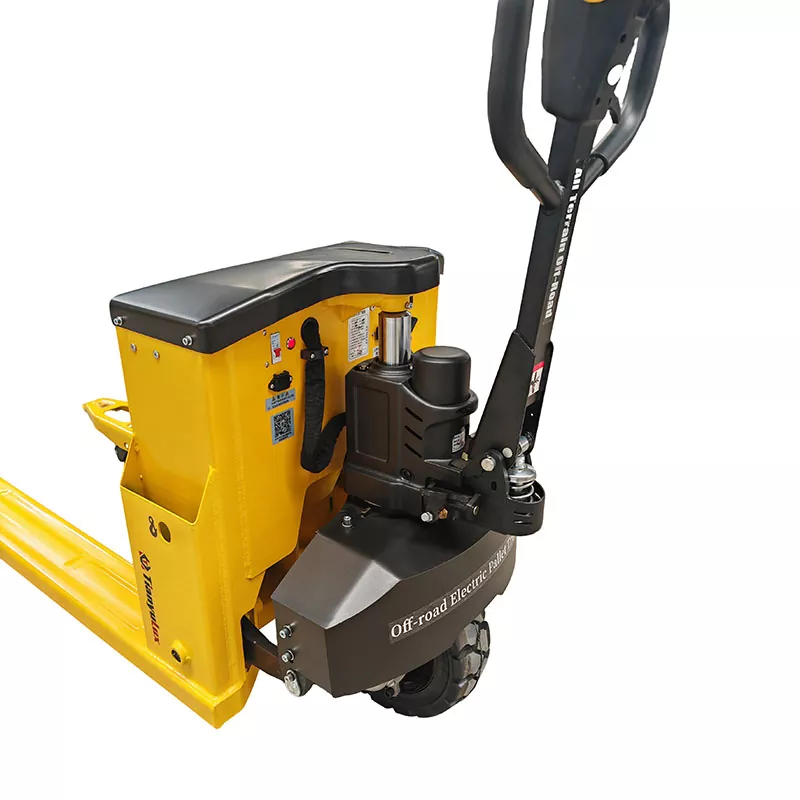

The Full Electric Pallet Jack independently developed by TianyuLux has a very durable drive assembly, is waterproof and dustproof, and has thick forks that are more wear-resistant and not easily bent by heavy cargo. The one-piece stamped forks are stronger and have a greater carrying capacity.
Our Factory
TianyuLux has more than 100 off-road electric pallet truck production personnel, 3 production lines, more than 20 R&D personnel, more than 30 machining equipment, several large laser cutting machines, several stamping equipment, several robotic arm welding equipment, etc.
