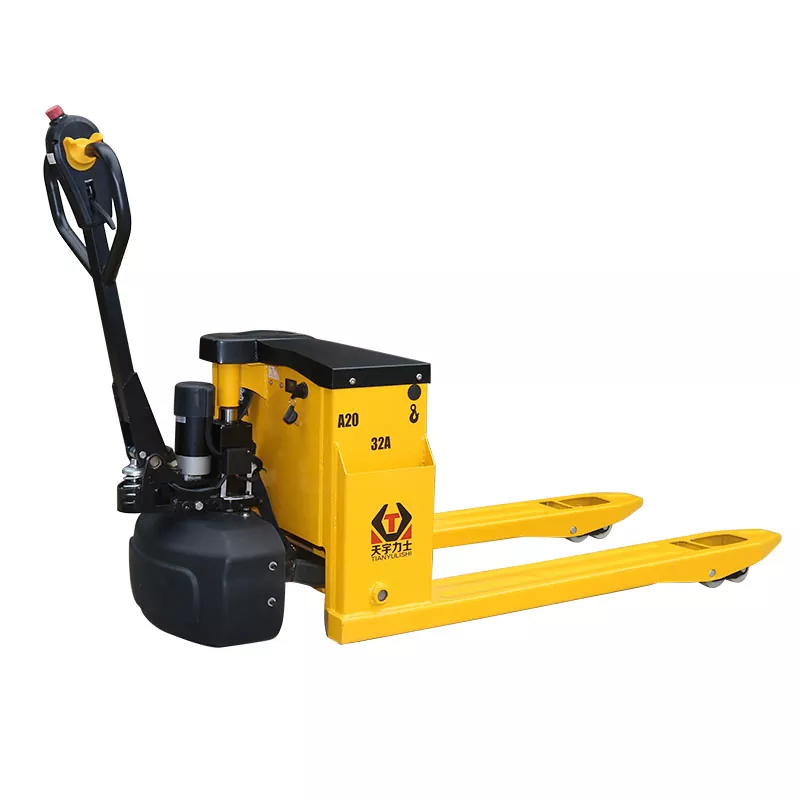

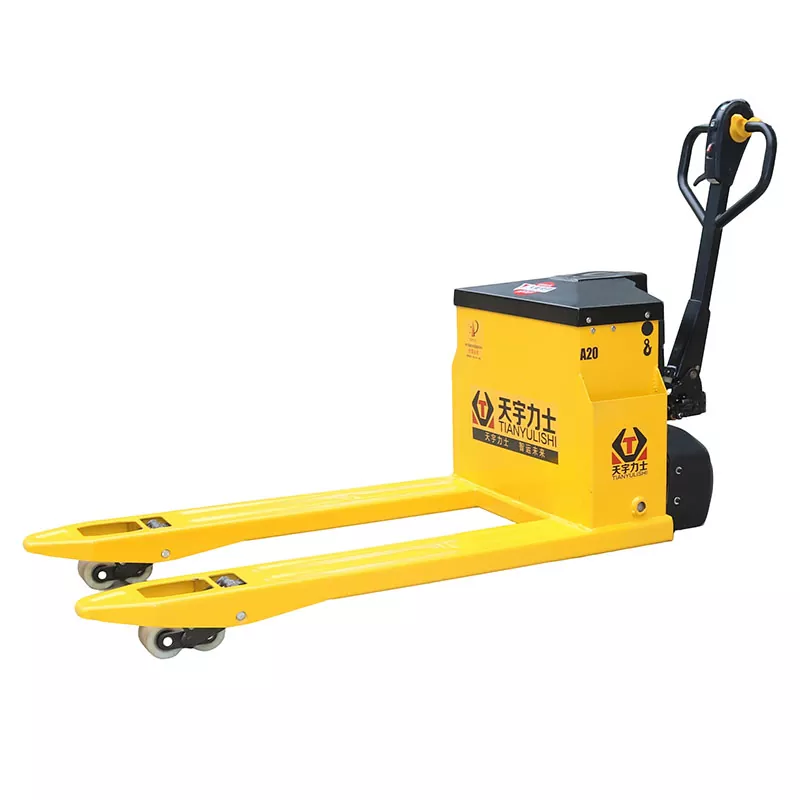

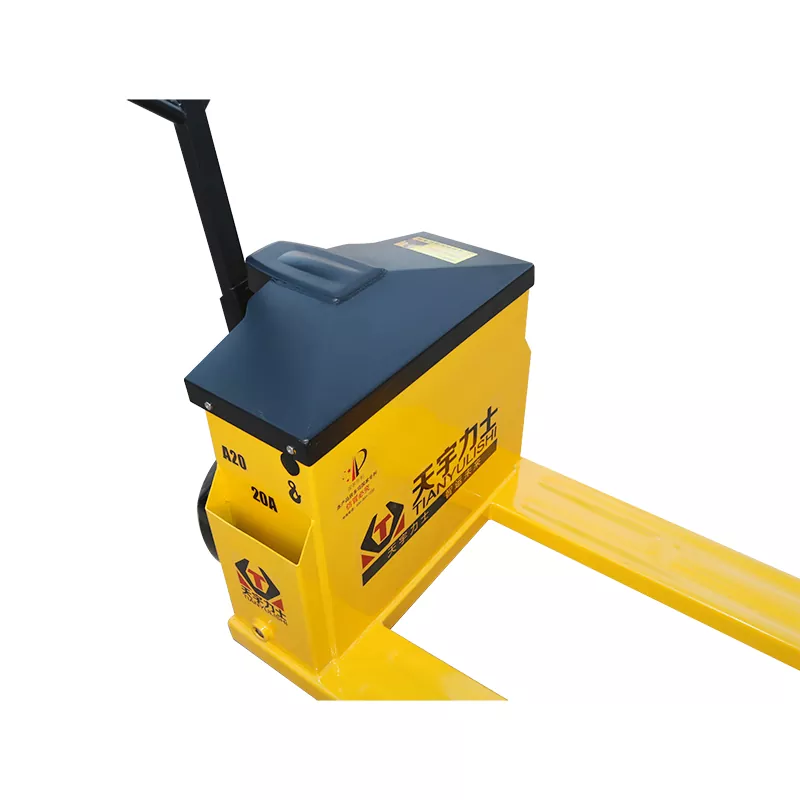

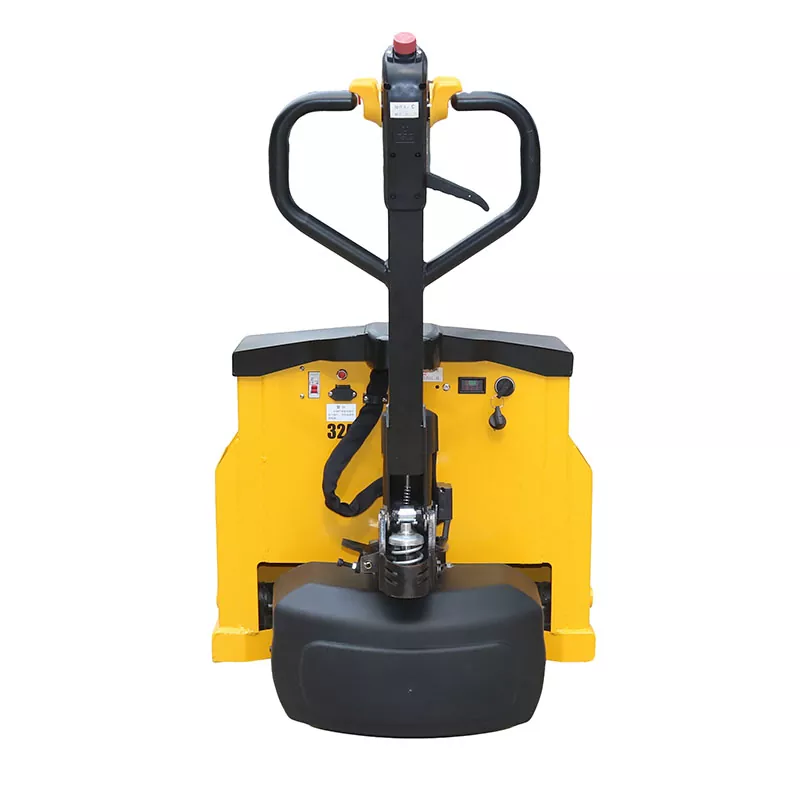

2000kg Electric Pallet Jack
TianyuLux is one of the premier 2000kg Electric Pallet Jack suppliers and manufacturers in China. We have been focusing on forklift and pallet truck equipment for many years. Our products are very suitable for warehouses, cargo distribution centers, supermarket storage, etc. that require high-frequency handling and precise operation. Welcome to place an order!
This TianyuLux 2000kg Electric Pallet Jack is a very cost-effective product. Our Electric Pallet Jack is equipped with a 48V large-capacity battery, which has a significantly longer working time than the traditional 24V battery, and is suitable for continuous operation or long-term work. The 800W permanent magnet brushless DC high-power motor has low noise and strong power, and can easily climb a 3° to 8° slope with a full load. The fully sealed design can make the motor last longer and increase customer satisfaction. Our products have CE certification and have obtained ISO9001 international quality management system certification during the production process. TianyuLux 2000kg electric pallet truck is a good choice for moving goods in factory warehouses.
Parameter (Specification)
|
Features |
1 |
Model |
|
A20 Fully Electric (Little Lux) |
A20 Semi-electric (Little Lux) |
|
2 |
Power form |
|
Electrical |
Electrical |
|
|
3 |
Operation |
|
Pedestrian |
Pedestrian |
|
|
4 |
Load |
kg |
2000 |
2000 |
|
|
5 |
Load center distance |
mm |
600 |
600 |
|
|
6 |
Wheelbase |
mm |
1250/1280 |
1250/1280 |
|
|
Weight |
7 |
Self weight with battery |
kg |
158 |
158 |
|
Wheel |
8 |
Wheel Type |
|
Front rubber, rear PU/nylon |
Front rubber, rear PU/nylon |
|
9 |
Driving wheel size (diameter×width) |
mm |
φ160×50 |
φ160×50 |
|
|
10 |
Load-bearing wheel size (diameter×width) |
mm |
φ80×70/60 |
φ80×70/60 |
|
|
11 |
Number of wheels Drive side / Load side |
|
1/4 |
1/4 |
|
|
Basic size |
12 |
Maximum height of fork |
mm |
200 |
200 |
|
13 |
Lifting stroke |
mm |
115 |
115 |
|
|
14 |
Minimum height of fork (±2mm) |
mm |
85 |
85 |
|
|
15 |
Fork outer distance |
mm |
550/685 |
550/685 |
|
|
16 |
Fork inner distance |
mm |
250/385，230/365 |
250/385，230/365 |
|
|
17 |
Length of forks |
mm |
1150/1220 |
1150/1220 |
|
|
18 |
Width of forks |
mm |
150 /160 |
150 /160 |
|
|
19 |
Thickness of forks |
mm |
60 |
60 |
|
|
20 |
Overall width |
mm |
560/685 |
560/685 |
|
|
22 |
Overall height without handle |
mm |
650 |
650 |
|
|
22 |
Overall length |
mm |
1780 |
1780 |
|
|
23 |
Overall height with handle |
mm |
1240 |
1240 |
|
|
24 |
Turning Radius |
mm |
1460 |
1460 |
|
|
Capability |
25 |
Travel speed, laden/unladen |
km/h |
4/4.5 |
4/4.5 |
|
26 |
Lifting speed, laden/unladen |
mm/s |
22/33 |
|
|
|
27 |
Maximum climbing grade, laden/unladen |
% |
8/16 |
8/16 |
|
|
28 |
Brake type |
|
Electronic brake / electromagnetic brake |
Electronic brake / electromagnetic brake |
|
|
Motor / Battery |
29 |
Rated power of driving motor |
kw |
0.8 |
|
|
30 |
Rated power of lifting motor |
kw |
0.8 |
|
|
|
31 |
Lead-acid Battery |
V/Ah |
48/20 |
48/20 |
|
|
32 |
Battery weight |
kg |
24 |
24 |
Feature And Application
TianyuLux is a professional 2000kg Electric Pallet Jack factory in China. Our pallet trucks have a wide range of applications. Pallet Jack has a compact size and a small turning radius, which is particularly suitable for operations in narrow storage aisles and between shelves, and can improve space utilization.
Heavy-duty one-piece cylinder, the cylinder structure is more solid, can withstand greater pressure and load, and avoids the joint weaknesses that may occur in traditional welded cylinders. The thickened 40mm cylinder rod not only enhances the bending and tensile resistance, but also improves the load capacity of the cylinder, adapting to long-term high-intensity working environments. The higher safety factor enables the cylinder to remain stable during heavy-load operations, reducing the risk of failure and damage.

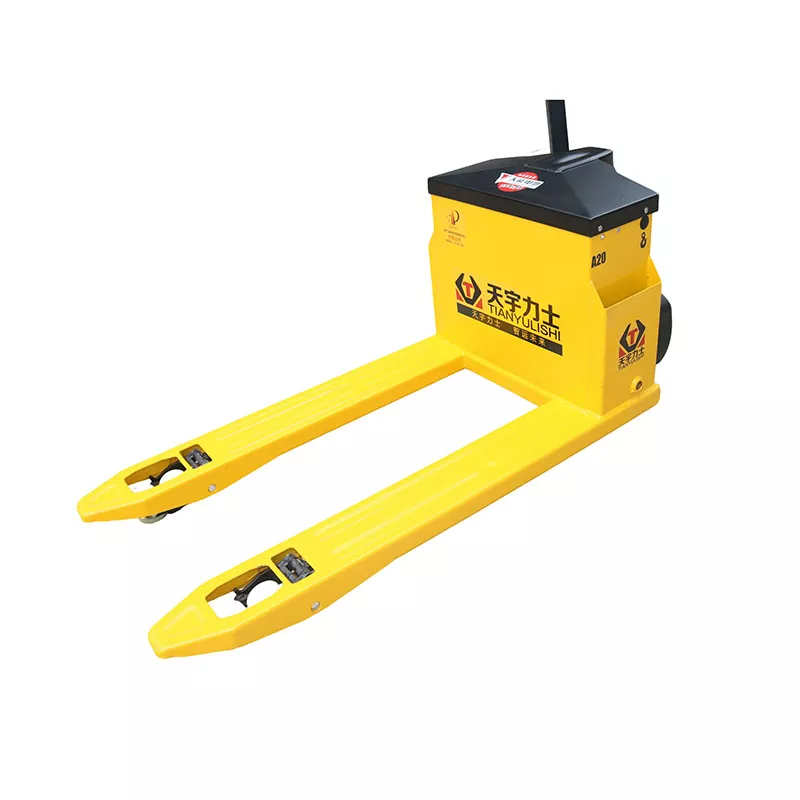

The pallet truck fork is made of an integrated stamping and stretching process, avoiding the joint weaknesses that may be caused by traditional welding methods. The entire fork is made of a piece of steel plate through a stamping and stretching process, which not only improves the strength of the fork, but also ensures its uniform thickness and structural stability, and also extends its service life.
The one-piece molding technology makes the overall structure of the fork stronger and able to withstand higher weights. Even under long-term high-load operation, the fork is not easy to deform or break, ensuring the stability and safety of the pallet truck.
Application Scenario
Building materials factory
Chemical Plant
Flour Mill
Parts processing plant
Details

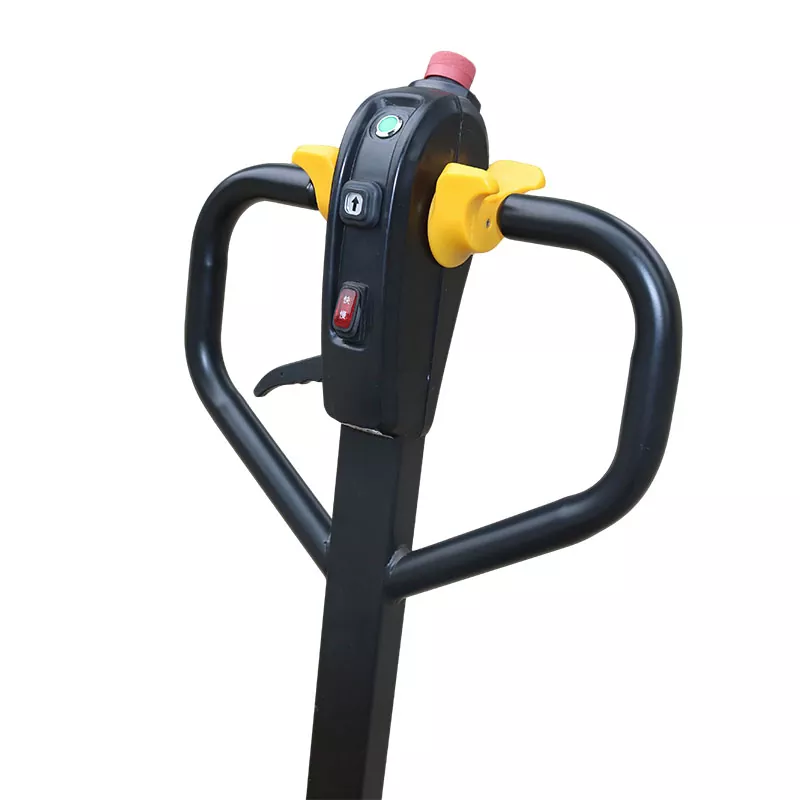

The 2000kg Electric Pallet Jack independently developed by TianyuLux has won the recognition of customers with its super high cost performance and excellent quality. The patented acceleration handle has the "quadruple protection" function of waterproof, dustproof, shockproof and scald-proof.
Our Factory
TianyuLux has more than 100 off-road electric pallet truck production personnel, 3 production lines, more than 20 R&D personnel, more than 30 machining equipment, several large laser cutting machines, several stamping equipment, several robotic arm welding equipment, etc.
