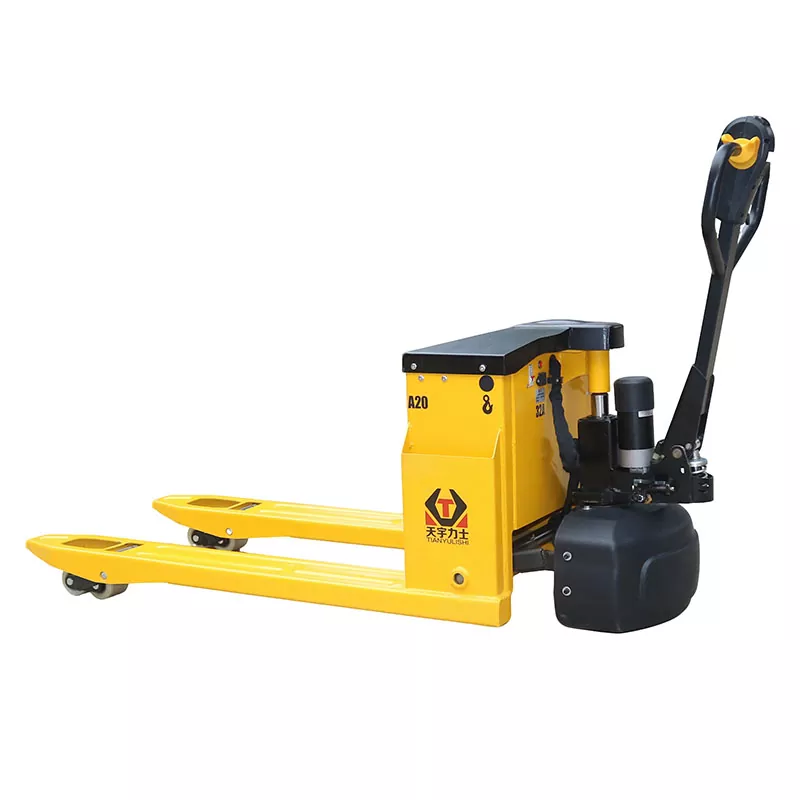

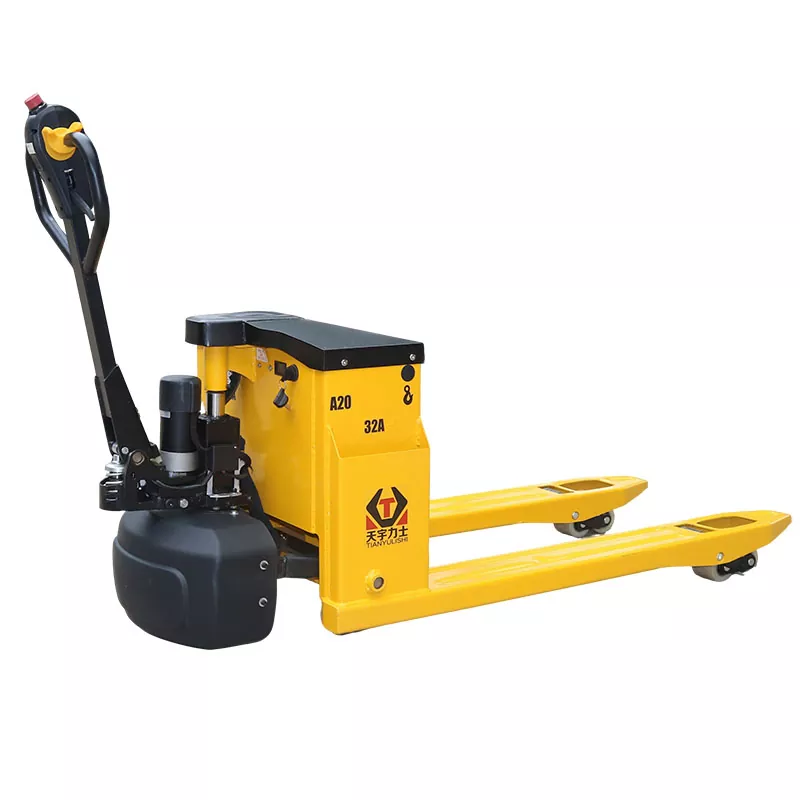

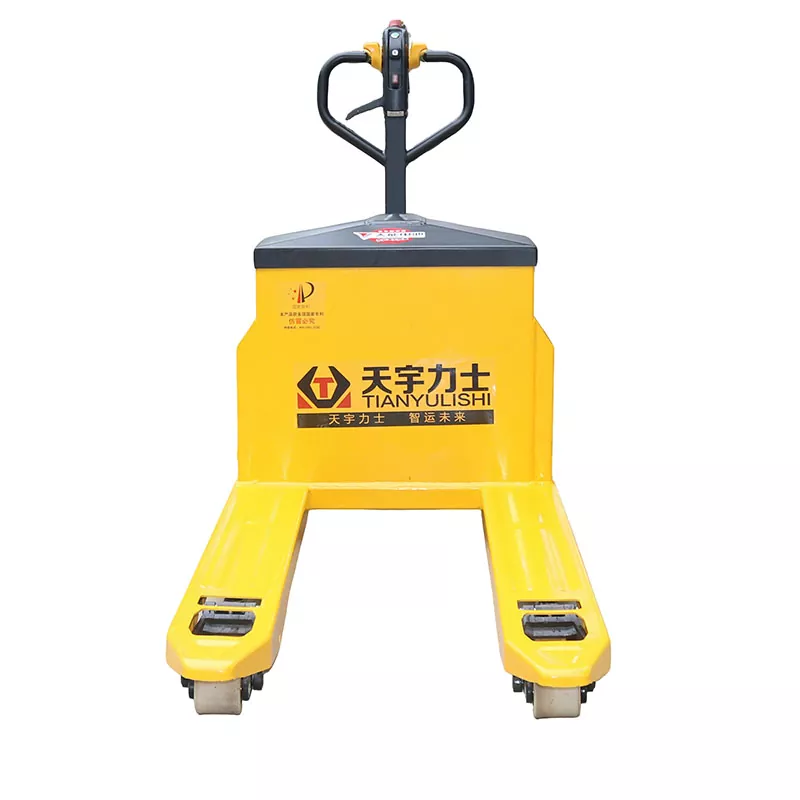

2000kg Electric Pallet Truck
TianyuLux is a China manufacturer with rich production experience in producing 2000kg Electric Pallet Truck. We have focused on forklift and pallet truck equipment for many years. Our products have high load capacity and good quality and price advantages, suitable for a range of applications from flat warehouses to rugged construction sites. We enjoy a reputation of quality, ethics and service.

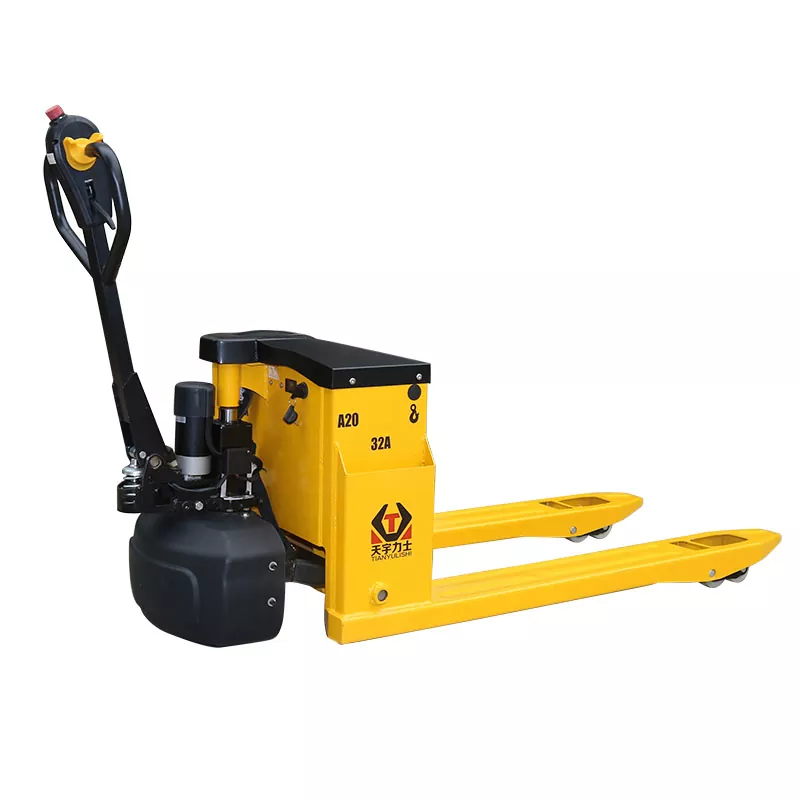

This TianyuLux 2000kg Electric Pallet Truck is a very cost-effective product.
The design load capacity reaches 2000kg, and it can actually easily carry 2500kg without any problem, and can easily handle common cargo weights. In various warehouses or production environments, transporting bulk goods is no longer a problem. Our products have CE certification and have obtained ISO9001 international quality management system certification during the production process. TianyuLux 2000kg Electric Pallet Truck is a good choice for moving goods in factory warehouses.
Parameter (Specification)
|
Features |
1 |
Model |
|
A20 Fully Electric (Little Lux) |
A20 Semi-electric (Little Lux) |
|
2 |
Power form |
|
Electrical |
Electrical |
|
|
3 |
Operation |
|
Pedestrian |
Pedestrian |
|
|
4 |
Load |
kg |
2000 |
2000 |
|
|
5 |
Load center distance |
mm |
600 |
600 |
|
|
6 |
Wheelbase |
mm |
1250/1280 |
1250/1280 |
|
|
Weight |
7 |
Self weight with battery |
kg |
158 |
158 |
|
Wheel |
8 |
Wheel Type |
|
Front rubber, rear PU/nylon |
Front rubber, rear PU/nylon |
|
9 |
Driving wheel size (diameter×width) |
mm |
φ160×50 |
φ160×50 |
|
|
10 |
Load-bearing wheel size (diameter×width) |
mm |
φ80×70/60 |
φ80×70/60 |
|
|
11 |
Number of wheels Drive side / Load side |
|
1/4 |
1/4 |
|
|
Basic size |
12 |
Maximum height of fork |
mm |
200 |
200 |
|
13 |
Lifting stroke |
mm |
115 |
115 |
|
|
14 |
Minimum height of fork (±2mm) |
mm |
85 |
85 |
|
|
15 |

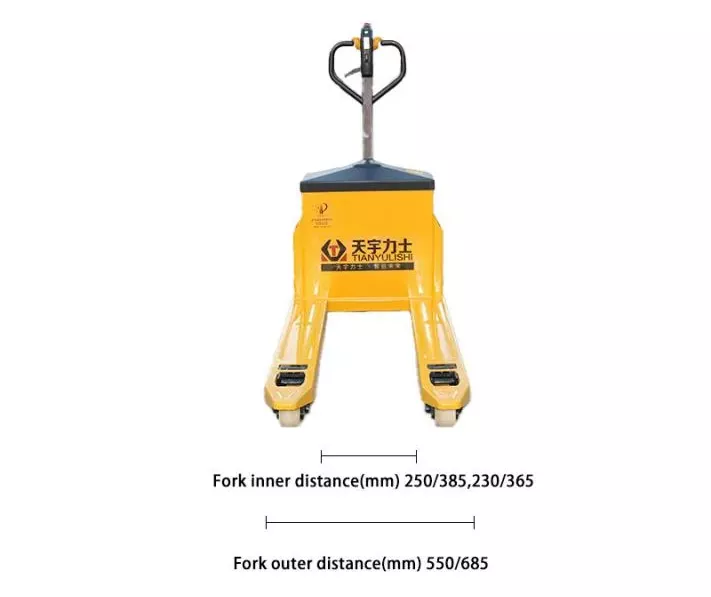

Fork outer distance |
mm |
550/685 |
550/685 |
|
|
16 |
Fork inner distance |
mm |
250/385，230/365 |
250/385，230/365 |
|
|
17 |

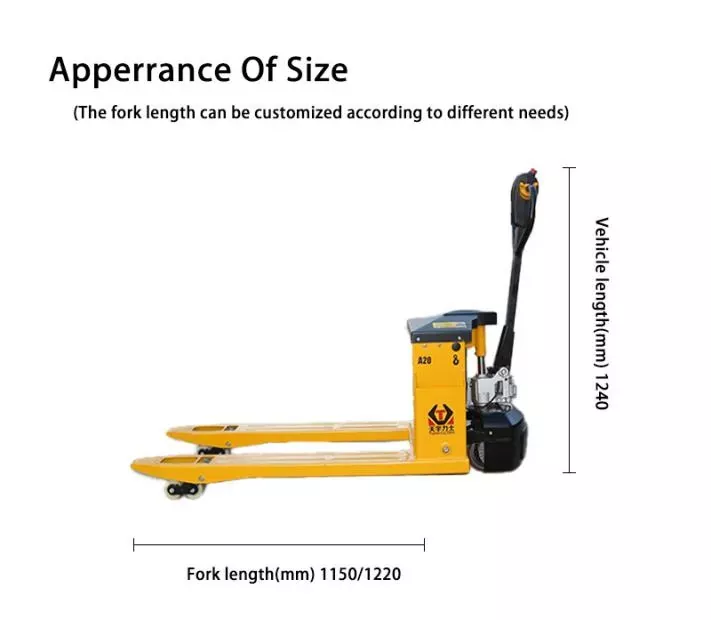

Length of forks |
mm |
1150/1220 |
1150/1220 |
|
|
18 |
Width of forks |
mm |
150 /160 |
150 /160 |
|
|
19 |
Thickness of forks |
mm |
60 |
60 |
|
|
20 |
Overall width |
mm |
560/685 |
560/685 |
|
|
22 |
Overall height without handle |
mm |
650 |
650 |
|
|
22 |
Overall length |
mm |
1780 |
1780 |
|
|
23 |
Overall height with handle |
mm |
1240 |
1240 |
|
|
24 |
Turning Radius |
mm |
1460 |
1460 |
|
|
Capability |
25 |
Travel speed, laden/unladen |
km/h |
4/4.5 |
4/4.5 |
|
26 |
Lifting speed, laden/unladen |
mm/s |
22/33 |
|
|
|
27 |
Maximum climbing grade, laden/unladen |
% |
8/16 |
8/16 |
|
|
28 |
Brake type |
|
Electronic brake / electromagnetic brake |
Electronic brake / electromagnetic brake |
|
|
Motor / Battery |
29 |
Rated power of driving motor |
kw |
0.8 |
|
|
30 |
Rated power of lifting motor |
kw |
0.8 |
|
|
|
31 |
Lead-acid Battery |
V/Ah |
48/20 |
48/20 |
|
|
32 |
Battery weight |
kg |
24 |
24 |
Feature And Application

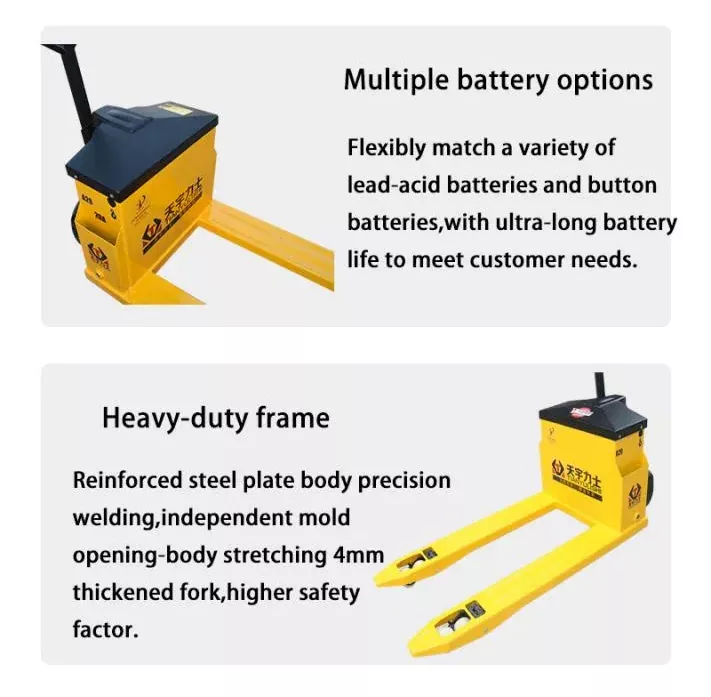

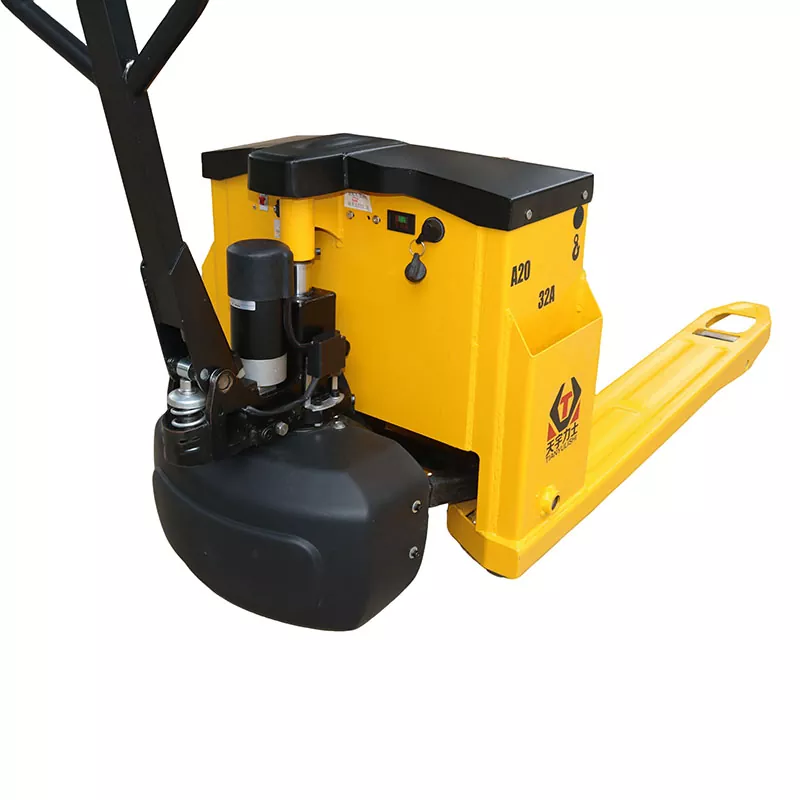

TianyuLux is a professional 2000kg Electric Pallet Truck factory in China. Our pallet trucks have a wide range of applications. The high-strength steel battery compartment can well protect the controller and battery, and the service life is greatly extended.

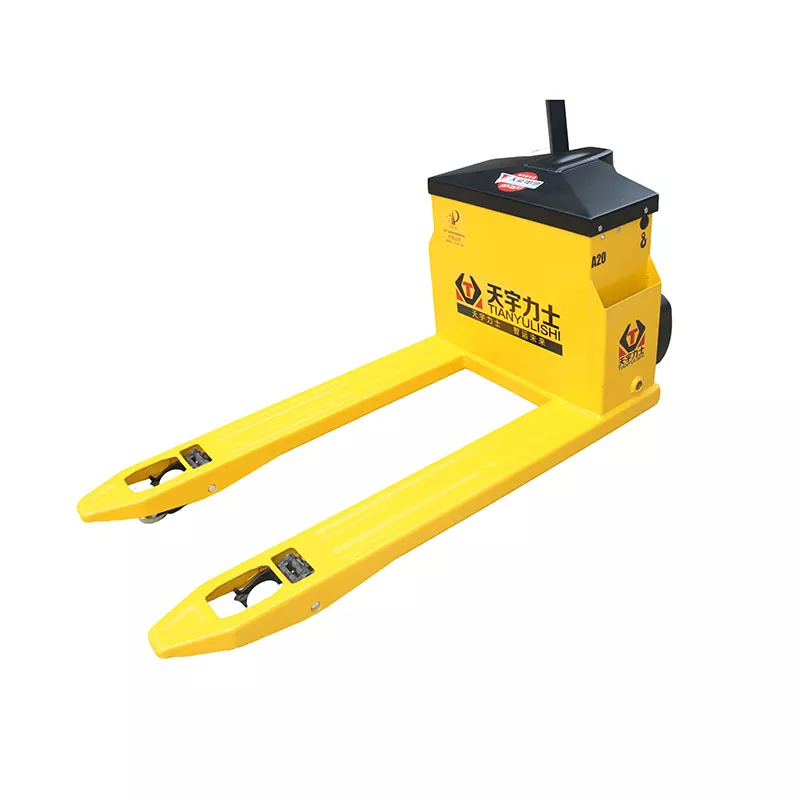

The Pallet Truck fork is made by an integrated stamping and stretching process, avoiding the joint weaknesses that may be caused by traditional welding methods. The entire fork is made of a piece of steel plate through stamping and stretching processes, which not only improves the strength of the fork, but also ensures its uniform thickness and structural stability, and also extends its service life.
The integrated molding technology makes the overall structure of the fork more solid and able to withstand higher weights. Even under long-term high-load operation, the fork is not easy to deform or break, ensuring the stability and safety of the pallet truck.
Application Scenario
Building materials factory
Chemical Plant
Flour Mill
Parts processing plant
Details

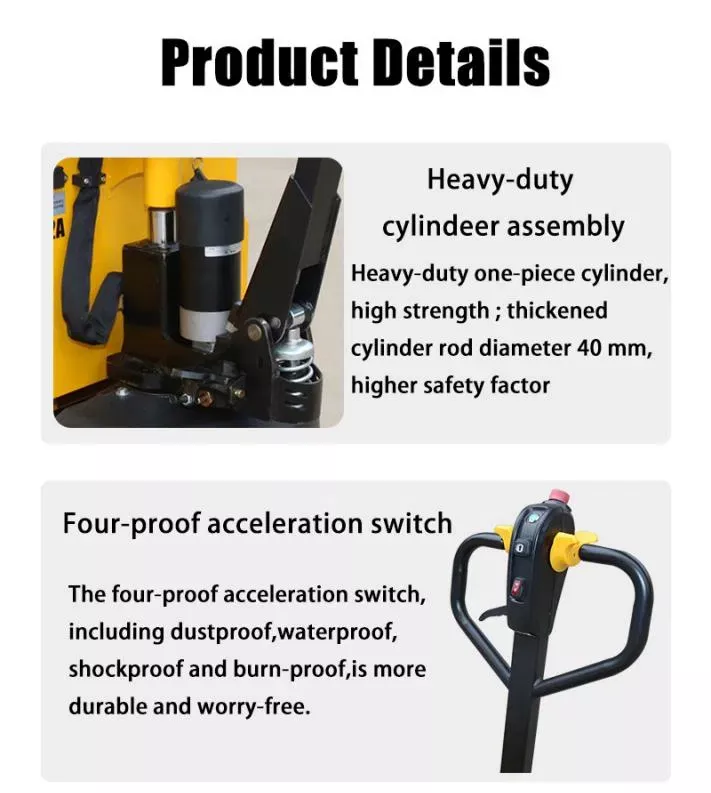

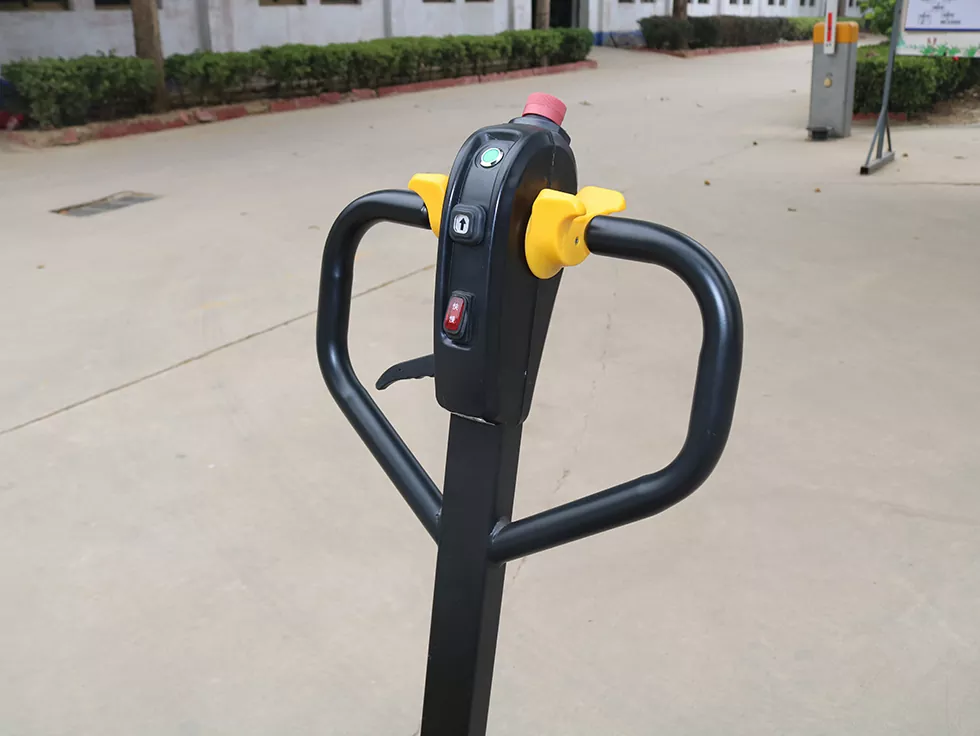

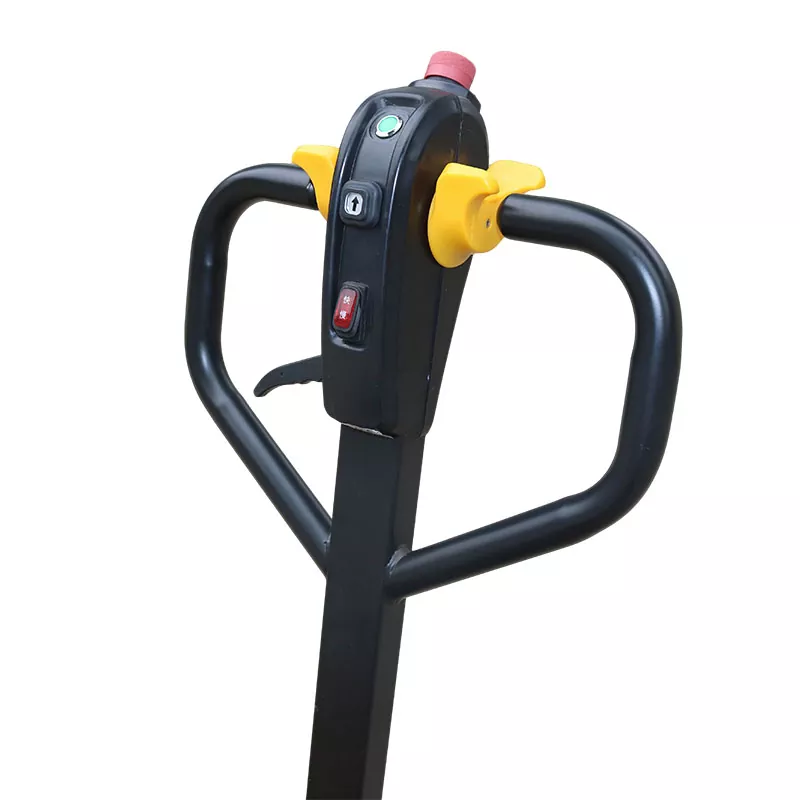

The 2000kg Electric Pallet Truck independently developed by TianyuLux has won the recognition of customers for its high cost performance and excellent quality. The patented acceleration handle with "four protections" is waterproof, dustproof, shockproof and burn-proof.
Our Factory
TianyuLux has more than 100 off-road electric pallet truck production personnel, 3 production lines, more than 20 R&D personnel, more than 30 machining equipment, several large laser cutting machines, several stamping equipment, several robotic arm welding equipment, etc.
