Full Electric Pallet Truck
As the professional manufacturer, we would like to provide you Full Electric Pallet Truck. We have been focusing on forklift and pallet truck equipment for many years. Our products use high-speed lifting cylinder motors, which do not require manual hydraulic lifting forks, saving effort and increasing efficiency. They are suitable for a range of applications from flat warehouses to rugged construction sites. We look forward to being your long-term partner in China.

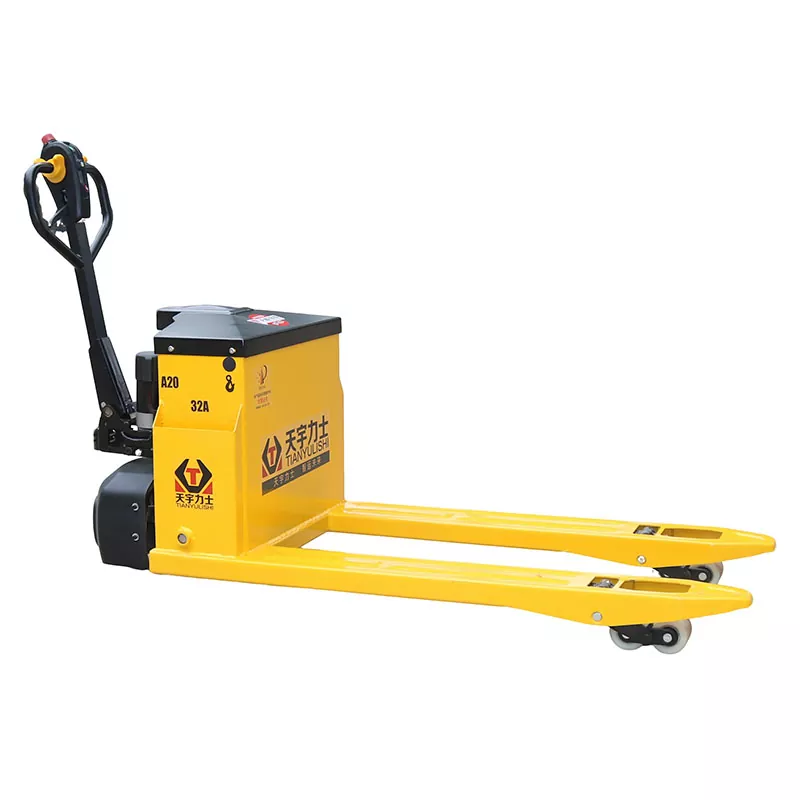

This TianyuLux Full Electric Pallet Truck is a very cost-effective product.
The designed load capacity reaches 2000kg, and it can actually carry 2500kg easily without any problems, and can easily handle common cargo weights. The Full Electric Pallet Truck is operated by an electronic control system. The operator only needs to operate buttons to achieve forward, backward, lifting and other actions, which greatly reduces the physical burden of manual handling and is especially suitable for long-term and high-frequency operations. Our products have CE certification and have obtained ISO9001 international quality management system certification during the production process. TianyuLux Full Electric Pallet Truck is a good choice for moving goods in factory warehouses.
Parameter (Specification)
|
Features |
1 |
Model |
|
A20 Fully Electric (Little Lux) |
A20 Semi-electric (Little Lux) |
|
2 |
Power form |
|
Electrical |
Electrical |
|
|
3 |
Operation |
|
Pedestrian |
Pedestrian |
|
|
4 |
Load |
kg |
2000 |
2000 |
|
|
5 |
Load center distance |
mm |
600 |
600 |
|
|
6 |
Wheelbase |
mm |
1250/1280 |
1250/1280 |
|
|
Weight |
7 |
Self weight with battery |
kg |
158 |
158 |
|
Wheel |
8 |
Wheel Type |
|
Front rubber, rear PU/nylon |
Front rubber, rear PU/nylon |
|
9 |
Driving wheel size (diameter×width) |
mm |
φ160×50 |
φ160×50 |
|
|
10 |
Load-bearing wheel size (diameter×width) |
mm |
φ80×70/60 |
φ80×70/60 |
|
|
11 |
Number of wheels Drive side / Load side |
|
1/4 |
1/4 |
|
|
Basic size |
12 |
Maximum height of fork |
mm |
200 |
200 |
|
13 |
Lifting stroke |
mm |
115 |
115 |
|
|
14 |
Minimum height of fork (±2mm) |
mm |
85 |
85 |
|
|
15 |

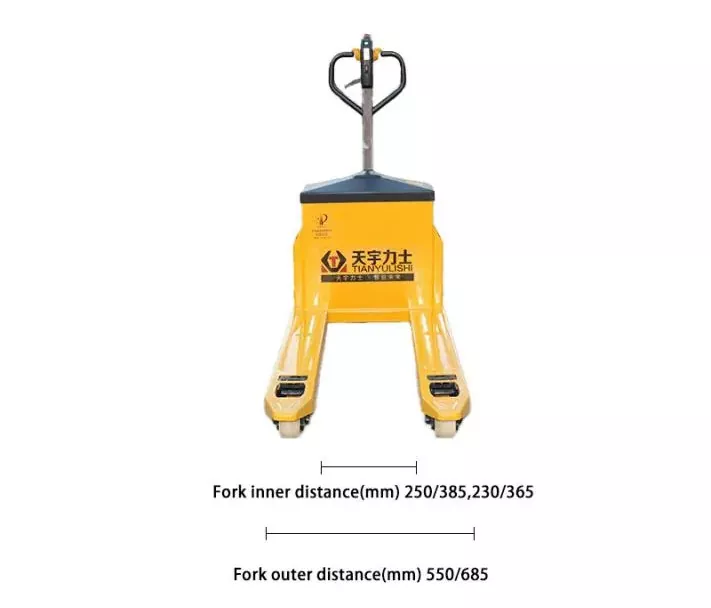

Fork outer distance |
mm |
550/685 |
550/685 |
|
|
16 |
Fork inner distance |
mm |
250/385，230/365 |
250/385，230/365 |
|
|
17 |

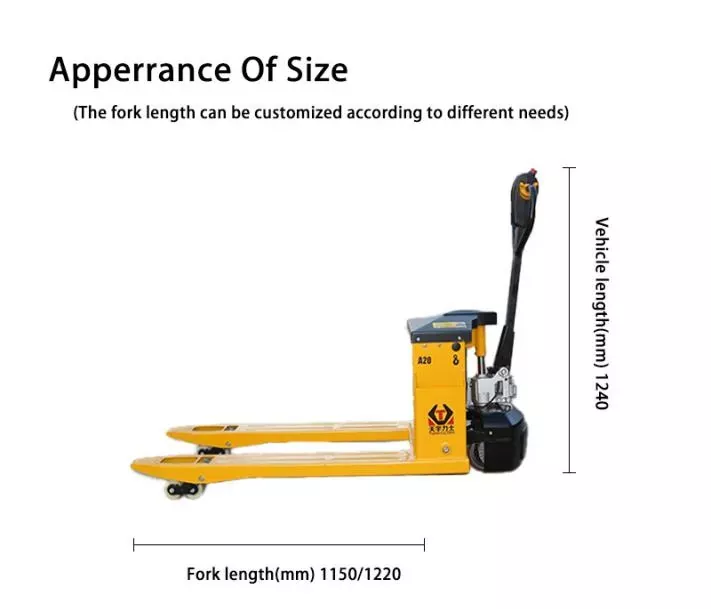

Length of forks |
mm |
1150/1220 |
1150/1220 |
|
|
18 |
Width of forks |
mm |
150 /160 |
150 /160 |
|
|
19 |
Thickness of forks |
mm |
60 |
60 |
|
|
20 |
Overall width |
mm |
560/685 |
560/685 |
|
|
22 |
Overall height without handle |
mm |
650 |
650 |
|
|
22 |
Overall length |
mm |
1780 |
1780 |
|
|
23 |
Overall height with handle |
mm |
1240 |
1240 |
|
|
24 |
Turning Radius |
mm |
1460 |
1460 |
|
|
Capability |
25 |
Travel speed, laden/unladen |
km/h |
4/4.5 |
4/4.5 |
|
26 |
Lifting speed,laden/unladen |
mm/s |
22/33 |
|
|
|
27 |
Maximum climbing grade, laden/unladen |
% |
8/16 |
8/16 |
|
|
28 |
Brake type |
|
Electronic brake / electromagnetic brake |
Electronic brake / electromagnetic brake |
|
|
Motor / Battery |
29 |
Rated power of driving motor |
kw |
0.8 |
|
|
30 |
Rated power of lifting motor |
kw |
0.8 |
|
|
|
31 |
Lead-acid Battery |
V/Ah |
48/20 |
48/20 |
|
|
32 |
Battery weight |
kg |
24 |
24 |
Feature And Application

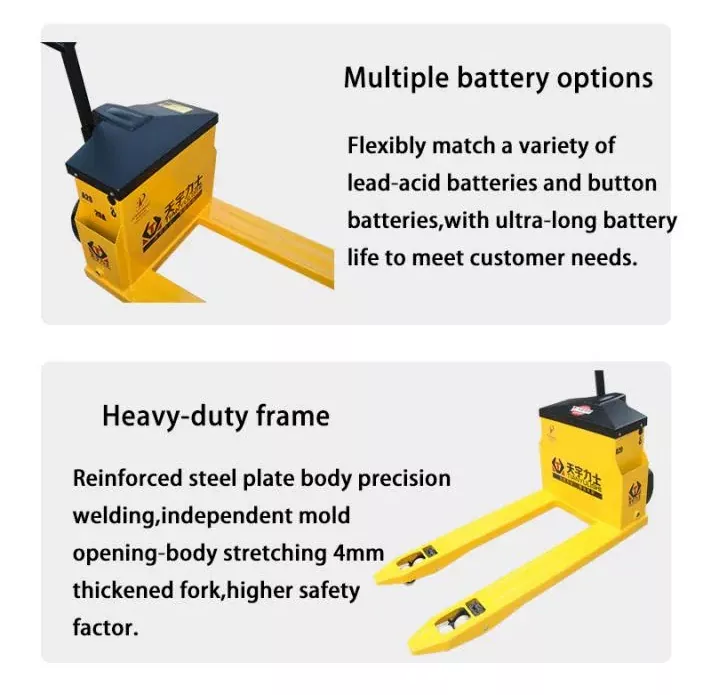

TianyuLux is a professional 2000kg electric pallet truck factory in China. Our pallet trucks have a wide range of applications. The high-strength steel battery compartment can well protect the controller and battery, and the service life is greatly extended.
TianyuLux Full Electric Pallet Truck adopts a reinforced steel plate body and undergoes a robotic arm automatic welding process to ensure the high strength and stability of the body structure. The reinforced steel plate body effectively improves the impact resistance and wear resistance of the equipment, can withstand the test of high loads and long-term use, avoids the risk of loose joints or broken welding points that may occur in traditional welding processes, and ensures the long-term service life and safety of the body.
This combination of thickened, precision-designed forks and reinforced steel plate bodies not only enhances the overall strength and safety of the Pallet Truck, but also greatly improves the stability during operation, ensuring that the operator has higher safety during handling. Whether in factories, warehouses or logistics centers, TianyuLux Full Electric Pallet Truck can complete the work easily and safely.

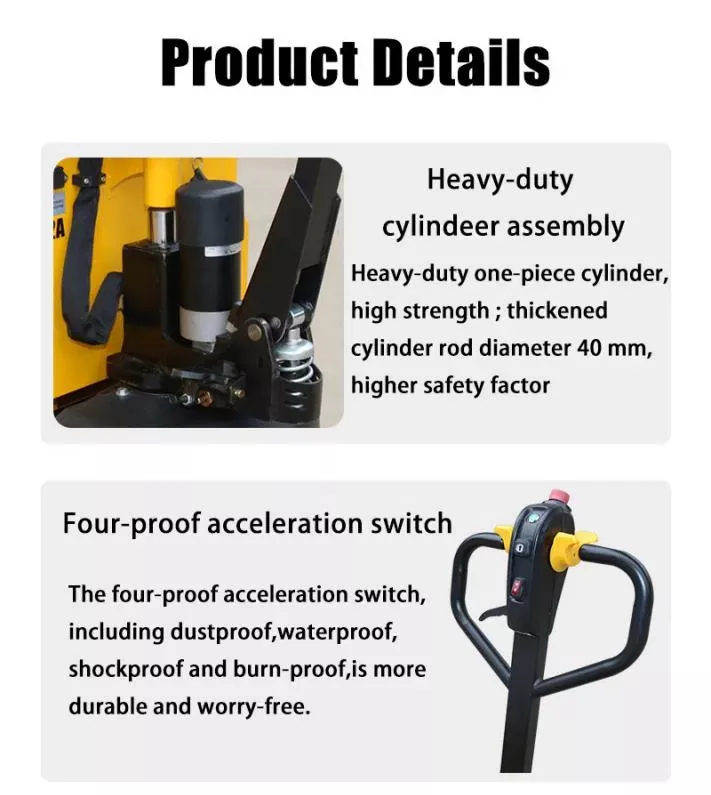

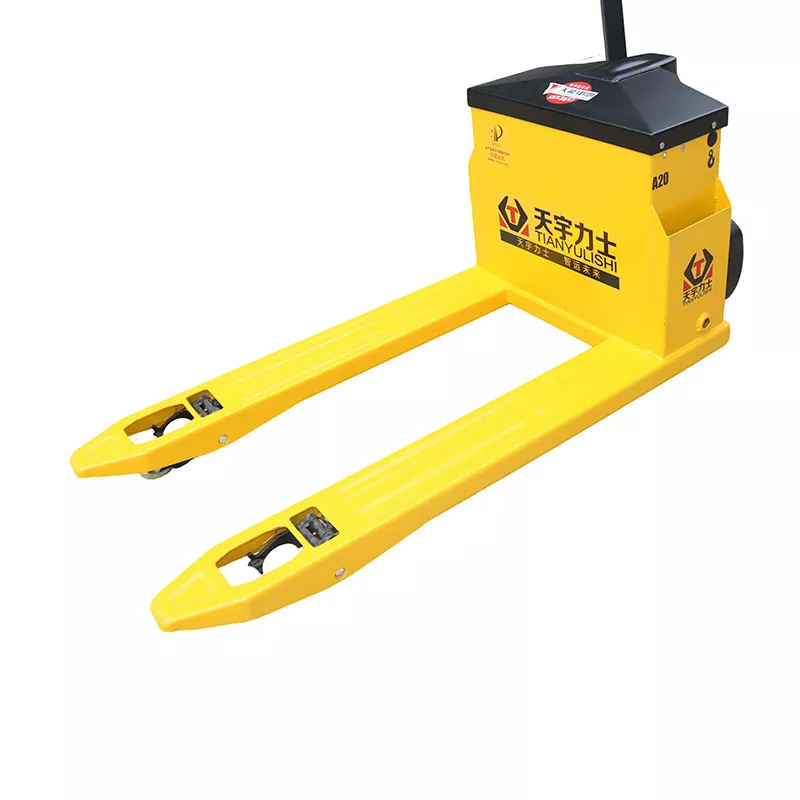

The one-piece molding technology makes the overall structure of the fork stronger and able to withstand higher weights. Even under long-term high-load operation, the fork is not easy to deform or break, ensuring the stability and safety of the pallet truck.
Application Scenario
Building materials factory
Chemical Plant
Flour Mill
Parts processing plant
Details

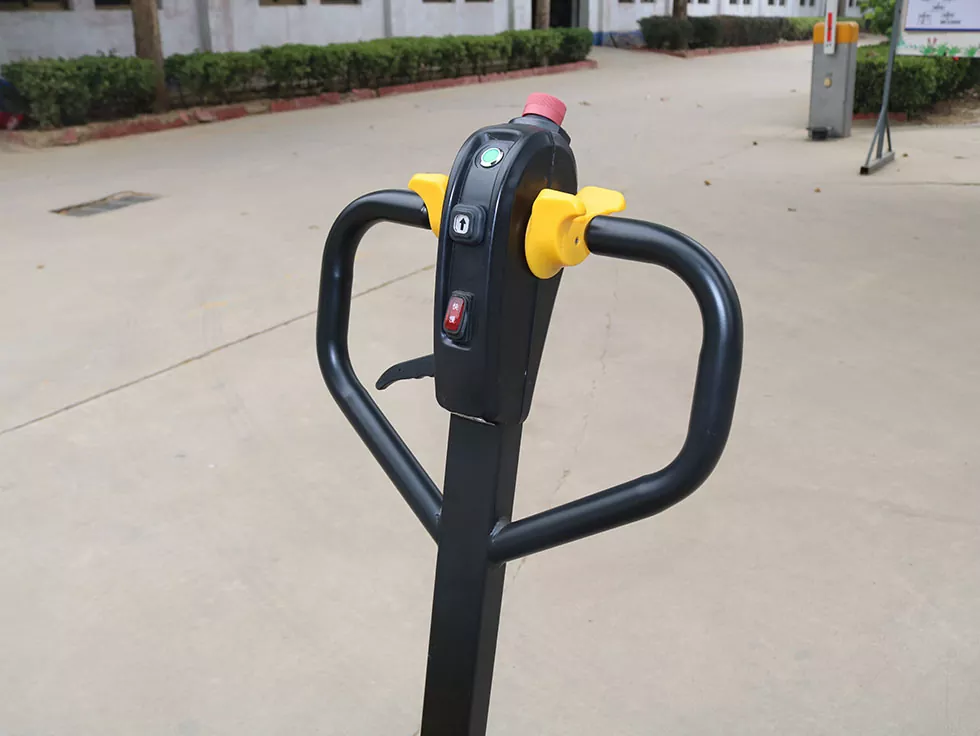

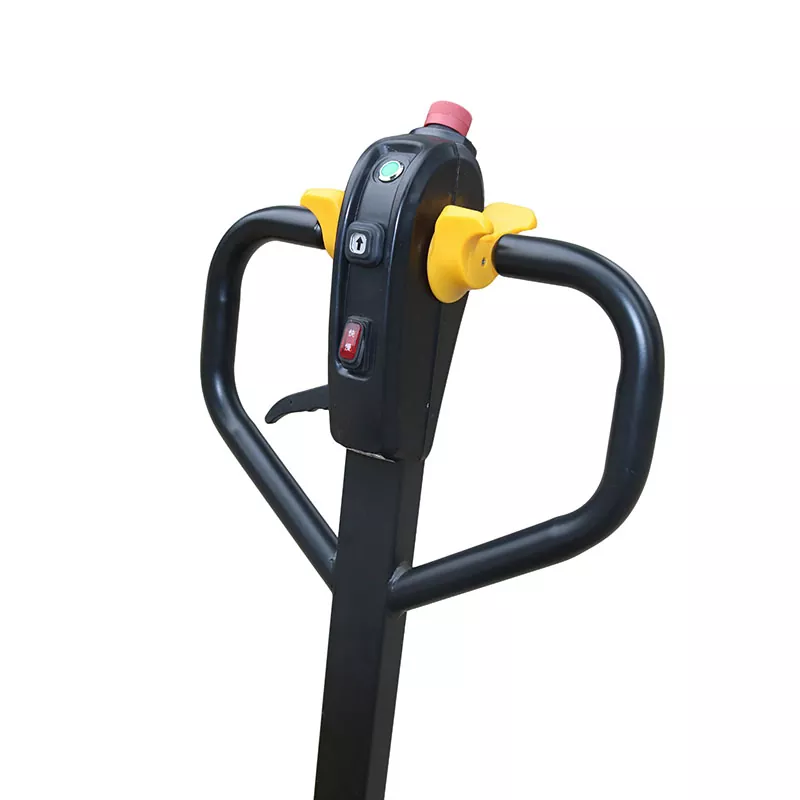

The Full Electric Pallet Truck independently developed by TianyuLux has won recognition from customers for its super high cost-effectiveness and excellent quality. With its strong carrying capacity, user-friendly operating handle, high safety and durable structural design, it has become an ideal choice for modern warehousing, logistics and manufacturing plants.
Our Factory
TianyuLux has more than 100 off-road electric pallet truck production personnel, 3 production lines, more than 20 R&D personnel, more than 30 machining equipment, several large laser cutting machines, several stamping equipment, several robotic arm welding equipment, etc.
