Weighing Scale Electric Pallet Jack
TianyuLux is a large Weighing Scale Electric Pallet Jack manufacturer & supplier & producer in China with weighing printing label. We have been focusing on forklift equipment for many years. Our pallet trucks can accurately weigh the transported goods and print weight labels, and the weighing electronic meter has the function of waterproof. Our sales cover more than 50 countries and regions around the world. We look forward to being your long-term partner in China.

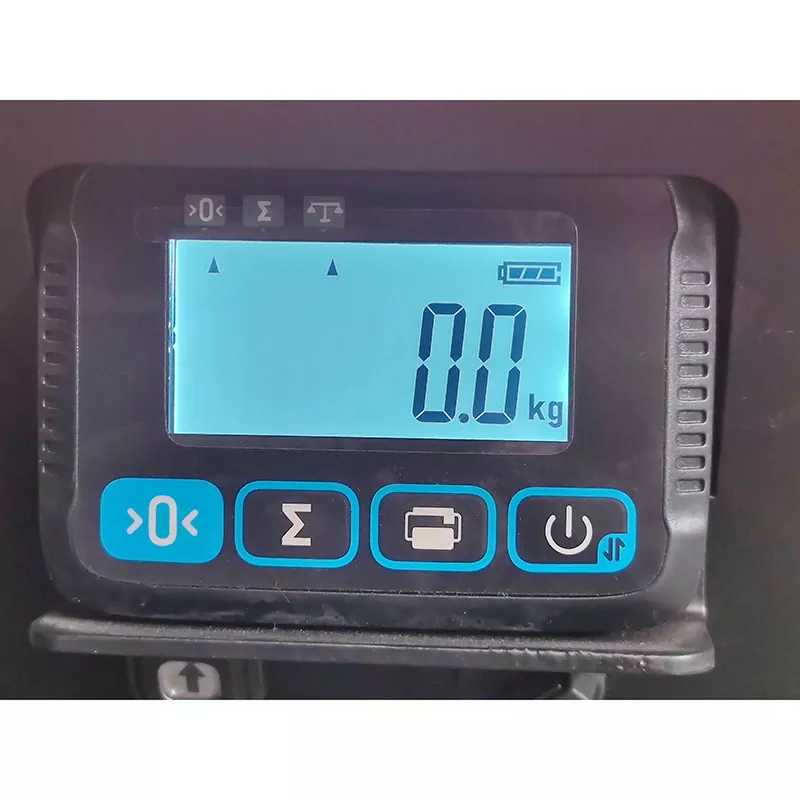

This TianyuLux weighing scale electric pallet Jack with printing labels is a new product that can weigh and print labels for the transported goods. Our pallet trucks have built-in high-precision electronic scales that can monitor the weight of the goods in real time, ensuring that the operator accurately understands the weight of the goods when moving the goods, reducing manual calculation errors. And our display instrument is waterproof, it can be used in logistics parks, warehouses, factories, and even complex construction sites and wet cold storage. Our products have CE certification and have obtained ISO9001 international quality management system certification during the production process. TianyuLux electronic scale electric pallet truck with weighing and printing labels is a good helper for you to open up new markets and improve your competitiveness.
Parameter (Specification)
|
Features |
1 |
Model |
|
TYA30 All-electric (Electric Scale Lead-acid batteries) |
TYA30 All-electric (Electric Scale Lithium battery) |
|
2 |
Power form |
|
Electrical |
Electrical |
|
|
3 |
Operation |
|
Pedestrian |
Pedestrian |
|
|
4 |
Load |
kg |
2500 |
2500 |
|
|
5 |
Load center distance |
mm |
600 |
600 |
|
|
6 |
Wheelbase |
mm |
1230/1300 |
1230/1300 |
|
|
Weight |
7 |
Self weight with battery |
kg |
212 |
185 |
|
Wheel |
8 |
Wheel Type |
|
Front rubber, rear PU/nylon |
Front rubber, rear PU/nylon |
|
9 |
Driving wheel size (diameter×width) |
mm |
φ350×100 |
φ350×100 |
|
|
10 |
Load-bearing wheel size (diameter×width) |
mm |
φ80×70/60 |
φ80×70/60 |
|
|
11 |
Number of wheels Drive side / Load side |
|
1/4 |
1/4 |
|
|
Basic size |
12 |
Maximum height of fork |
mm |
200 |
200 |
|
13 |
Lifting stroke |
mm |
115 |
115 |
|
|
14 |
Minimum height of fork (±2mm) |
mm |
85 |
85 |
|
|
15 |
Fork outer distance |
mm |
550/685 |
550/685 |
|
|
16 |
Fork inner distance |
mm |
250/385,240/365 |
250/385,240/365 |
|
|
17 |
Length of forks |
mm |
1150/1220 |
1150/1220 |
|
|
18 |
Width of forks |
mm |
150/160 |
150/160 |
|
|
19 |
Thickness of forks |
mm |
60 |
60 |
|
|
20 |
Overall width |
mm |
570/685 |
570/685 |
|
|
22 |
Overall height without handle |
mm |
770 |
770 |
|
|
22 |
Overall length |
mm |
1780 |
1780 |
|
|
23 |
Overall height with handle |
mm |
1260 |
1260 |
|
|
24 |
Turning Radius |
mm |
1550 |
1550 |
|
|
Capability |
25 |
Travel speed, laden/unladen |
km/h |
4/4.5 |
4/4.5 |
|
26 |
Lifting speed, laden/unladen |
mm/s |
15/19 |
15/19 |
|
|
27 |
Maximum climbing grade, laden/unladen |
% |
8/16 |
8/16 |
|
|
28 |
Brake type |
|
Electronic brake / electromagnetic brake |
Electronic brake / electromagnetic brake |
|
|
Motor / Battery |
29 |
Rated power of driving motor |
kw |
1.0 |
1.0 |
|
30 |
Rated power of lifting motor |
kw |
0.8 |
0.8 |
|
|
31 |
Battery |
V/Ah |
48/32 |
48/20 |
|
|
32 |
Battery weight |
kg |
36 |
10 |
Feature And Application
TianyuLux is a professional Weighing Scale Electric Pallet Jack factory in China. Our pallet trucks are equipped with high-precision electronic scales, which can monitor the weight of goods in real time, combine cargo handling and weighing, and improve work efficiency.
1. The instrument and Pallet Jack power supply are connected, powered by a large battery, and have a long battery life. Most models on the market have small batteries for the instrument alone, which have short battery life, short service life, and high failure rate.

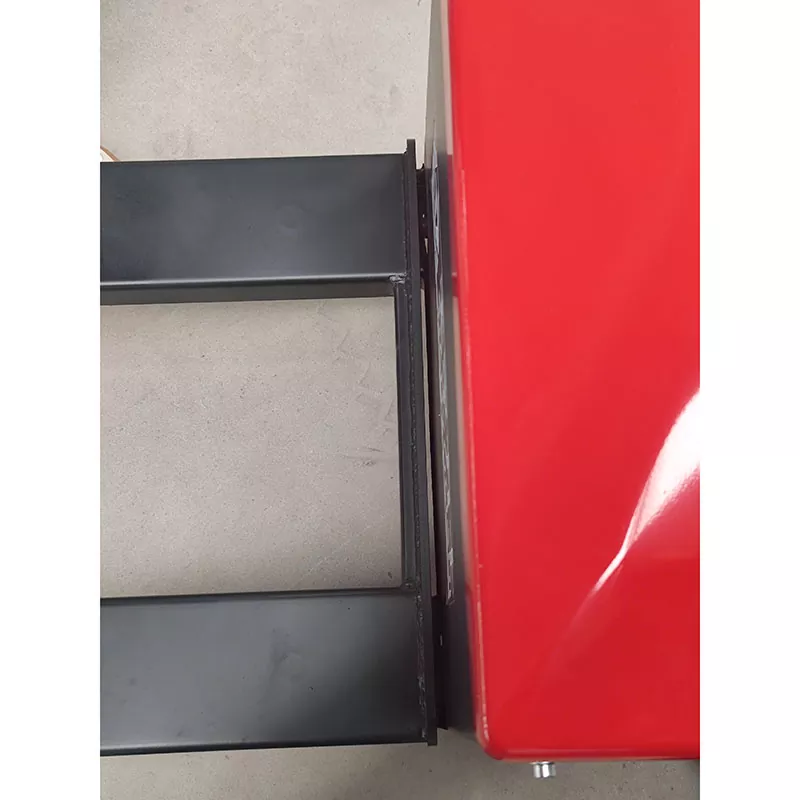

2. The thickness of the fork steel plate is 6mm, which makes weighing more accurate, and can also carry heavier goods with a longer service life.
3. The fully surrounded sealed battery compartment cover prevents dust, debris and water from entering; the thickened fine steel plate can withstand external impact, protect the electrical components from damage, and reduce the failure rate.
4. The integrated design of the electronic scale and the electric pallet truck reduces the waste of equipment and space, and is particularly suitable for storage environments with limited space.
Application Scenario
Construction sites
metal processing plants
stone processing plants
flour mills
Details

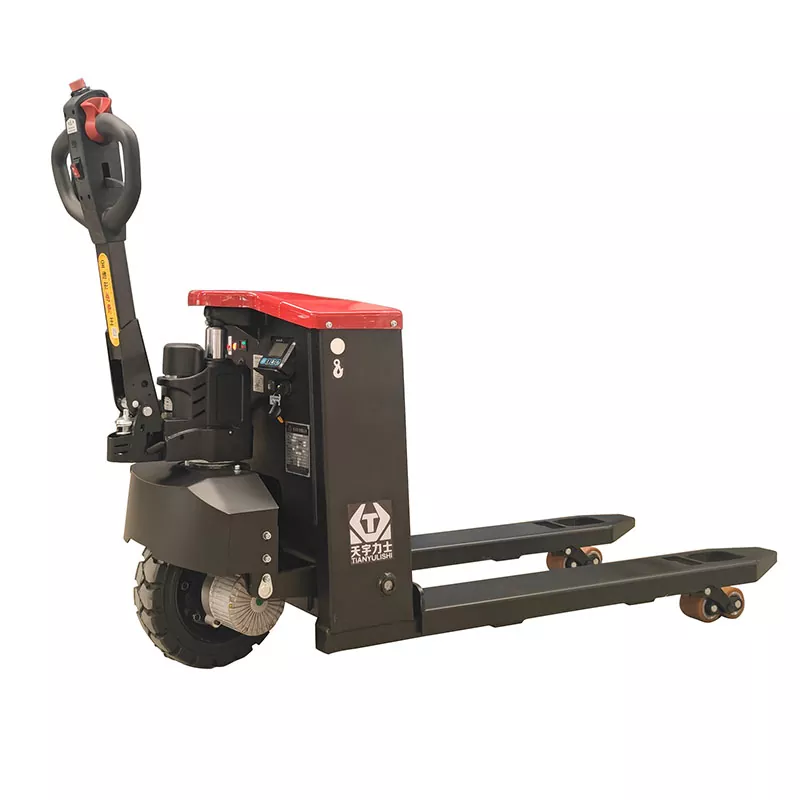

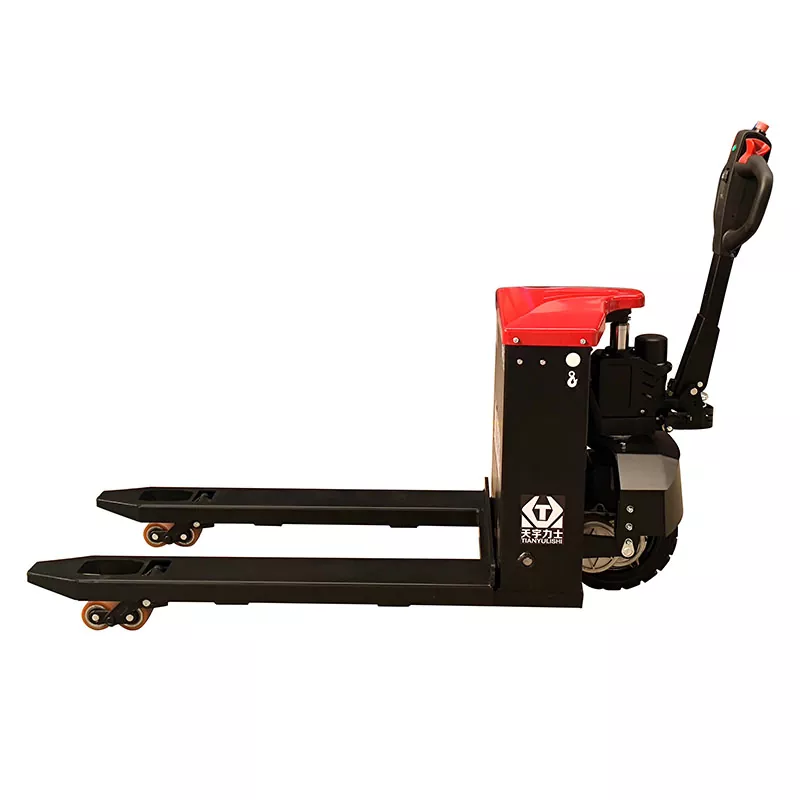

TianyuLux's innovatively developed Weighing Scale Electric Pallet Jack cleverly combines an electronic scale with an off-road pallet truck, reducing the waste of equipment and space, and is particularly suitable for storage environments with limited space. It is suitable for various complex environments, including food factories, metal processing plants, cold storage and other places that require precise weighing.
Our Factory
TianyuLux has more than 100 off-road electric pallet truck production personnel, 3 production lines, more than 20 R&D personnel, more than 30 machining equipment, several large laser cutting machines, several stamping equipment, several robotic arm welding equipment, etc.
