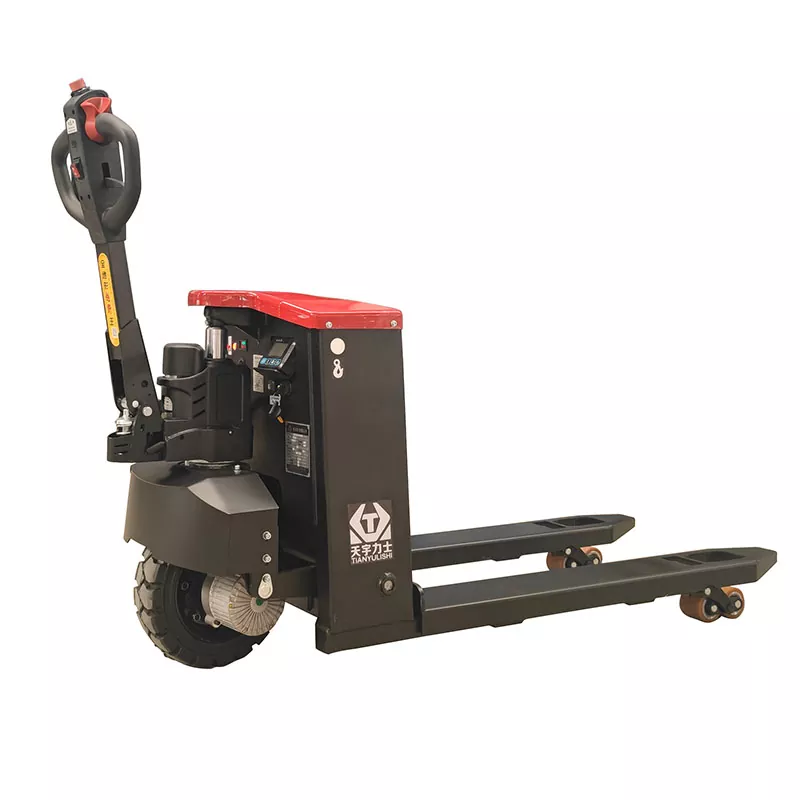

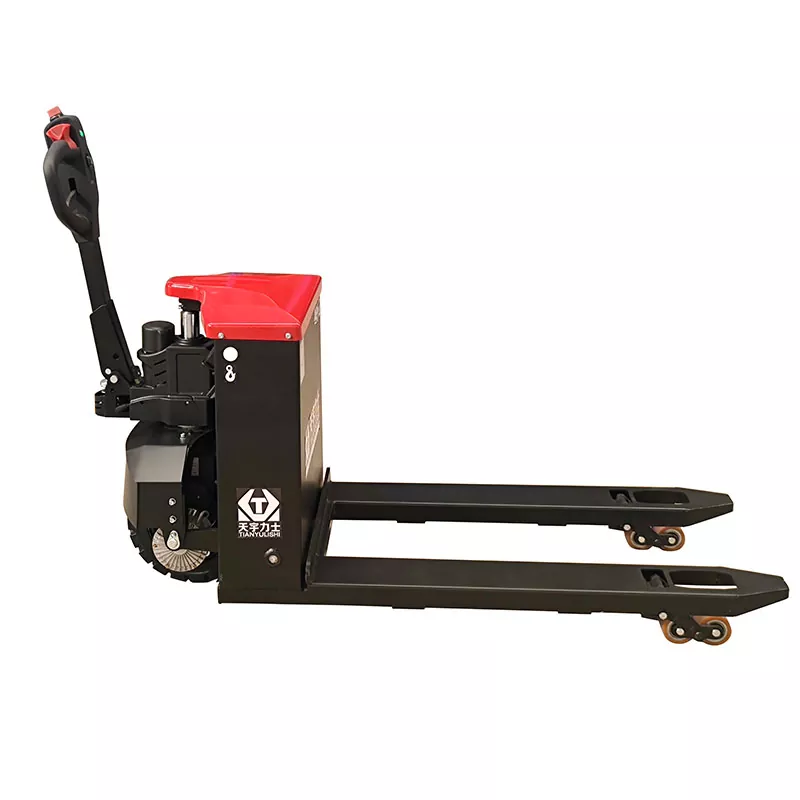

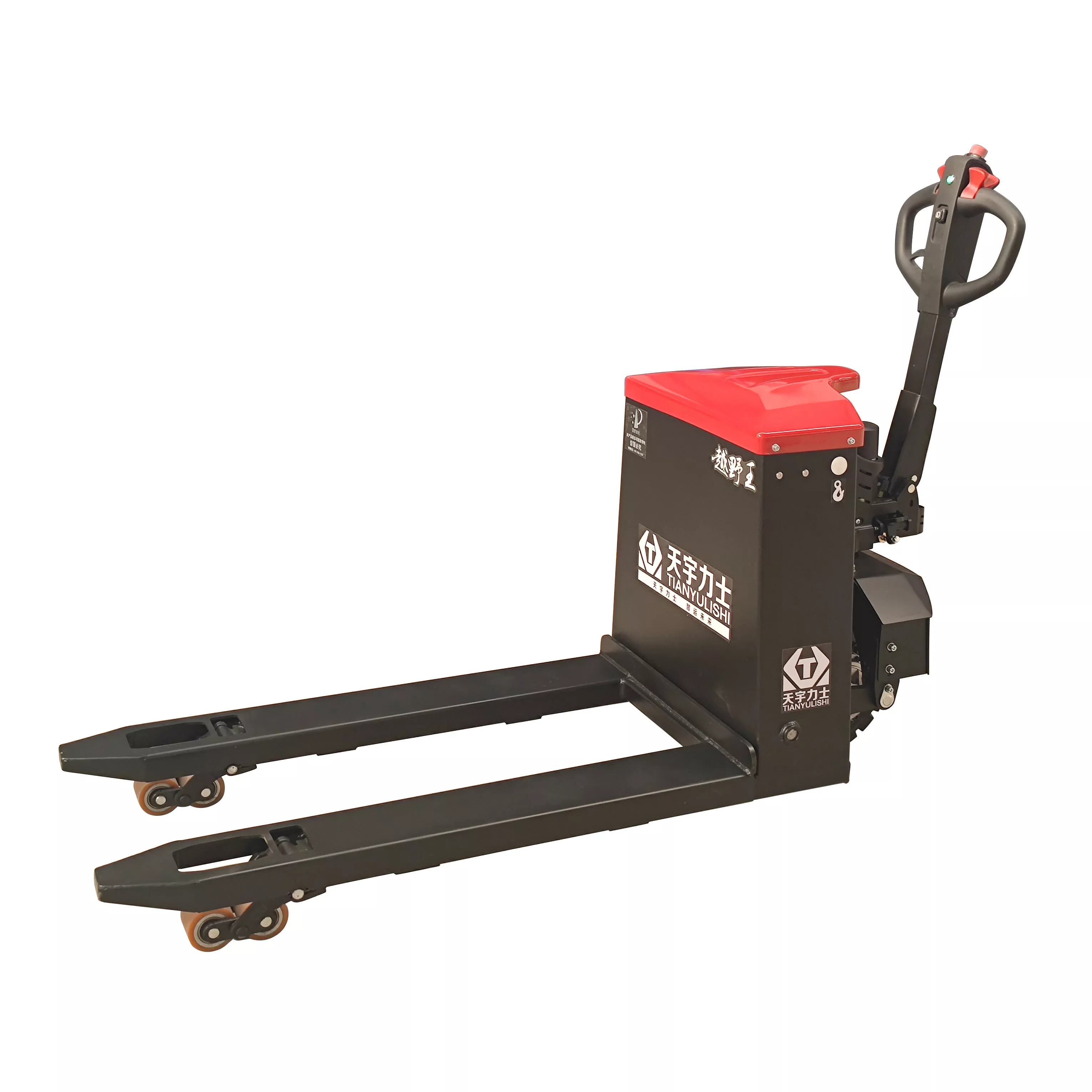

Pallet Jack with Built-In Scale
TianyuLux is a large Pallet Jack with Built-In Scale manufacturer and producer in China. Our pallet trucks are equipped with weighing function and label printing function. We have been focusing on pallet truck equipment for many years. Our pallet trucks can directly print weight labels, which is convenient for quickly recording and tracking cargo weight and improving work efficiency, especially suitable for industries that need to accurately record weight.
TianyuLux Pallet Jack with Built-In Scale is a new product that can weigh and print labels for transported goods. Our pallet truck electronic scale system is waterproof and can operate stably even in humid environments or bad weather, ensuring the long-term reliability of the equipment. The automated weighing function reduces the error of manual calculation and ensures accurate and fast operation. The integrated design of the electronic scale and the electric pallet truck not only reduces the space occupied, but also avoids the additional space requirements of traditional weighing equipment, which is suitable for environments with limited space. It can be used in supermarkets, seafood markets, vegetable wholesale markets, and even complex construction sites and wet cold storages. Our products have CE certification and have obtained ISO9001 international quality management system certification during the production process. TianyuLux electric pallet truck with weighing scale is a good helper for you to open up new markets and improve your competitiveness.
Parameter (Specification)
|
Features |
1 |
Model |
|
TYA30 All-electric (Electric Scale Lead-acid batteries) |
TYA30 All-electric (Electric Scale Lithium battery) |
|
2 |
Power form |
|
Electrical |
Electrical |
|
|
3 |
Operation |
|
Pedestrian |
Pedestrian |
|
|
4 |
Load |
kg |
2500 |
2500 |
|
|
5 |
Load center distance |
mm |
600 |
600 |
|
|
6 |
Wheelbase |
mm |
1230/1300 |
1230/1300 |
|
|
Weight |
7 |
Self weight with battery |
kg |
212 |
185 |
|
Wheel |
8 |
Wheel Type |
|
Front rubber, rear PU/nylon |
Front rubber, rear PU/nylon |
|
9 |
Driving wheel size (diameter×width) |
mm |
φ350×100 |
φ350×100 |
|
|
10 |
Load-bearing wheel size (diameter×width) |
mm |
φ80×70/60 |
φ80×70/60 |
|
|
11 |
Number of wheels Drive side / Load side |
|
1/4 |
1/4 |
|
|
Basic size |
12 |
Maximum height of fork |
mm |
200 |
200 |
|
13 |
Lifting stroke |
mm |
115 |
115 |
|
|
14 |
Minimum height of fork (±2mm) |
mm |
85 |
85 |
|
|
15 |
Fork outer distance |
mm |
550/685 |
550/685 |
|
|
16 |
Fork inner distance |
mm |
250/385,240/365 |
250/385,240/365 |
|
|
17 |
Length of forks |
mm |
1150/1220 |
1150/1220 |
|
|
18 |
Width of forks |
mm |
150/160 |
150/160 |
|
|
19 |
Thickness of forks |
mm |
60 |
60 |
|
|
20 |
Overall width |
mm |
570/685 |
570/685 |
|
|
22 |
Overall height without handle |
mm |
770 |
770 |
|
|
22 |
Overall length |
mm |
1780 |
1780 |
|
|
23 |
Overall height with handle |
mm |
1260 |
1260 |
|
|
24 |
Turning Radius |
mm |
1550 |
1550 |
|
|
Capability |
25 |
Travel speed, laden/unladen |
km/h |
4/4.5 |
4/4.5 |
|
26 |
Lifting speed, laden/unladen |
mm/s |
15/19 |
15/19 |
|
|
27 |
Maximum climbing grade, laden/unladen |
% |
8/16 |
8/16 |
|
|
28 |
Brake type |
|
Electronic brake / electromagnetic brake |
Electronic brake / electromagnetic brake |
|
|
Motor / Battery |
29 |
Rated power of driving motor |
kw |
1.0 |
1.0 |
|
30 |
Rated power of lifting motor |
kw |
0.8 |
0.8 |
|
|
31 |
Battery |
V/Ah |
48/32 |
48/20 |
|
|
32 |
Battery weight |
kg |
36 |
10 |
Feature And Application
TianyuLux is a professional Pallet Jack with Built-In Scale factory in China. Our pallet trucks are equipped with high-precision electronic scales, which can monitor the weight of goods in real time, combine cargo handling and weighing, and improve work efficiency.

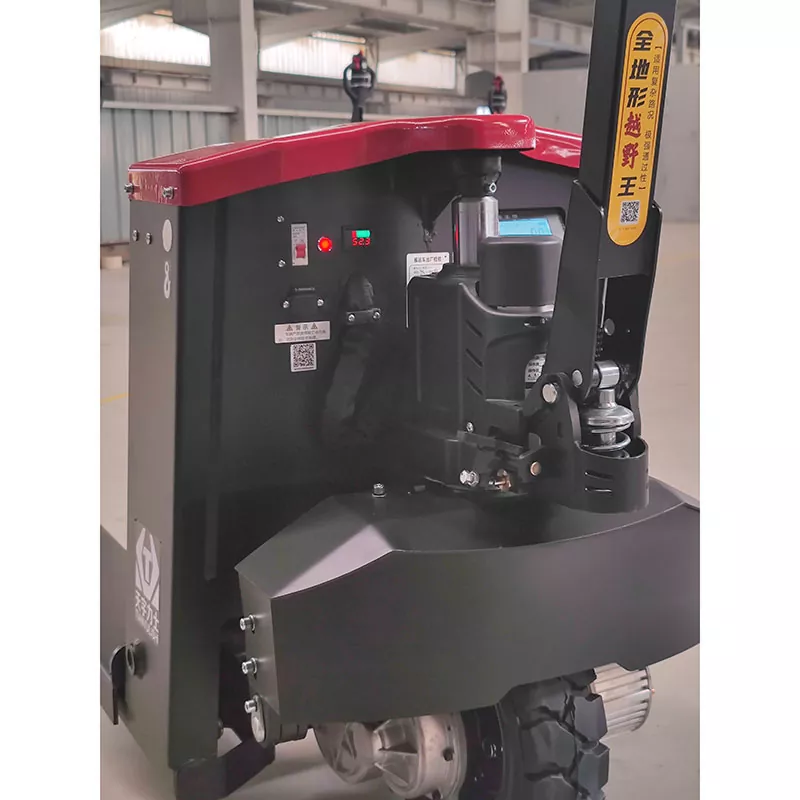

TianyuLux comes standard with a color voltage and power meter, which shows the real-time working power and working voltage at a glance, and clearly reminds you to replenish the power in time.
TianyuLux comes standard with a fault signal indicator light, which accurately determines the source of vehicle failure and makes maintenance efficient and convenient.
It adopts an ultra-large diameter 350x100mm solid tire and the gearbox is 110mm from the ground, which can easily cope with potholes and road conditions, and also makes weighing more accurate.
It adopts high-power national standard wiring harness, upgraded protection wire sleeve, and double fixed design of wiring harness head and tail to better protect the cable, which is stable and reliable.

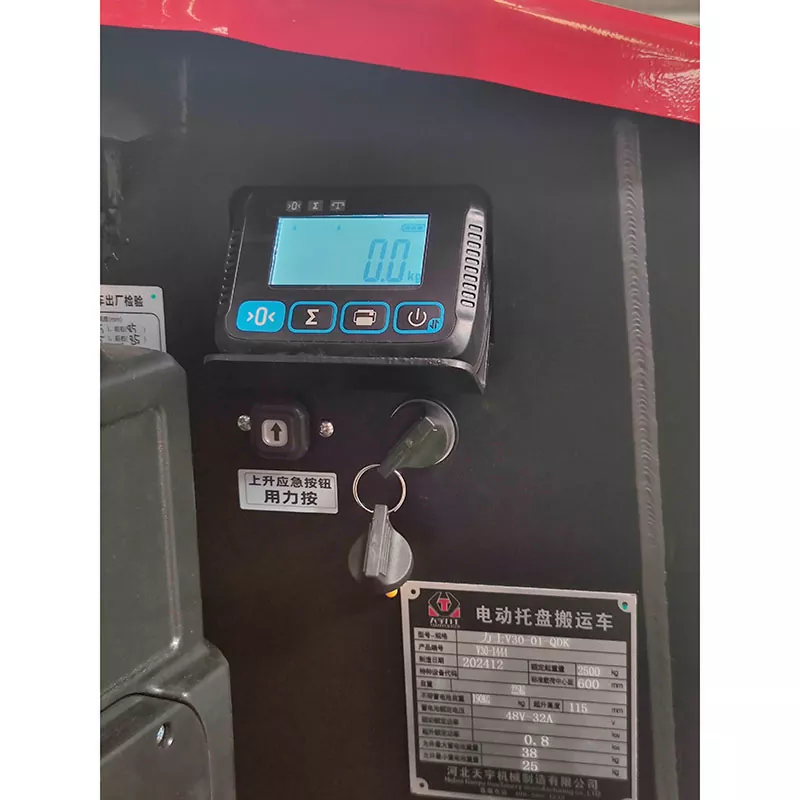

The built-in high-precision electronic scale can accurately weigh the weight of the goods, ensure the weighing results are correct, and is convenient and fast.
The fully enclosed sealed battery compartment cover prevents dust, debris, and water from entering; the thickened fine steel plate can withstand external impact, protect electrical components from damage, and reduce the failure rate.
The integrated design of electronic scale and electric pallet truck reduces the waste of equipment and space, and is particularly suitable for storage environments with limited space.
Our Factory
TianyuLux has more than 100 off-road electric pallet truck production personnel, 3 production lines, more than 20 R&D personnel, more than 30 machining equipment, several large laser cutting machines, several stamping equipment, several robotic arm welding equipment, etc.
