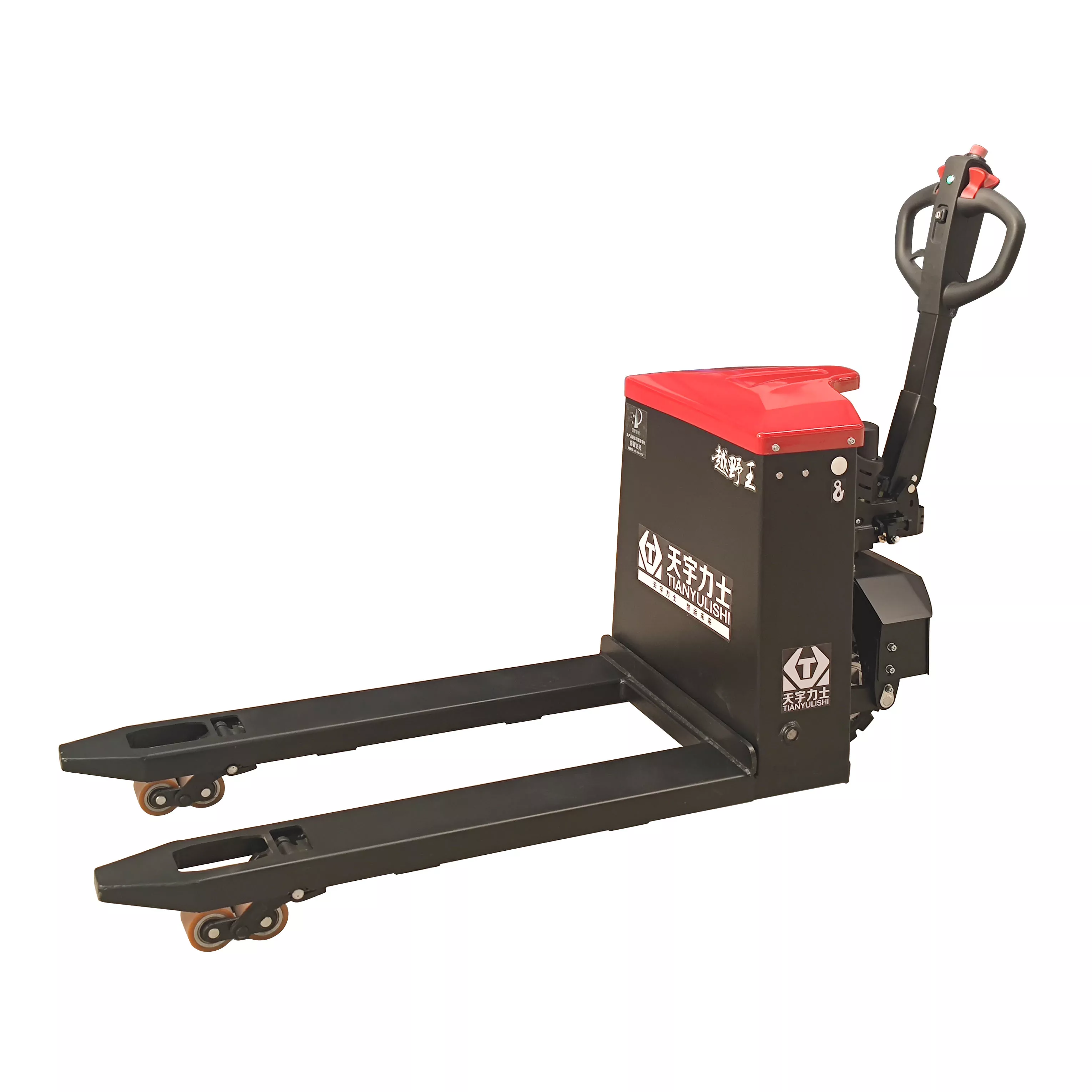

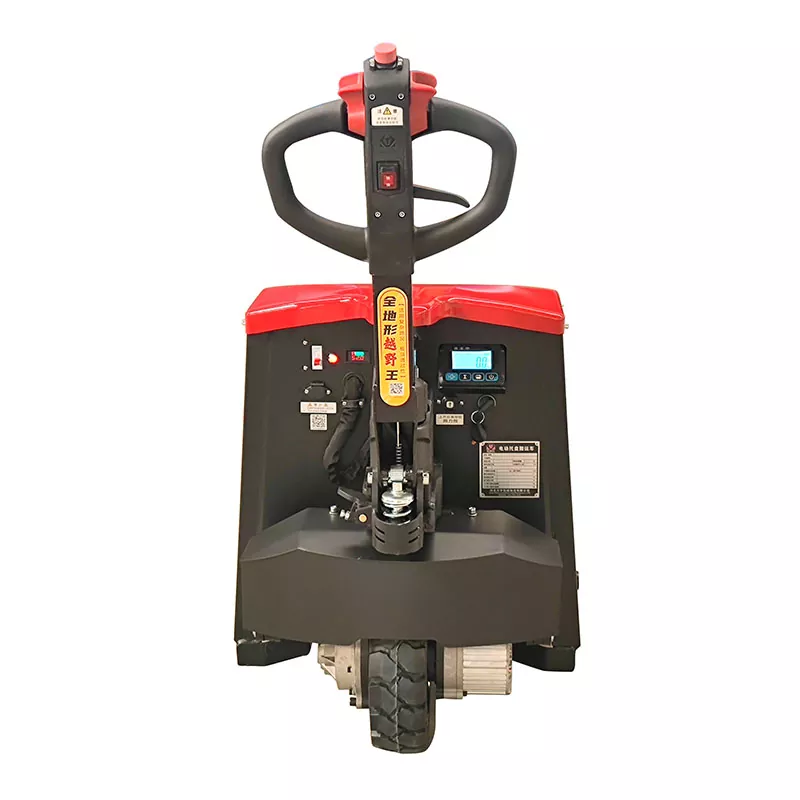

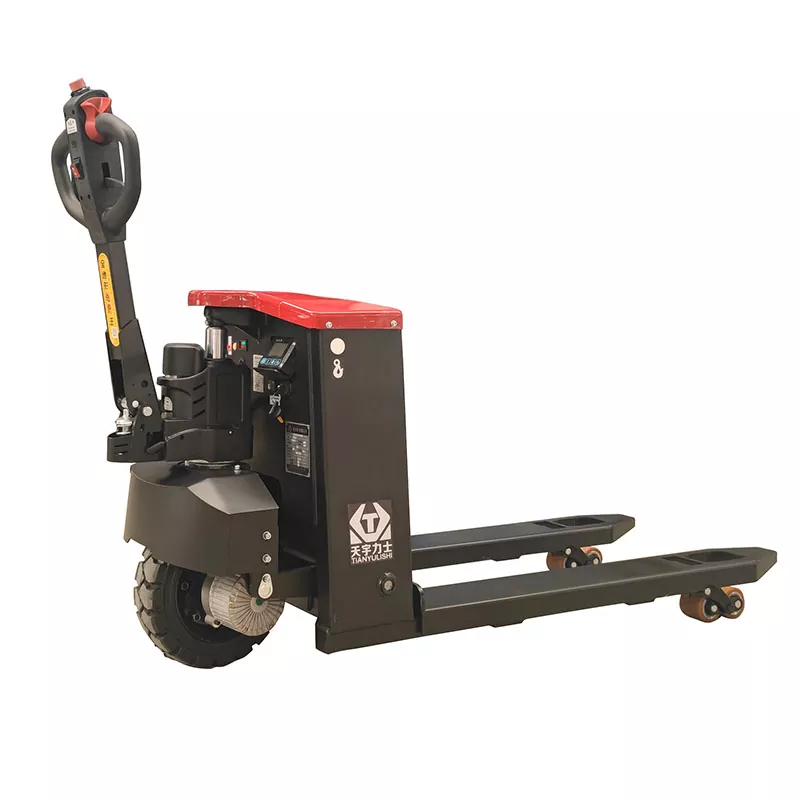

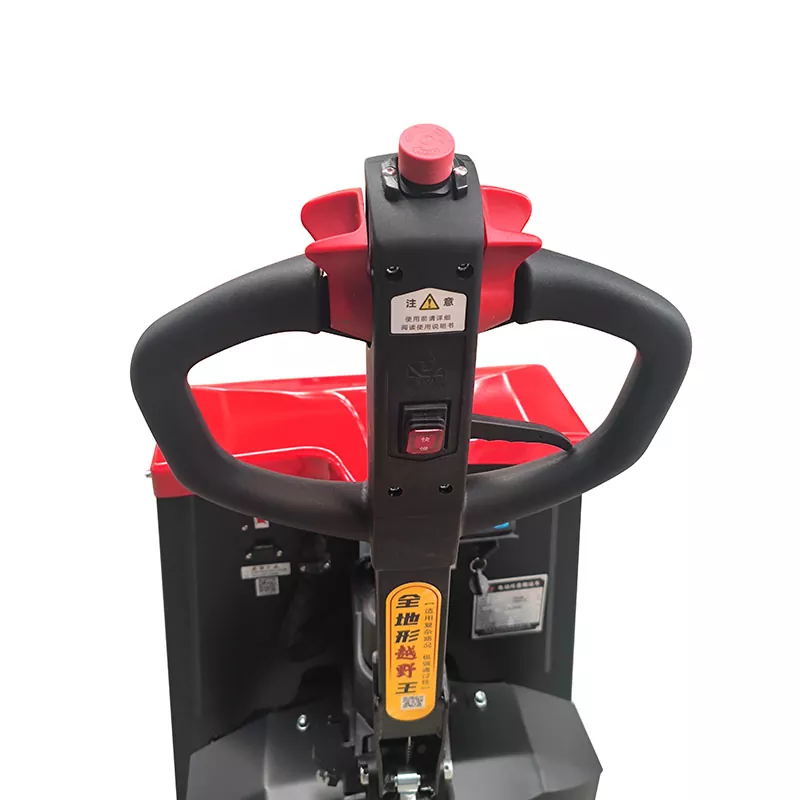

Weighing Scale Electric Pallet Truck
TianyuLux is a leading China Weighing Scale Electric Pallet Truckmanufacturer, supplier and exporter. Our Pallet Truck is equipped with weighing function and label printing function. We have been focusing on Pallet Truck equipment for many years. Our pallet truck can accurately weigh the transported goods and print weight labels. The weighing electronic instrument is waterproof. TianyuLux's load-bearing wheels are made of high-density high-quality nylon, which is high-strength and super wear-resistant.
This TianyuLux Weighing Scale Electric Pallet Truck is a new product that can weigh and print labels for the transported goods. Our pallet trucks have built-in high-precision electronic scales that can monitor the weight of the goods in real time, ensuring that operators know the exact weight of the goods when moving them and reducing manual calculation errors. Our Pallet Truck battery compartment has an optimized ultra-thin design with a thickness of only 20cm. The overall body is more compact, the turning radius is small, and the operation is more flexible, making it ideal for narrow spaces. It can be used in supermarkets, seafood markets, vegetable wholesale markets, and even complex construction sites and wet cold storages. Our products have CE certification and have obtained ISO9001 international quality management system certification during the production process. TianyuLux Weighing Scale Electric Pallet Truck is a good helper for you to open up new markets and improve your competitiveness.
Parameter (Specification)
|
Features |
1 |
Model |
|
TYA30 All-electric (Electric Scale Lead-acid batteries) |
TYA30 All-electric (Electric Scale Lithium battery) |
|
2 |
Power form |
|
Electrical |
Electrical |
|
|
3 |
Operation |
|
Pedestrian |
Pedestrian |
|
|
4 |
Load |
kg |
2500 |
2500 |
|
|
5 |
Load center distance |
mm |
600 |
600 |
|
|
6 |
Wheelbase |
mm |
1230/1300 |
1230/1300 |
|
|
Weight |
7 |
Self weight with battery |
kg |
212 |
185 |
|
Wheel |
8 |
Wheel Type |
|
Front rubber, rear PU/nylon |
Front rubber, rear PU/nylon |
|
9 |
Driving wheel size (diameter×width) |
mm |
φ350×100 |
φ350×100 |
|
|
10 |
Load-bearing wheel size (diameter×width) |
mm |
φ80×70/60 |
φ80×70/60 |
|
|
11 |
Number of wheels Drive side / Load side |
|
1/4 |
1/4 |
|
|
Basic size |
12 |
Maximum height of fork |
mm |
200 |
200 |
|
13 |
Lifting stroke |
mm |
115 |
115 |
|
|
14 |
Minimum height of fork (±2mm) |
mm |
85 |
85 |
|
|
15 |
Fork outer distance |
mm |
550/685 |
550/685 |
|
|
16 |
Fork inner distance |
mm |
250/385,240/365 |
250/385,240/365 |
|
|
17 |
Length of forks |
mm |
1150/1220 |
1150/1220 |
|
|
18 |
Width of forks |
mm |
150/160 |
150/160 |
|
|
19 |
Thickness of forks |
mm |
60 |
60 |
|
|
20 |
Overall width |
mm |
570/685 |
570/685 |
|
|
22 |
Overall height without handle |
mm |
770 |
770 |
|
|
22 |
Overall length |
mm |
1780 |
1780 |
|
|
23 |
Overall height with handle |
mm |
1260 |
1260 |
|
|
24 |
Turning Radius |
mm |
1550 |
1550 |
|
|
Capability |
25 |
Travel speed, laden/unladen |
km/h |
4/4.5 |
4/4.5 |
|
26 |
Lifting speed, laden/unladen |
mm/s |
15/19 |
15/19 |
|
|
27 |
Maximum climbing grade, laden/unladen |
% |
8/16 |
8/16 |
|
|
28 |
Brake type |
|
Electronic brake / electromagnetic brake |
Electronic brake / electromagnetic brake |
|
|
Motor / Battery |
29 |
Rated power of driving motor |
kw |
1.0 |
1.0 |
|
30 |
Rated power of lifting motor |
kw |
0.8 |
0.8 |
|
|
31 |
Battery |
V/Ah |
48/32 |
48/20 |
|
|
32 |
Battery weight |
kg |
36 |
10 |
Feature And Application
TianyuLux is a professional Weighing Scale Electric Pallet Truck factory in China. Our pallet trucks are equipped with high-precision electronic scales to monitor the weight of goods in real time, combining cargo handling and weighing to improve work efficiency.
TianyuLux drive shield adopts thickened steel plate integrated bending and welding, which is effective in waterproof, dustproof and collision-proof, protecting the motor and gearbox, avoiding collision during use and causing the product to be unusable., greatly reducing the drive failure rate, and the quality is more stable and durable.

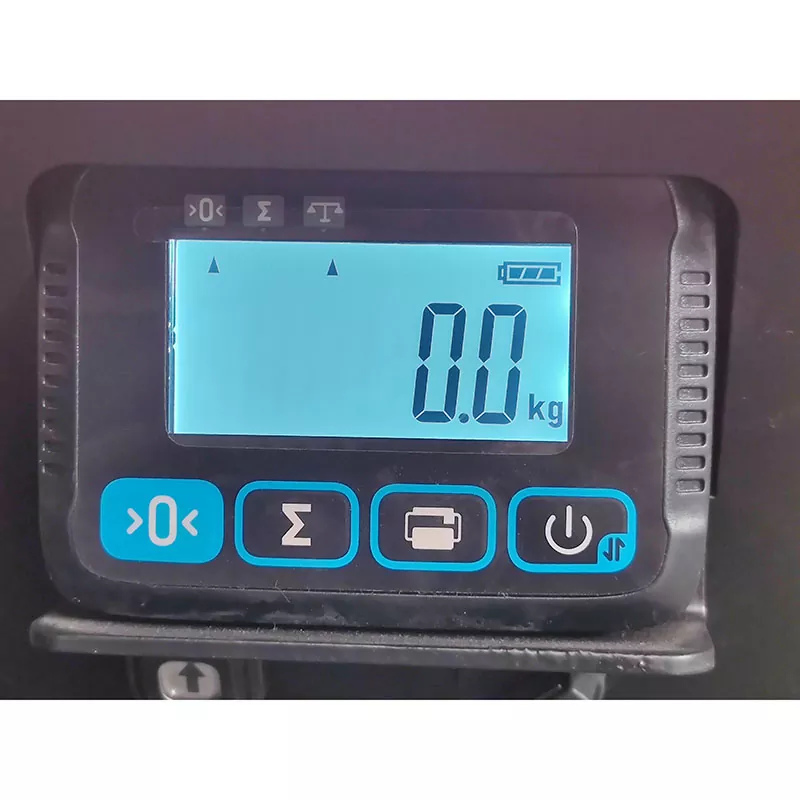

The instrument is connected to the power supply of the pallet truck and powered by a large battery with a long battery life. Most models on the market use small batteries for instruments alone, which have short battery life, short service life and high failure rate.

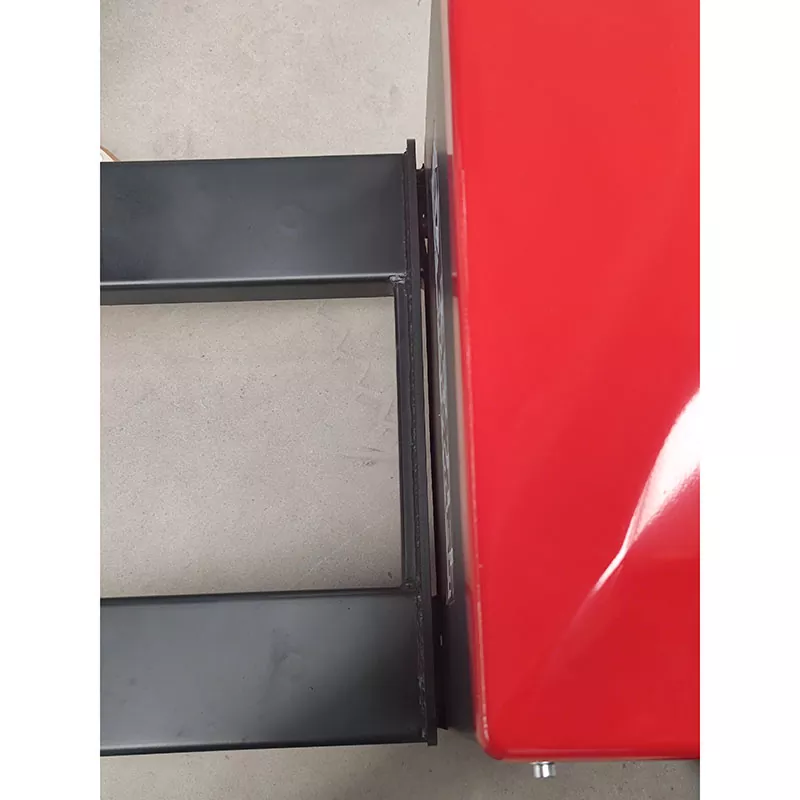

The thickness of the fork steel plate is 6mm, which makes weighing more accurate, and can also carry heavier goods and has a longer service life.
Adopt high-power national standard wiring harness, upgrade protection wire sleeve, and the double fixed design of the wiring harness head and tail better protects the cable, which is stable and reliable.
The fully enclosed sealed battery compartment cover prevents dust, debris and water from entering; the thickened fine steel plate can withstand external impact, protect electrical components from damage, and reduce the failure rate.
The integrated design of electronic scale and electric pallet truck reduces the waste of equipment and space, and is particularly suitable for storage environments with limited space.
Application Scenario
Construction sites
metal processing plants
stone processing plants
flour mills
Details
TianyuLux's innovatively developed Weighing Scale Electric Pallet Truck cleverly combines an electronic scale with an off-road pallet truck, reducing the waste of equipment and space, and is particularly suitable for storage environments with limited space. High quality and innovative product appearance can help you quickly open up new markets.
Our Factory
TianyuLux has more than 100 off-road electric pallet truck production personnel, 3 production lines, more than 20 R&D personnel, more than 30 machining equipment, several large laser cutting machines, several stamping equipment, several robotic arm welding equipment, etc.
