Electric Scale Electric Pallet Truck with Weighing Print Label
TianyuLux is a China large-scale Electric Scale Electric Pallet Truck with Weighing Print Label manufacturer. We have been focusing on forklift equipment for many years. Our Pallet Truck can accurately weigh the goods being transported and print weight labels. Our sales cover more than 50 countries and regions around the world. We look forward to becoming your long-term partner in China.
This TianyuLux Electric Scale Electric Pallet Truck with Weighing Print Label is a new product that can weigh and print labels for the goods being transported. Our Pallet Truck has a built-in high-precision electronic scale that can monitor the weight of the goods in real time, ensuring that the operator can accurately understand the weight of the goods when moving them, reducing manual calculation errors. It can be used in logistics parks, warehouses, factories, and even complex construction sites and wet cold storage. Our products have CE certification and have obtained ISO9001 international quality management system certification during the production process. TianyuLux Electric Scale Electric Pallet Truck with Weighing Print Label is a good helper for you to open up new markets and improve your competitiveness.
Parameter (Specification)
|
Features |
1 |
Model |
|
TYA30 All-electric (Electric Scale Lead-acid batteries) |
TYA30 All-electric (Electric Scale Lithium battery) |
|
2 |
Power form |
|
Electrical |
Electrical |
|
|
3 |
Operation |
|
Pedestrian |
Pedestrian |
|
|
4 |
Load |
kg |
2500 |
2500 |
|
|
5 |
Load center distance |
mm |
600 |
600 |
|
|
6 |
Wheelbase |
mm |
1230/1300 |
1230/1300 |
|
|
Weight |
7 |
Self weight with battery |
kg |
212 |
185 |
|
Wheel |
8 |
Wheel Type |
|
Front rubber, rear PU/nylon |
Front rubber, rear PU/nylon |
|
9 |
Driving wheel size (diameter×width) |
mm |
φ350×100 |
φ350×100 |
|
|
10 |
Load-bearing wheel size (diameter×width) |
mm |
φ80×70/60 |
φ80×70/60 |
|
|
11 |
Number of wheels Drive side / Load side |
|
1/4 |
1/4 |
|
|
Basic size |
12 |
Maximum height of fork |
mm |
200 |
200 |
|
13 |
Lifting stroke |
mm |
115 |
115 |
|
|
14 |
Minimum height of fork (±2mm) |
mm |
85 |
85 |
|
|
15 |
Fork outer distance |
mm |
550/685 |
550/685 |
|
|
16 |
Fork inner distance |
mm |
250/385,240/365 |
250/385,240/365 |
|
|
17 |
Length of forks |
mm |
1150/1220 |
1150/1220 |
|
|
18 |
Width of forks |
mm |
150/160 |
150/160 |
|
|
19 |
Thickness of forks |
mm |
60 |
60 |
|
|
20 |
Overall width |
mm |
570/685 |
570/685 |
|
|
22 |
Overall height without handle |
mm |
770 |
770 |
|
|
22 |
Overall length |
mm |
1780 |
1780 |
|
|
23 |
Overall height with handle |
mm |
1260 |
1260 |
|
|
24 |
Turning Radius |
mm |
1550 |
1550 |
|
|
Capability |
25 |
Travel speed, laden/unladen |
km/h |
4/4.5 |
4/4.5 |
|
26 |
Lifting speed, laden/unladen |
mm/s |
15/19 |
15/19 |
|
|
27 |
Maximum climbing grade, laden/unladen |
% |
8/16 |
8/16 |
|
|
28 |
Brake type |
|
Electronic brake / electromagnetic brake |
Electronic brake / electromagnetic brake |
|
|
Motor / Battery |
29 |
Rated power of driving motor |
kw |
1.0 |
1.0 |
|
30 |
Rated power of lifting motor |
kw |
0.8 |
0.8 |
|
|
31 |
Battery |
V/Ah |
48/32 |
48/20 |
|
|
32 |
Battery weight |
kg |
36 |
10 |
Feature And Application
TianyuLux is a professional Electric Scale Electric Pallet Truck with Weighing Print Label factory in China. Our pallet trucks are equipped with high-precision electronic scales, which can monitor the weight of goods in real time, combine cargo handling and weighing, and improve work efficiency.
1. Four-proof acceleration switch, waterproof, dustproof, shockproof, and burn-proof.
2. The oil cylinder load is 2T, and the actual lifting weight can reach 2.8T

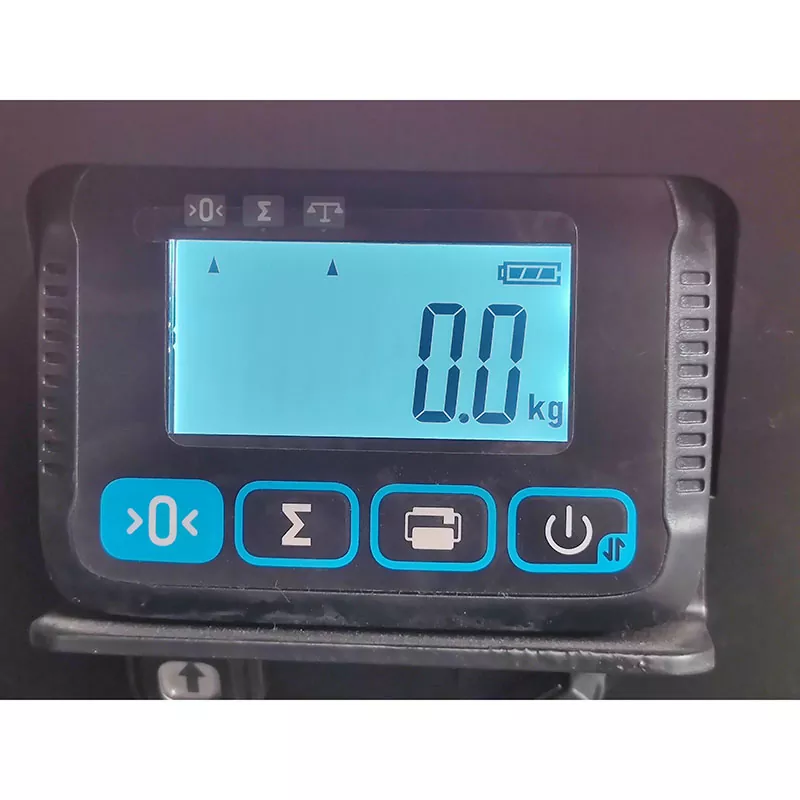

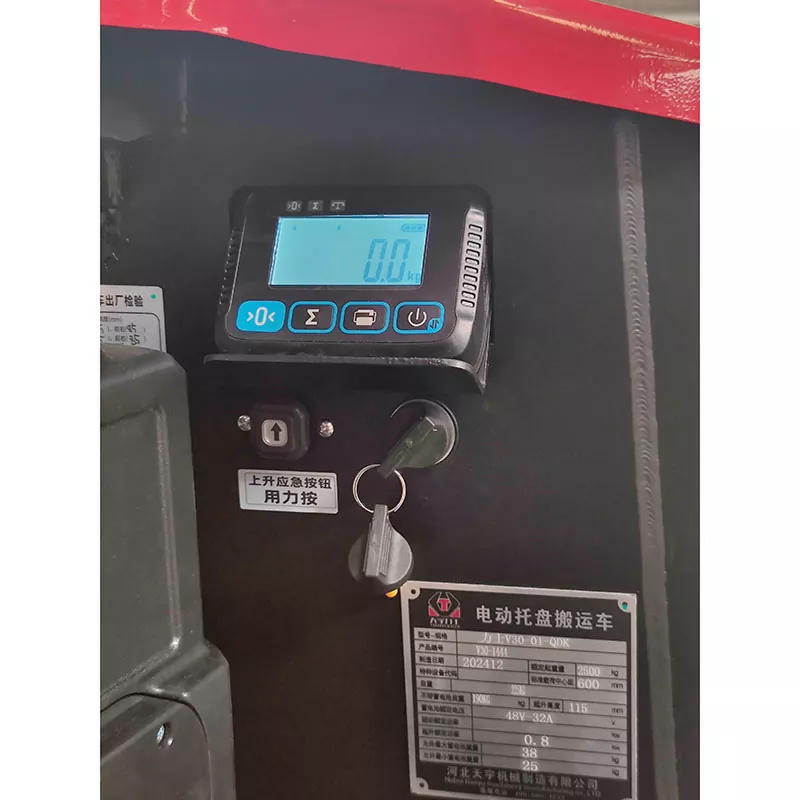

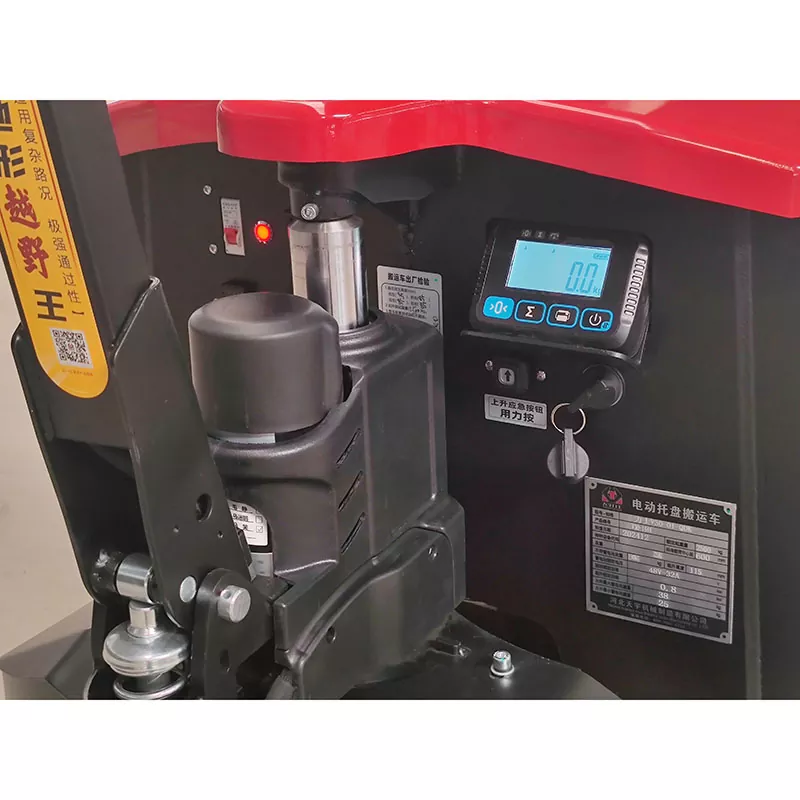

3. The instrument is set under the battery compartment cover to prevent dust, rain, and smashing. Most other similar products on the market set the instrument on top, which is easy to bump when carrying goods, causing damage to the instrument or affecting the accuracy.
4. The integrated design of the electronic scale and the electric pallet truck reduces the waste of equipment and space, and is particularly suitable for storage environments with limited space.
Application Scenario
Construction sites
metal processing plants
stone processing plants
flour mills
Details

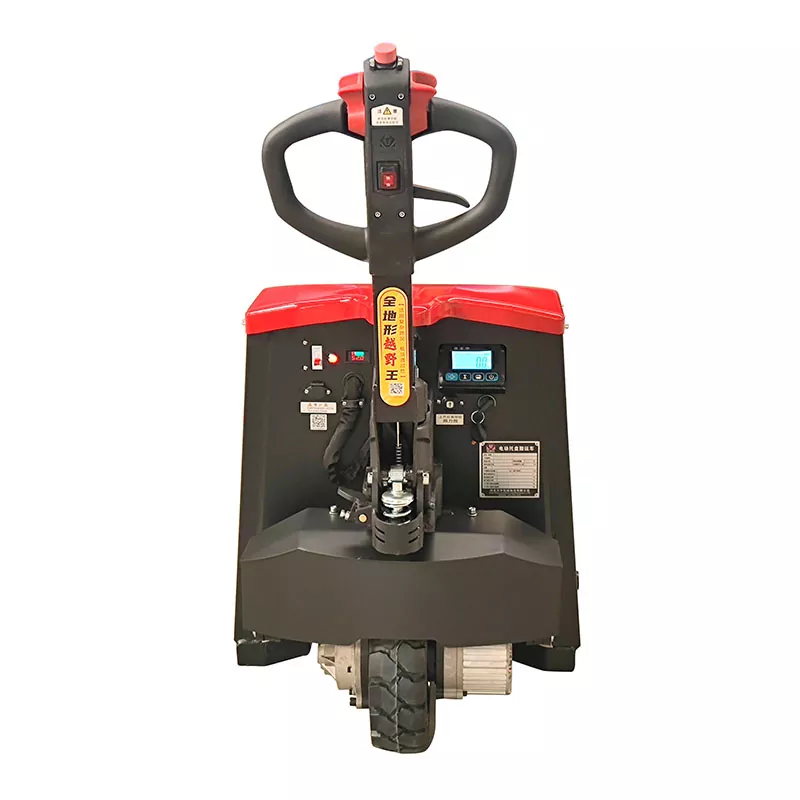

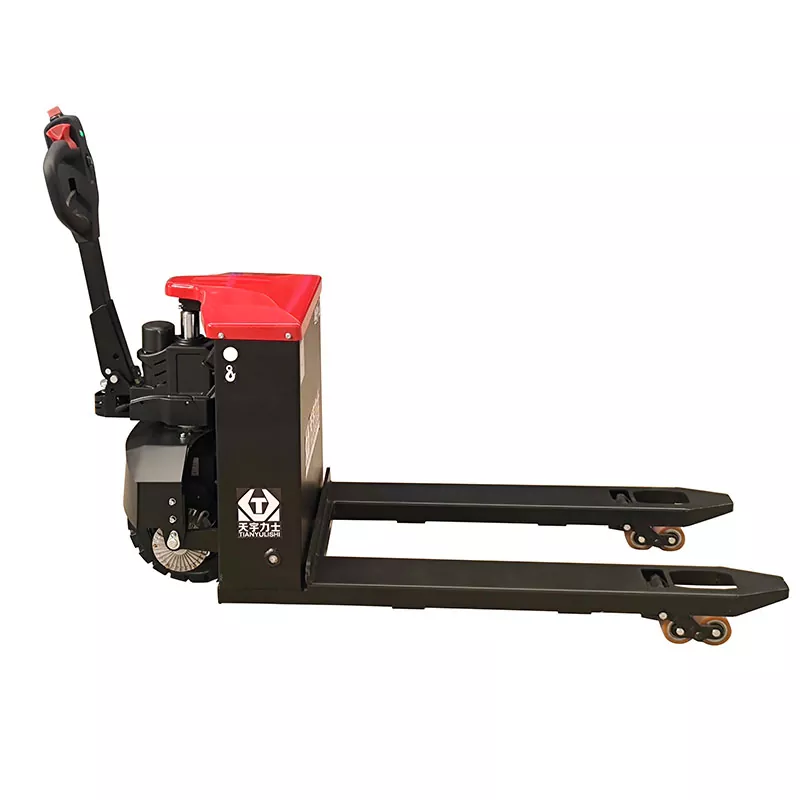

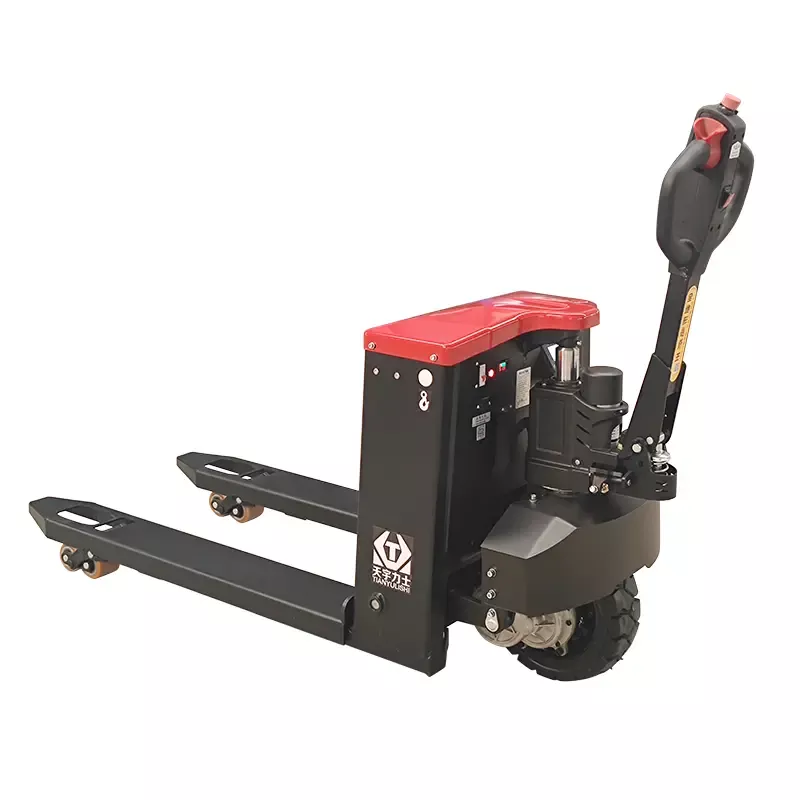

TianyuLux's innovatively developed Electric Scale Electric Pallet Truck with Weighing Print Label cleverly combines an electronic scale with an off-road pallet truck, reducing the waste of equipment and space, and is particularly suitable for storage environments with limited space.
Our Factory
TianyuLux has more than 100 off-road electric pallet truck production personnel, 3 production lines, more than 20 R&D personnel, more than 30 machining equipment, several large laser cutting machines, several stamping equipment, several robotic arm welding equipment, etc.
