Stand-Up Rider Pallet Truck

TianyuLux is a large-scale Stand-Up Rider Pallet Truck manufacturer & supplier in China. We have been focusing on forklift equipment for many years. Our product design takes into account the comfort and safety of the operator, providing a suitable standing position and ergonomic handles to improve work efficiency, especially suitable for long-distance handling tasks that require continuous operation.

TianyuLux is a professional Stand-Up Rider Pallet Truck factory in China. Our pallet trucks have been thoroughly improved and upgraded to solve the problems of long-distance cargo handling and heavy object handling.

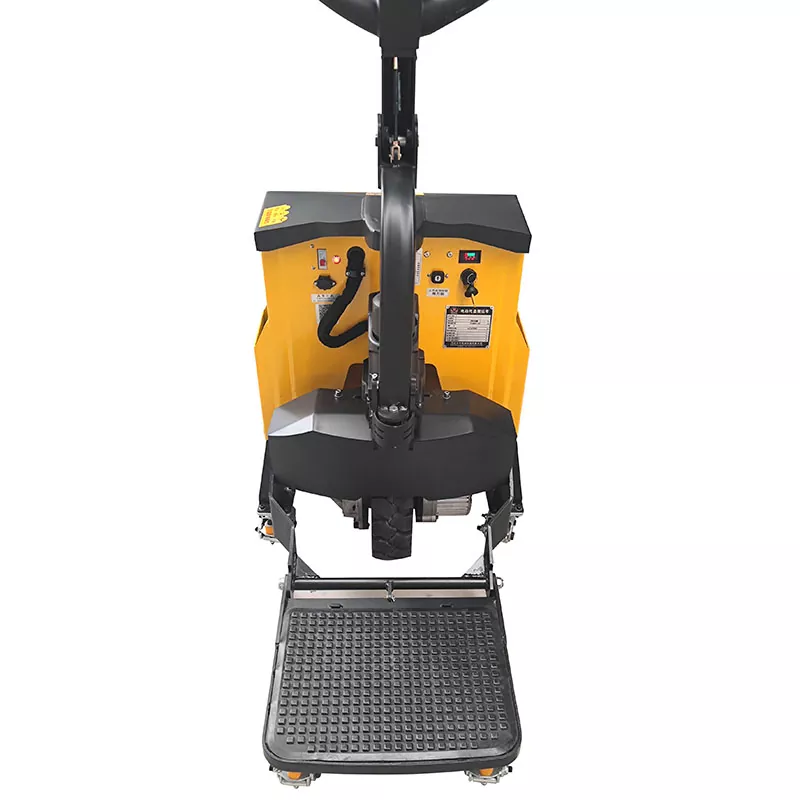

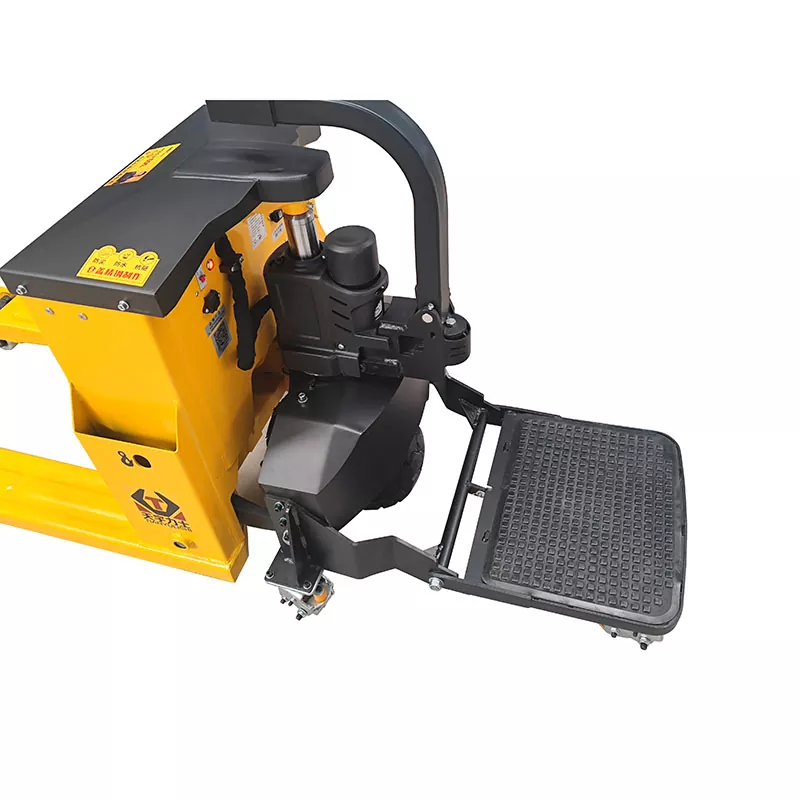

The innovatively designed folding pedal design not only improves the operational flexibility of the equipment in warehouses, factories, distribution centers and other places, but also reduces the space occupied during storage and transportation, which is convenient for flexible deployment and use in different working environments. Whether in busy transportation operations or in situations where frequent entry and exit of narrow passages are required, the simple and flexible pedal retractable design can help operators complete tasks more efficiently and improve overall work efficiency and work fluency.

Our Stand-Up Rider Pallet Truck is equipped with rubber-covered pedals, which are designed to improve operational safety. The use of rubber materials not only provides a good anti-slip effect, but also effectively absorbs impact and reduces foot fatigue. Whether in wet, greasy or other slippery environments, the rubber-covered pedals ensure that the operator stands firmly and prevents accidents due to slipping.

Parameter (Specification)

Features

1

Model



TYA30 All-electric (Stand-On Lead-acid batteries)

TYA30 All-electric (Stand-On Lithium battery)

2

Power form



Electrical

Electrical

3

Operation



Pedestrian

Pedestrian

4

Load

kg

3000

3000

5

Load center distance

mm

600

600

6

Wheelbase

mm

1230/1300

1230/1300

Weight

7

Self weight with battery

kg

232

205

Wheel

8

Wheel Type



Front rubber, rear PU/nylon

Front rubber, rear PU/nylon

9

Driving wheel size (diameter×width)

mm

φ350×100

φ350×100

10

Load-bearing wheel size (diameter×width)

mm

φ80×70/60

φ80×70/60

11

Number of wheels Drive side / Load side



1/4

1/4

Basic size

12

Maximum height of fork

mm

200

200

13

Lifting stroke

mm

115

115

14

Minimum height of fork (±2mm)

mm

85

85

15

Fork outer distance

mm

550/685

550/685

16

Fork inner distance

mm

250/385,240/365

250/385,240/365

17

Length of forks

mm

1150/1220

1150/1220

18

Width of forks

mm

150/160

150/160

19

Thickness of forks

mm

60

60

20

Overall width

mm

570/685

570/685

22

Overall height without handle

mm

770

770

22

Overall length

mm

1780

1780

23

Overall height with handle

mm

1260

1260

24

转弯半径Turning Radius

mm

1550

1550

Capability

25

Travel speed, laden/unladen

km/h

4/4.5

4/4.5

26

Lifting speed, laden/unladen

mm/s

15/19

15/19

27

Maximum climbing grade, laden/unladen

%

8/16

8/16

28

Brake type



Electronic brake / electromagnetic brake

Electronic brake / electromagnetic brake

Motor / Battery

29

Rated power of driving motor

kw

1.0

1.0

30

Rated power of lifting motor

kw

0.8

0.8

31

Battery

V/Ah

48/32

48/20

32

Battery weight

kg

36

10

Feature And Application

TianyuLux is a professional Stand-Up Rider Pallet Truck factory in China. Our pallet trucks have been thoroughly improved and upgraded to solve the problems of long-distance cargo handling and heavy object handling.

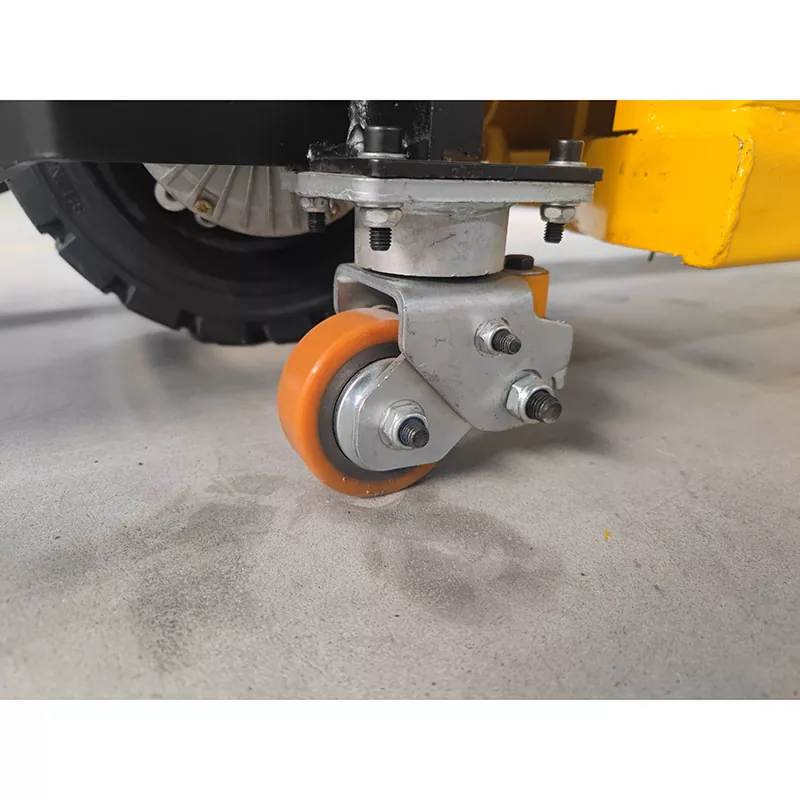

TianyuLux Stand-Up Rider Pallet Truck combines a number of innovative designs to suit various handling needs. The unique ergonomic operating handle ensures that the operator can work comfortably for a long time and reduce fatigue. The innovative folding pedal design makes the operation easy and flexible, and can be quickly retracted and released when needed, saving space and improving work efficiency. The rubber-covered pedal provides anti-slip protection, ensuring safety in slippery environments. The heavy-duty 360-degree rotating auxiliary wheels bring higher stability and shock absorption performance, allowing the truck to flexibly cope with complex environments and drive smoothly.

The driving experience of this electric pallet truck is like "smooth as Mount Tai", the operation is flexible and smooth, and it can easily achieve fast turns and precise control, which greatly improves the work efficiency. It frees the legs for walking, saves effort and is efficient, especially suitable for long-term, high-load handling tasks. The operation is simple, and workers can easily get started and quickly master the use of the equipment, which significantly improves work efficiency, which is three times the efficiency of traditional pallet trucks. Whether it is long-distance transportation or large-volume transportation, this electric pallet truck can complete it efficiently, helping companies reduce labor costs and improve overall work efficiency.

Application Scenario

Construction sites

metal processing plants

stone processing plants

flour mills

Details

The Stand-Up Rider Pallet Truck independently developed by Tianyu Lishi has greatly improved the handling efficiency and reduced manpower consumption compared to traditional manual handling. It is particularly suitable for bulk cargo handling and long-term work.

Our Factory

TianyuLux has more than 100 off-road electric pallet truck production personnel, 3 production lines, more than 20 R&D personnel, more than 30 machining equipment, several large laser cutting machines, several stamping equipment, several robotic arm welding equipment, etc.
