Rider Stand On Electric Pallet Truck
TianyuLux specializes in manufacturing of Rider Stand On Electric Pallet Truck made in China. We have focused on forklift equipment for many years. Our products can provide more stable, flexible and efficient work performance, ensure smoother workflow and improve overall work efficiency. Covering more than 50 countries and regions around the world. With competitive prices and reliable delivery services, we are expecting become your long-term partner in China.
This TianyuLux Rider Stand On Electric Pallet Truck is a new product different from traditional electric pallet trucks.
Rider Stand On Electric Pallet Truck effectively liberates the operator's walking legs through innovative design, significantly reduces physical exertion and improves work efficiency. Traditional manual pallet trucks require operators to constantly bend over and walk to carry goods, which is very physically demanding and has low work efficiency. Our Rider Stand On Electric Pallet Truck operators can easily control the vehicle's driving direction and speed through the control handle, which greatly saves physical energy and improves work efficiency.
Operators with reduced physical burden can focus more on their work, reducing operational errors or safety hazards caused by fatigue.
TianyuLux Rider Stand On Electric Pallet Truck is a good helper to save manpower and transport goods over long distances.
Parameter (Specification)
|
Features |
1 |
Model |
|
TYA30 All-electric (Stand-On Lead-acid batteries) |
TYA30 All-electric (Stand-On Lithium battery) |
|
2 |
Power form |
|
Electrical |
Electrical |
|
|
3 |
Operation |
|
Pedestrian |
Pedestrian |
|
|
4 |
Load |
kg |
3000 |
3000 |
|
|
5 |
Load center distance |
mm |
600 |
600 |
|
|
6 |
Wheelbase |
mm |
1230/1300 |
1230/1300 |
|
|
Weight |
7 |
Self weight with battery |
kg |
232 |
205 |
|
Wheel |
8 |
Wheel Type |
|
Front rubber, rear PU/nylon |
Front rubber, rear PU/nylon |
|
9 |
Driving wheel size (diameter×width) |
mm |
φ350×100 |
φ350×100 |
|
|
10 |
Load-bearing wheel size (diameter×width) |
mm |
φ80×70/60 |
φ80×70/60 |
|
|
11 |
Number of wheels Drive side / Load side |
|
1/4 |
1/4 |
|
|
Basic size |
12 |
Maximum height of fork |
mm |
200 |
200 |
|
13 |
Lifting stroke |
mm |
115 |
115 |
|
|
14 |
Minimum height of fork (±2mm) |
mm |
85 |
85 |
|
|
15 |
Fork outer distance |
mm |
550/685 |
550/685 |
|
|
16 |
Fork inner distance |
mm |
250/385,240/365 |
250/385,240/365 |
|
|
17 |
Length of forks |
mm |
1150/1220 |
1150/1220 |
|
|
18 |
Width of forks |
mm |
150/160 |
150/160 |
|
|
19 |
Thickness of forks |
mm |
60 |
60 |
|
|
20 |
Overall width |
mm |
570/685 |
570/685 |
|
|
22 |
Overall height without handle |
mm |
770 |
770 |
|
|
22 |
Overall length |
mm |
1780 |
1780 |
|
|
23 |
Overall height with handle |
mm |
1260 |
1260 |
|
|
24 |
Turning Radius |
mm |
1550 |
1550 |
|
|
Capability |
25 |
Travel speed, laden/unladen |
km/h |
4/4.5 |
4/4.5 |
|
26 |
Lifting speed, laden/unladen |
mm/s |
15/19 |
15/19 |
|
|
27 |
Maximum climbing grade, laden/unladen |
% |
8/16 |
8/16 |
|
|
28 |
Brake type |
|
Electronic brake / electromagnetic brake |
Electronic brake / electromagnetic brake |
|
|
Motor / Battery |
29 |
Rated power of driving motor |
kw |
1.0 |
1.0 |
|
30 |
Rated power of lifting motor |
kw |
0.8 |
0.8 |
|
|
31 |
Battery |
V/Ah |
48/32 |
48/20 |
|
|
32 |
attery weight |
kg |
36 |
10 |
Feature And Application
TianyuLux is a professional Rider Stand On Electric Pallet Truck factory in China. Our pallet trucks have been thoroughly improved and upgraded to solve the problems of long-distance cargo handling and heavy object transportation.
TianyuLux Rider Stand On Electric Pallet Truck is specially designed for long-distance and large-volume handling tasks, with excellent stability and efficiency. Whether in warehouses, distribution centers, or large factories, stand-on electric pallet trucks can maintain stable performance during long-term operations and significantly improve handling efficiency. The 1.2 Kw high-power permanent magnet brushless electric can operate continuously under high load and can easily cope with long-distance transportation tasks.
The design of the stand-up model takes the operator's comfort and safety into consideration, providing a suitable standing position and ergonomic handles, allowing the operator to maintain a good posture during long-term operation, reduce fatigue and improve work efficiency. Equipped with a large-capacity 48V32Ah battery, it ensures long working time.

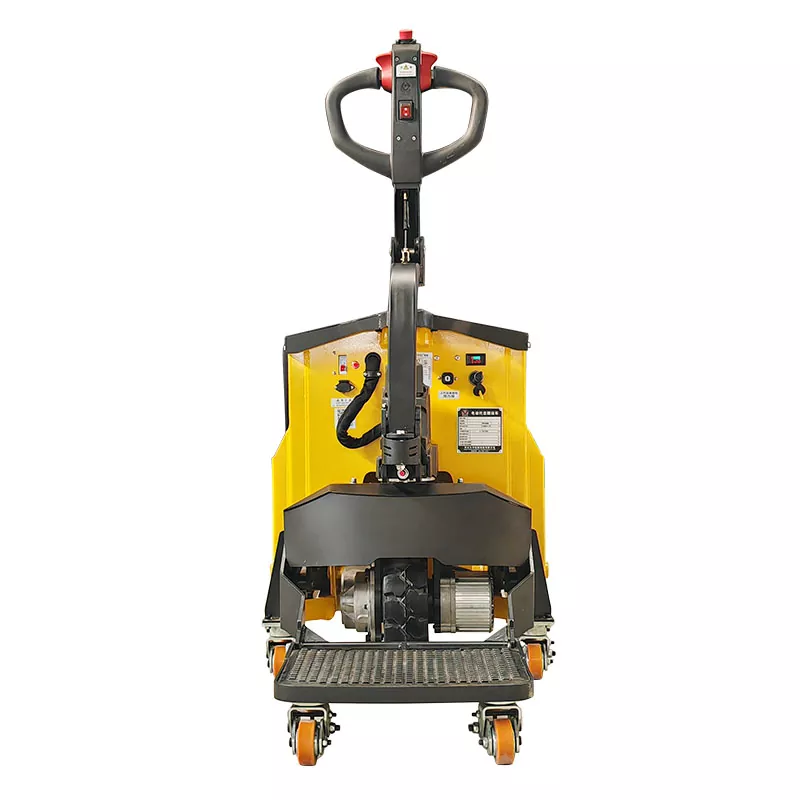

Our stand-on electric pallet trucks are designed with an innovative folding pedal system, making the pedal retracting and extending operation easier and more flexible. The operator can easily fold or unfold the pedal with just a light push, greatly facilitating the loading and unloading process of goods. The folding design not only saves space, but also reduces the area occupied by the equipment during transportation or storage, allowing the equipment to be operated flexibly in a small space. Whether in a warehouse, factory, or during transportation, this design can flexibly cope with different scenarios and is very convenient.
Application Scenario
Construction sites
metal processing plants
stone processing plants
flour mills
Details
The Stand-On Stand-In Electric Pallet Truck independently developed by TianyuLux has greatly improved the handling efficiency and reduced manpower consumption compared to traditional manual handling. It is especially suitable for large-scale cargo handling and long-term work.
Our Factory
TianyuLux has more than 100 off-road electric pallet truck production personnel, 3 production lines, more than 20 R&D personnel, more than 30 machining equipment, several large laser cutting machines, several stamping equipment, several robotic arm welding equipment, etc.
