Walkie Stand-On Electric Pallet Truck

TianyuLux is a large-scale forklift equipment manufacturer and supplier in China. We have focused on Walkie Stand-On Electric Pallet Truck for many years. Compared with traditional manual handling, our products greatly improve handling efficiency and reduce manpower consumption, especially suitable for large-scale cargo handling and long-term work. Covering more than 50 countries and regions around the world. We look forward to becoming your long-term partner in China.

Send Inquiry

Product Description

This TianyuLux Walkie Stand-On Electric Pallet Truck is a new product that is different from traditional electric pallet trucks. TianyuLux Walkie Stand-On Electric Pallet Truck is equipped with a unique patented operating handle, which is designed to improve the operator's comfort and operating accuracy. The handle adopts an ergonomic design concept, and the shape and angle are precisely calculated to ensure that the operator can maintain comfort during long working hours. The handle surface is wrapped with plastic, which can be well operated even in wet or oily conditions.

The handle is integrated with simple and clear control buttons, and the operator can easily control the driving direction, speed, acceleration and deceleration functions, which improves the overall work efficiency.

It can be used in logistics parks, warehouses, factories, and even complex construction sites and wet cold storage. Our products have CE certification and have obtained ISO9001 international quality management system certification during the production process. TianyuLux stand-on electric pallet truck is a good helper for saving manpower and transporting goods over long distances.

Learn More

Parameter (Specification)

Features	1	Model		TYA30 All-electric (Stand-On Lead-acid batteries)	TYA30 All-electric (Stand-On Lithium battery)
	2	Power form		Electrical	Electrical
	3	Operation		Pedestrian	Pedestrian
	4	Load	kg	3000	3000
	5	Load center distance	mm	600	600
	6	Wheelbase	mm	1230/1300	1230/1300
Weight	7	Self weight with battery	kg	232	205
Wheel	8	Wheel Type		Front rubber, rear PU/nylon	Front rubber, rear PU/nylon
	9	Driving wheel size (diameter×width)	mm	φ350×100	φ350×100
	10	Load-bearing wheel size (diameter×width)	mm	φ80×70/60	φ80×70/60
	11	Number of wheels Drive side / Load side		1/4	1/4
Basic size	12	Maximum height of fork	mm	200	200
	13	Lifting stroke	mm	115	115
	14	Minimum height of fork (±2mm)	mm	85	85
	15	Fork outer distance	mm	550/685	550/685
	16	货叉内侧间距Fork inner distance	mm	250/385,240/365	250/385,240/365
	17	Length of forks	mm	1150/1220	1150/1220
	18	Width of forks	mm	150/160	150/160
	19	Thickness of forks	mm	60	60
	20	Overall width	mm	570/685	570/685
	22	Overall height without handle	mm	770	770
	22	Overall length	mm	1780	1780
	23	Overall height with handle	mm	1260	1260
	24	Turning Radius	mm	1550	1550
Capability	25	Travel speed, laden/unladen	km/h	4/4.5	4/4.5
	26	Lifting speed, laden/unladen	mm/s	15/19	15/19
	27	Maximum climbing grade, laden/unladen	%	8/16	8/16
	28	Brake type		Electronic brake / electromagnetic brake	Electronic brake / electromagnetic brake
Motor / Battery	29	Rated power of driving motor	kw	1.0	1.0
	30	Rated power of lifting motor	kw	0.8	0.8
	31	Battery	V/Ah	48/32	48/20
	32	Battery weight	kg	36	10

Feature And Application

TianyuLux is a professional Walkie Stand-On Electric Pallet Truck factory in China. Our pallet trucks have been thoroughly improved and upgraded to solve the problems of long-distance cargo handling and heavy-duty cargo handling.

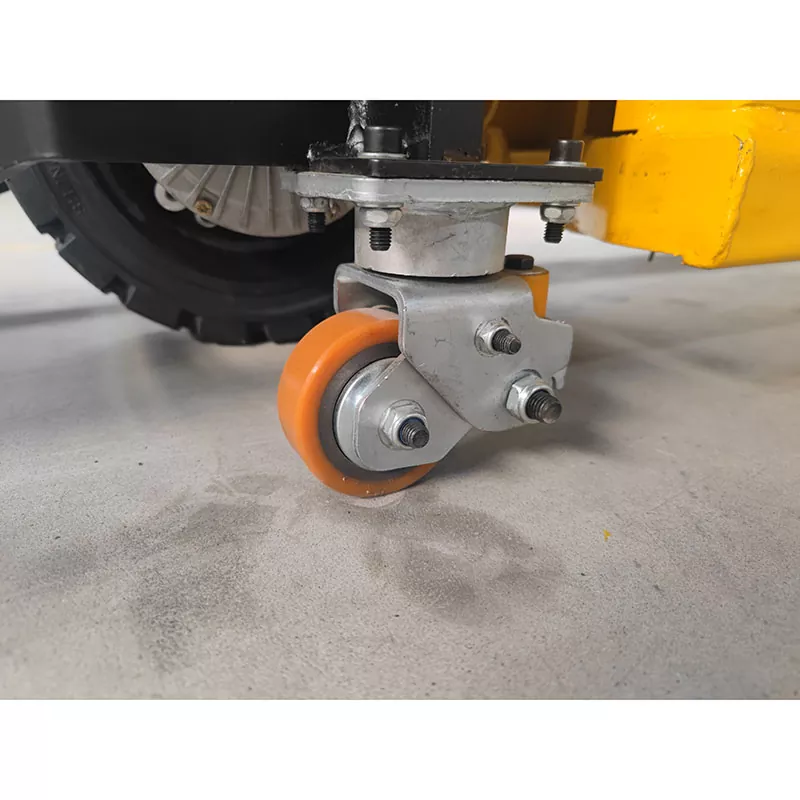

TianyuLux Walkie Stand-On Electric Pallet Truck is specially equipped with heavy-duty 360-degree rotating auxiliary wheels, which improves the flexibility and stability of the Pallet Truck, especially in complex operating environments. The heavy-duty auxiliary wheels are made of high-strength steel + high-quality PU, with excellent load-bearing capacity, which can effectively disperse the load of the Pallet Truck and ensure that the Pallet Truck can operate stably even when pulling heavy goods.

The 360-degree all-round rotation design allows the electric pallet truck to easily turn in a small space, greatly improving the operational flexibility, and is particularly suitable for operation in narrow warehouse aisles, cargo yards and workshops with limited space.

The heavy-duty auxiliary wheels have excellent shock absorption performance. It can effectively alleviate the impact of uneven ground and rugged roads on the Pallet Truck, reduce the damage to the Pallet Truck caused by vibration, and extend the service life. The shock absorption function can also provide the operator with a smoother driving experience, reduce leg discomfort caused by vibration, and improve the overall operating comfort and safety.

Application Scenario

Construction sites

metal processing plants

stone processing plants

flour mills

Details

The Stand-On Stand-In Electric Pallet Truck independently developed by TianyuLux has greatly improved the handling efficiency and reduced manpower consumption compared to traditional manual handling. It is especially suitable for large-scale cargo handling and long-term work.

Our Factory

TianyuLux has more than 100 off-road electric pallet truck production personnel, 3 production lines, more than 20 R&D personnel, more than 30 machining equipment, several large laser cutting machines, several stamping equipment, several robotic arm welding equipment, etc.
