Stand-On Stand-In Electric Pallet Truck
Do you want to buy Stand-On Stand-In Electric Pallet Truck from China supplier? TianyuLux is a good choice. We have focused on forklift equipment for many years. Our products can save manpower and improve comfort, covering more than 50 countries and regions around the world. We look forward to becoming your long-term partner in China.

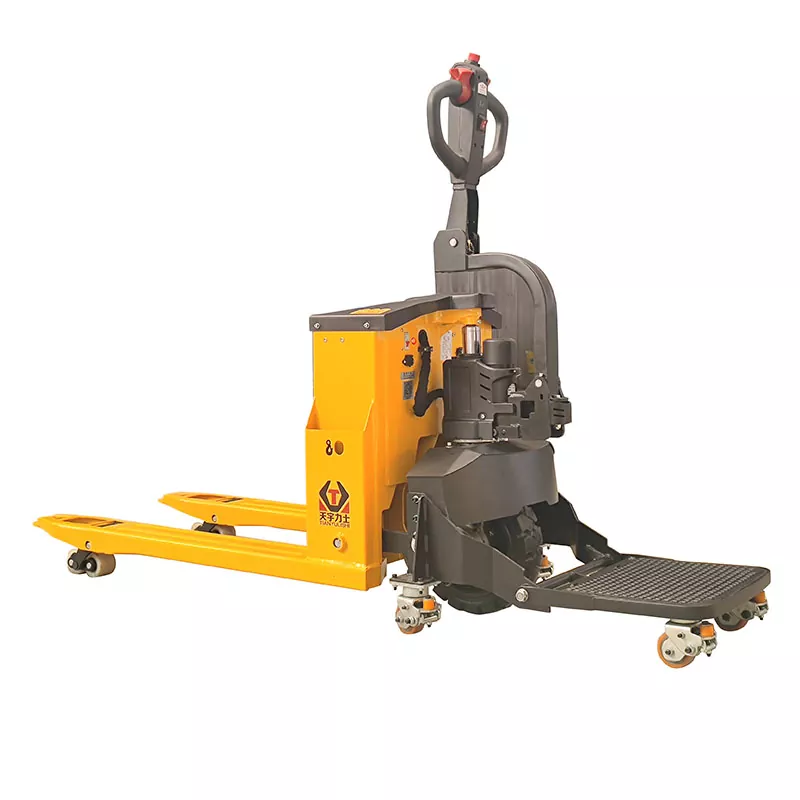

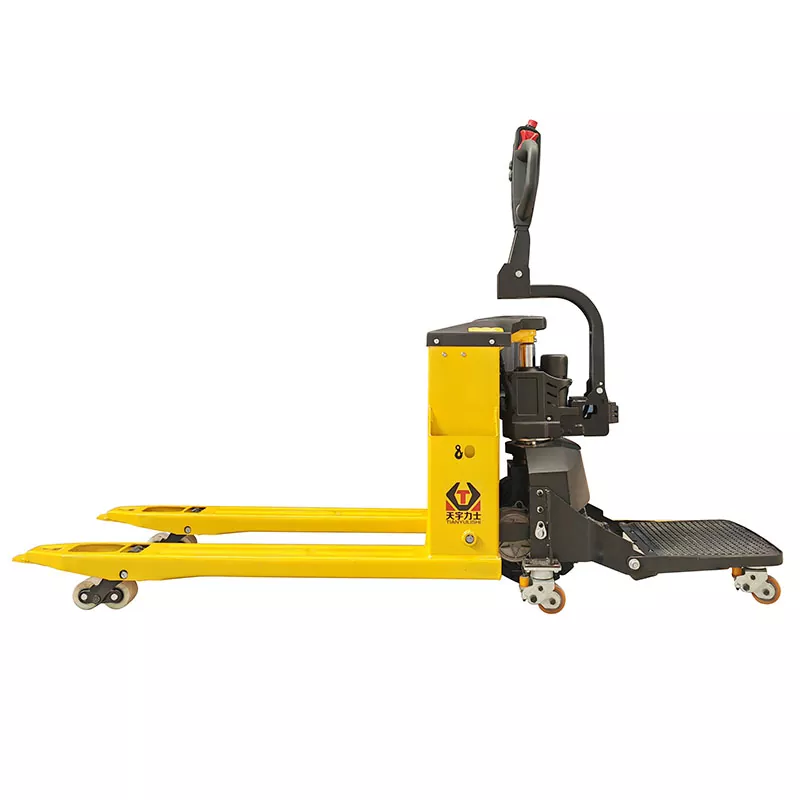

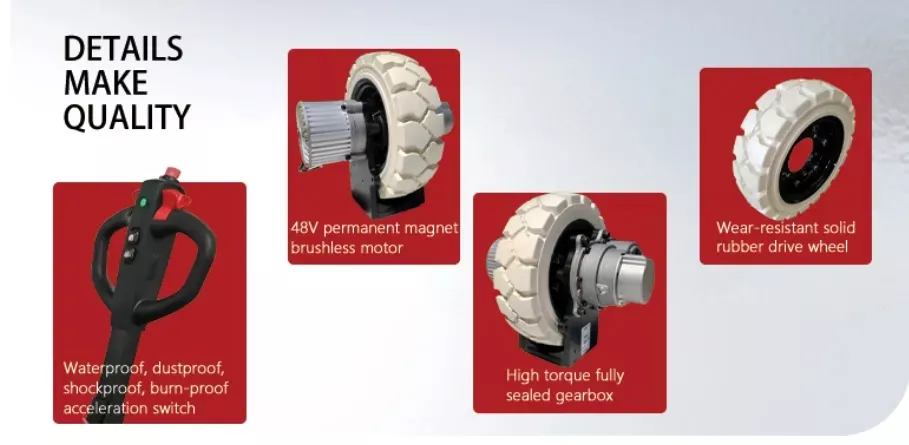

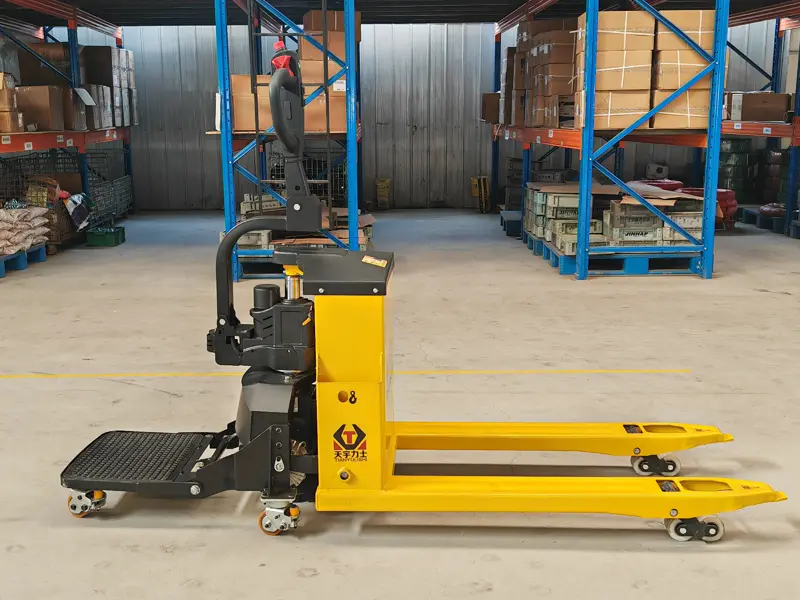

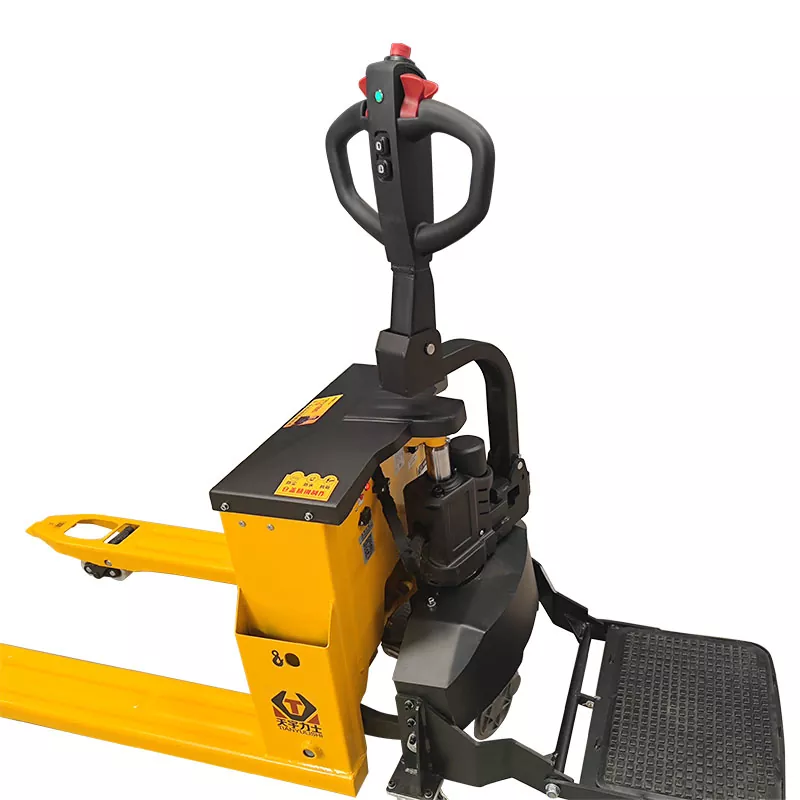

This TianyuLux Stand-On Stand-In Electric Pallet Truck is a new product that is different from traditional electric pallet trucks. The unique operating handle is more ergonomic, which provides workers with a better experience and less tiredness. The pedals can be folded and retracted, which is simple and flexible. Our products use 350*100 large-diameter solid rubber drive tires and can be used in logistics parks, warehouses, factories, and even complex construction sites and wet cold storages. Our products have CE certification and have obtained ISO9001 international quality management system certification during the production process. TianyuLux Stand-On Stand-In Electric Pallet Truck is a good helper for saving manpower and transporting goods over long distances.
Parameter (Specification)
|
Features |
1 |
Model |
|
TYA30 All-electric (Stand-On Lead-acid batteries) |
TYA30 All-electric (Stand-On Lithium battery) |
|
2 |
Power form |
|
Electrical |
Electrical |
|
|
3 |
Operation |
|
Pedestrian |
Pedestrian |
|
|
4 |
Load |
kg |
3000 |
3000 |
|
|
5 |
Load center distance |
mm |
600 |
600 |
|
|
6 |
Wheelbase |
mm |
1230/1300 |
1230/1300 |
|
|
Weight |
7 |
Self weight with battery |
kg |
232 |
205 |
|
Wheel |
8 |
Wheel Type |
|
Front rubber, rear PU/nylon |
Front rubber, rear PU/nylon |
|
9 |
Driving wheel size (diameter×width) |
mm |
φ350×100 |
φ350×100 |
|
|
10 |
Load-bearing wheel size (diameter×width) |
mm |
φ80×70/60 |
φ80×70/60 |
|
|
11 |
Number of wheels Drive side / Load side |
|
1/4 |
1/4 |
|
|
Basic size |
12 |
Maximum height of fork |
mm |
200 |
200 |
|
13 |
Lifting stroke |
mm |
115 |
115 |
|
|
14 |
Minimum height of fork (±2mm) |
mm |
85 |
85 |
|
|
15 |
Fork outer distance |
mm |
550/685 |
550/685 |
|
|
16 |
Fork inner distance |
mm |
250/385,240/365 |
250/385,240/365 |
|
|
17 |
Length of forks |
mm |
1150/1220 |
1150/1220 |
|
|
18 |
Width of forks |
mm |
150/160 |
150/160 |
|
|
19 |
Thickness of forks |
mm |
60 |
60 |
|
|
20 |
Overall width |
mm |
570/685 |
570/685 |
|
|
22 |
Overall height without handle |
mm |
770 |
770 |
|
|
22 |
Overall length |
mm |
1780 |
1780 |
|
|
23 |
Overall height with handle |
mm |
1260 |
1260 |
|
|
24 |
Turning Radius |
mm |
1550 |
1550 |
|
|
Capability |
25 |
Travel speed, laden/unladen |
km/h |
4/4.5 |
4/4.5 |
|
26 |
Lifting speed, laden/unladen |
mm/s |
15/19 |
15/19 |
|
|
27 |
Maximum climbing grade, laden/unladen |
% |
8/16 |
8/16 |
|
|
28 |
Brake type |
|
Electronic brake / electromagnetic brake |
Electronic brake / electromagnetic brake |
|
|
Motor / Battery |
29 |
Rated power of driving motor |
kw |
1.0 |
1.0 |
|
30 |
Rated power of lifting motor |
kw |
0.8 |
0.8 |
|
|
31 |
Battery |
V/Ah |
48/32 |
48/20 |
|
|
32 |
Battery weight |
kg |
36 |
10 |
Feature And Application
TianyuLux is a professional Stand-On Stand-In Electric Pallet Truck factory in China. Our pallet trucks have been completely improved and upgraded to solve the problems of long-distance cargo handling and heavy cargo handling.

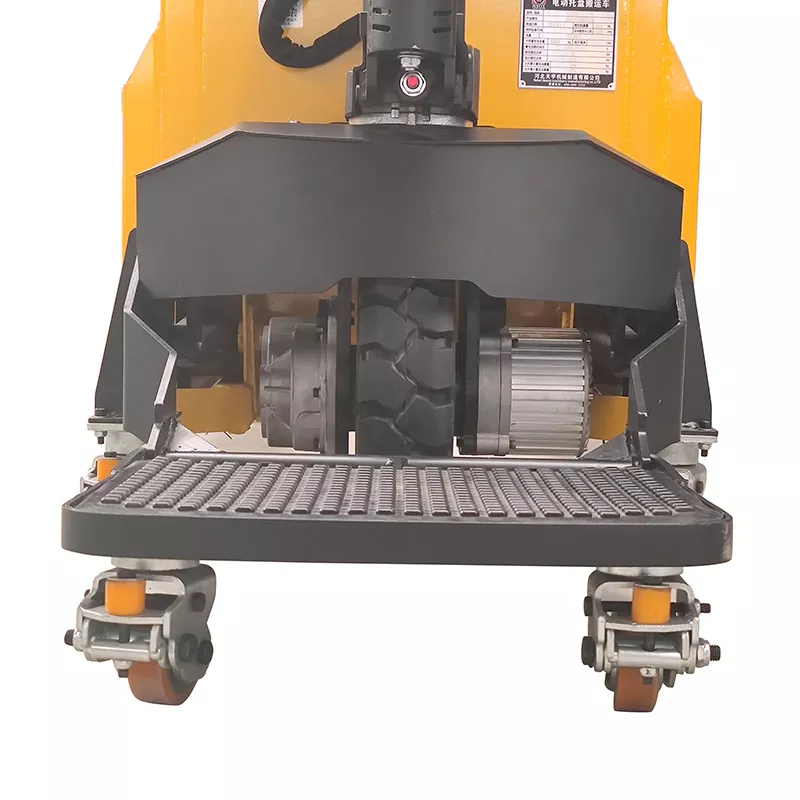

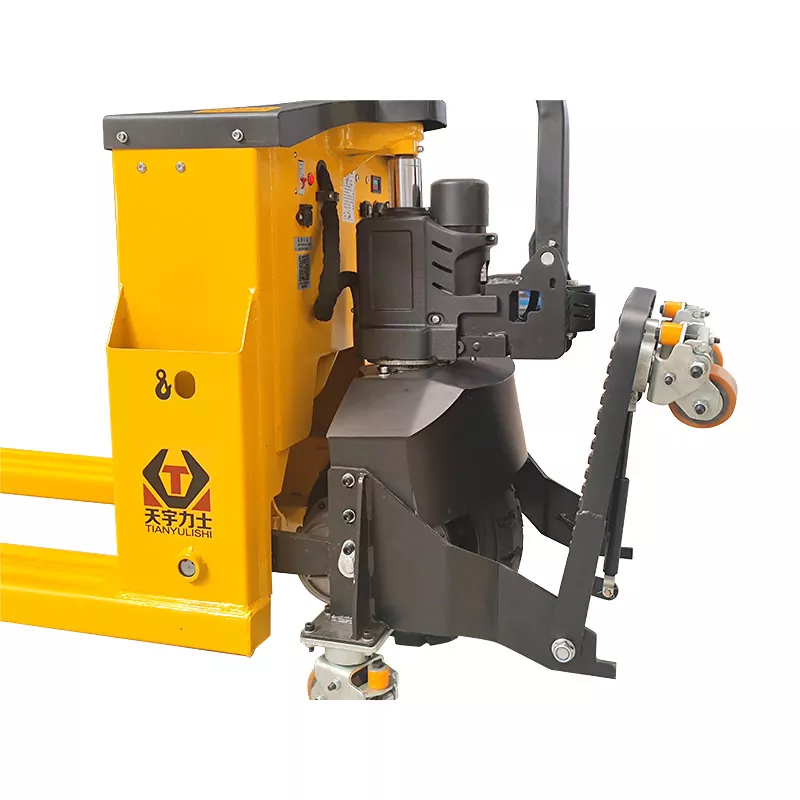

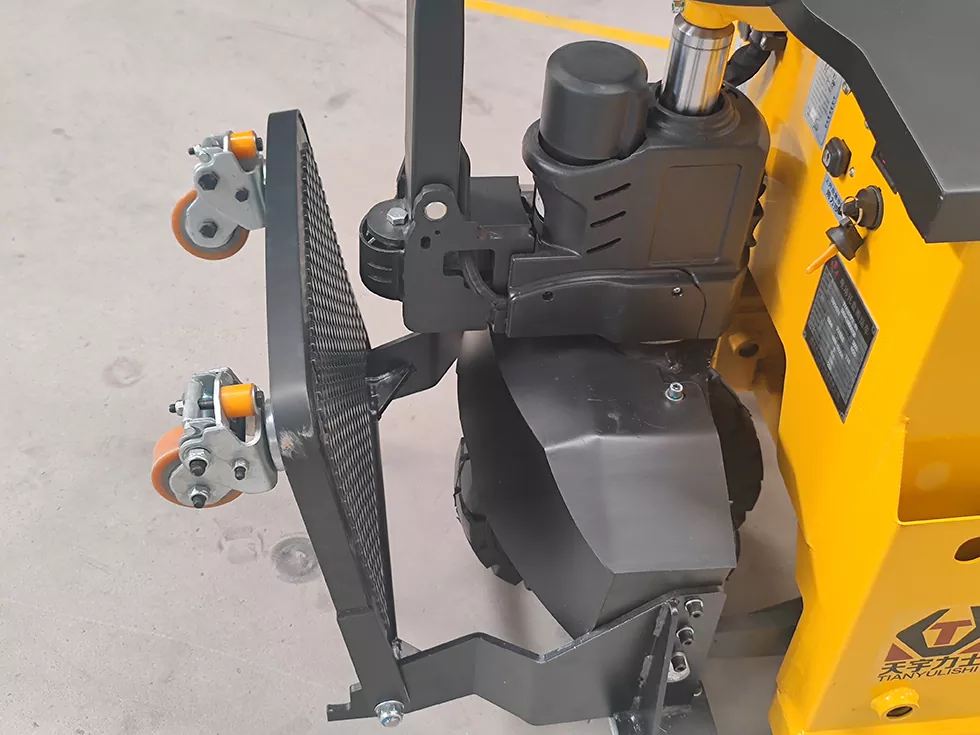

Our Stand-On Stand-In Electric Pallet Truck design adopts an innovative folding pedal system, which makes the pedal retraction and deployment operation easier and more flexible. The operator can easily fold or unfold the pedal with just a push, which greatly facilitates the loading and unloading process of goods. The folding design not only saves space, but also reduces the area occupied by the equipment during transportation or storage, allowing the equipment to be flexibly operated in a small space. Whether in a warehouse, factory, or during transportation, this design can flexibly cope with different scenarios and is very convenient.
Our Stand-On Stand-In Electric Pallet Truck is equipped with rubber-covered pedals, which are designed to improve operational safety. The use of rubber materials not only provides a good anti-slip effect, but also effectively absorbs shock and reduces foot fatigue. Whether in wet, greasy or other slippery environments, the rubber-covered pedals ensure that the operator stands firmly and prevents accidents caused by slips.
Application Scenario
Construction sites
metal processing plants
stone processing plants
flour mills
Details
The Stand-On Stand-In Electric Pallet Truck independently developed by TianyuLux has greatly improved the handling efficiency and reduced manpower consumption compared to traditional manual handling. It is especially suitable for large-scale cargo handling and long-term work.
Our Factory
TianyuLux has more than 100 off-road electric pallet truck production personnel, 3 production lines, more than 20 R&D personnel, more than 30 machining equipment, several large laser cutting machines, several stamping equipment, several robotic arm welding equipment, etc.
