3000kg Off-Road Electric Pallet Truck
As the professional manufacturer, we would like to provide you high quality 3000kg Off-Road Electric Pallet Truck. We have focused on forklift equipment for many years. Our products have good quality and price advantages, covering more than 50 countries and regions around the world. We look forward to becoming your long-term partner in China.

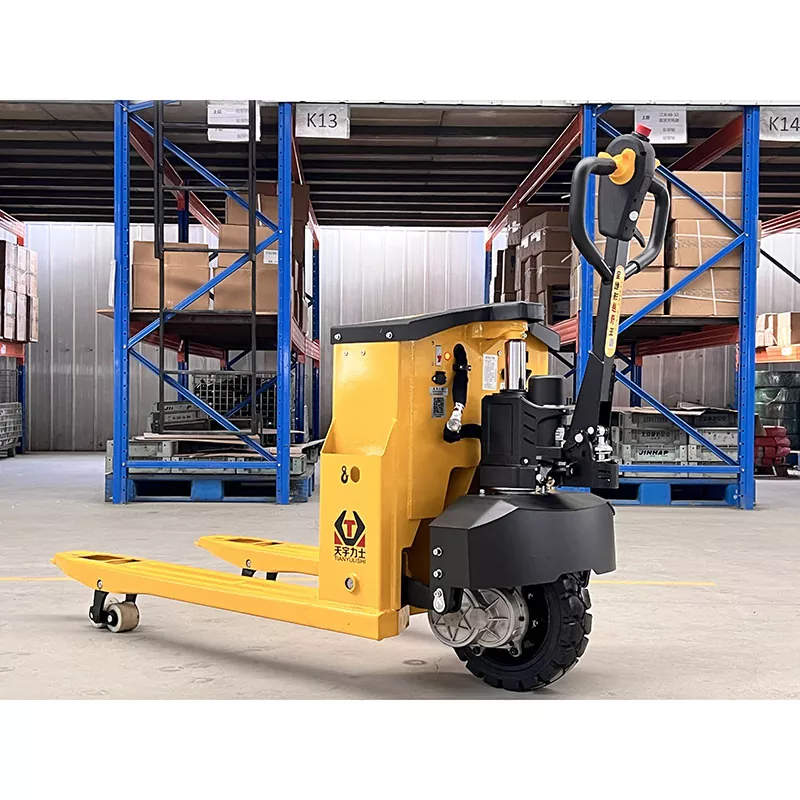

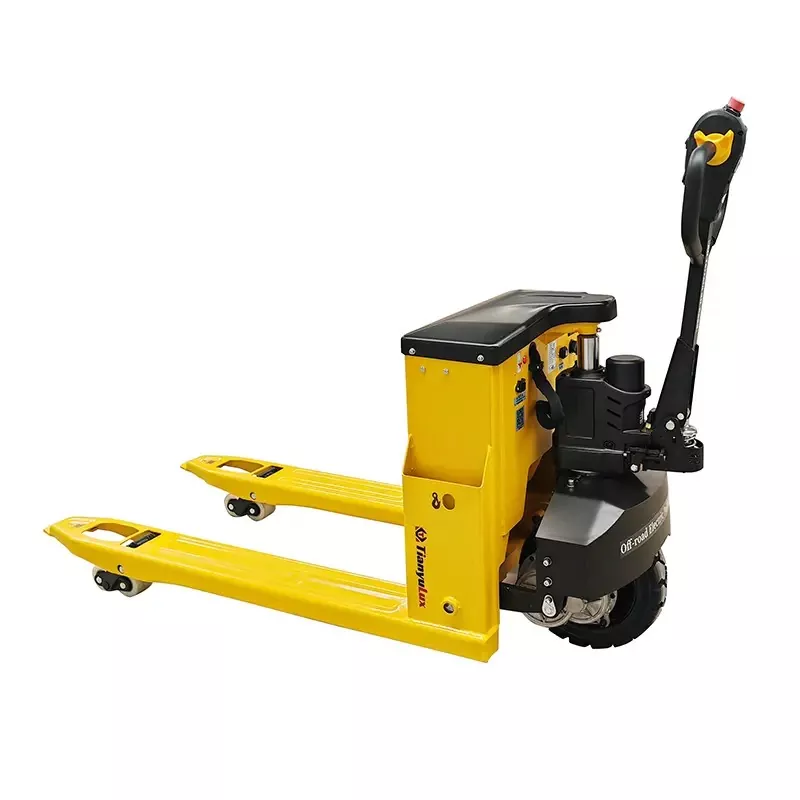

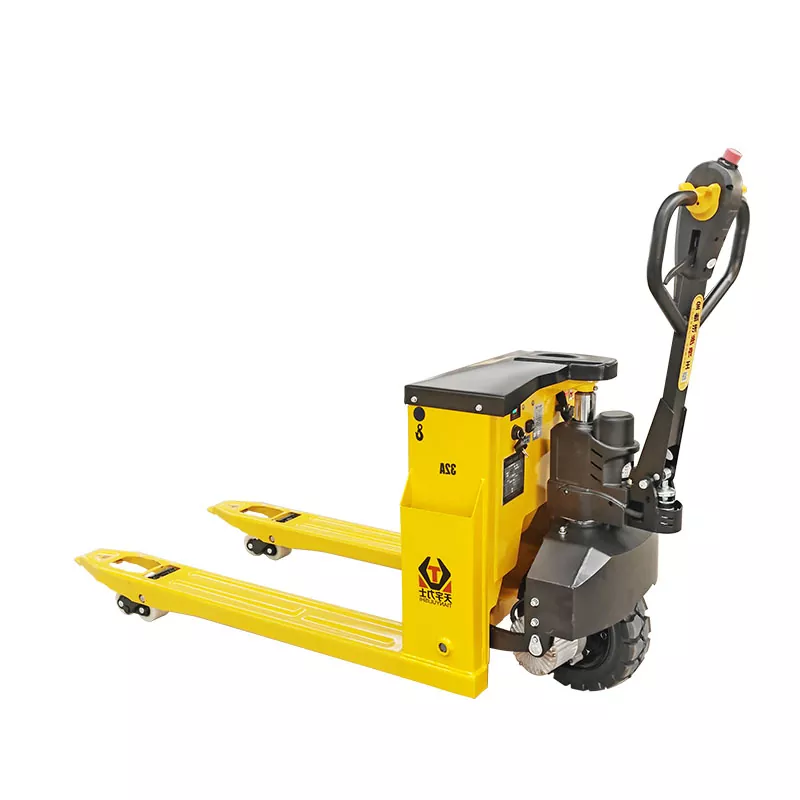

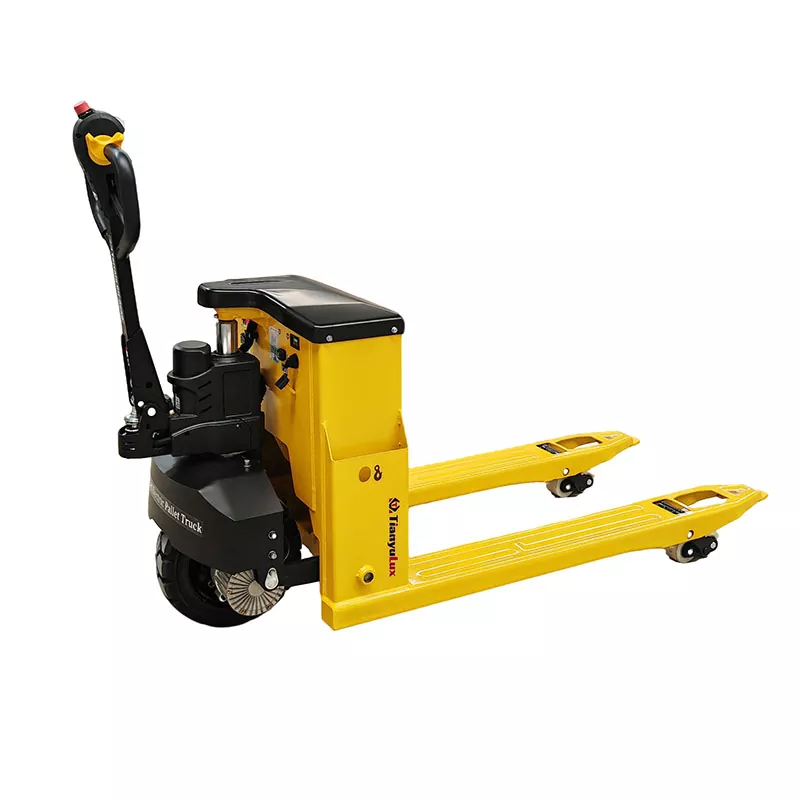

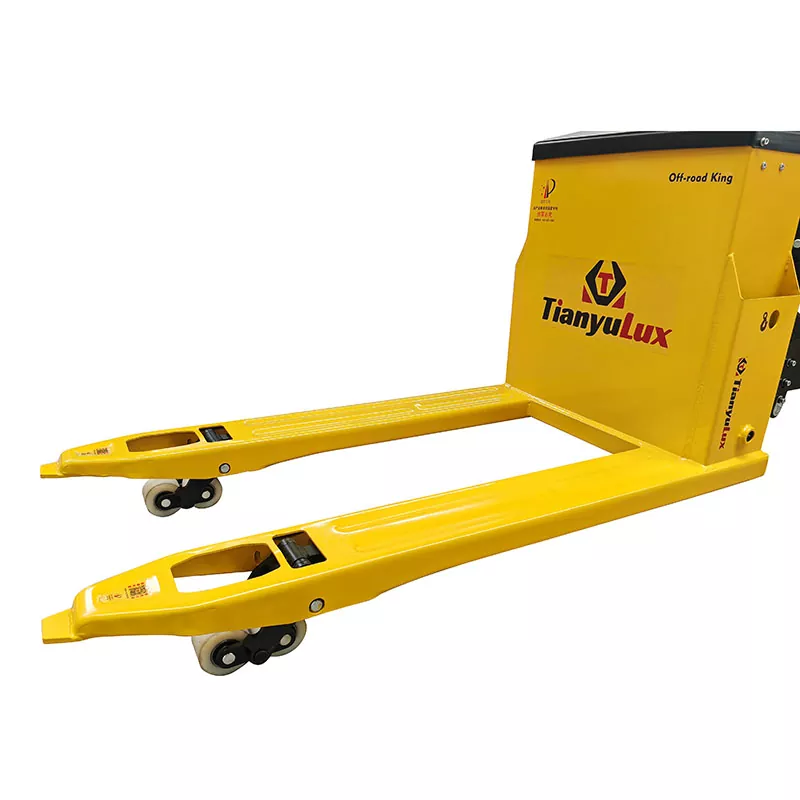

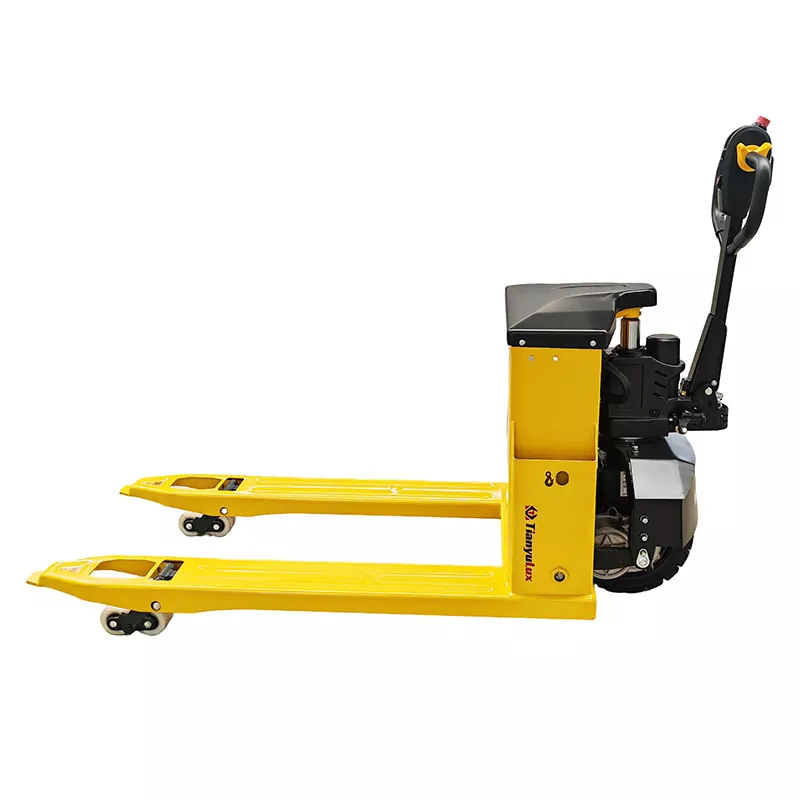

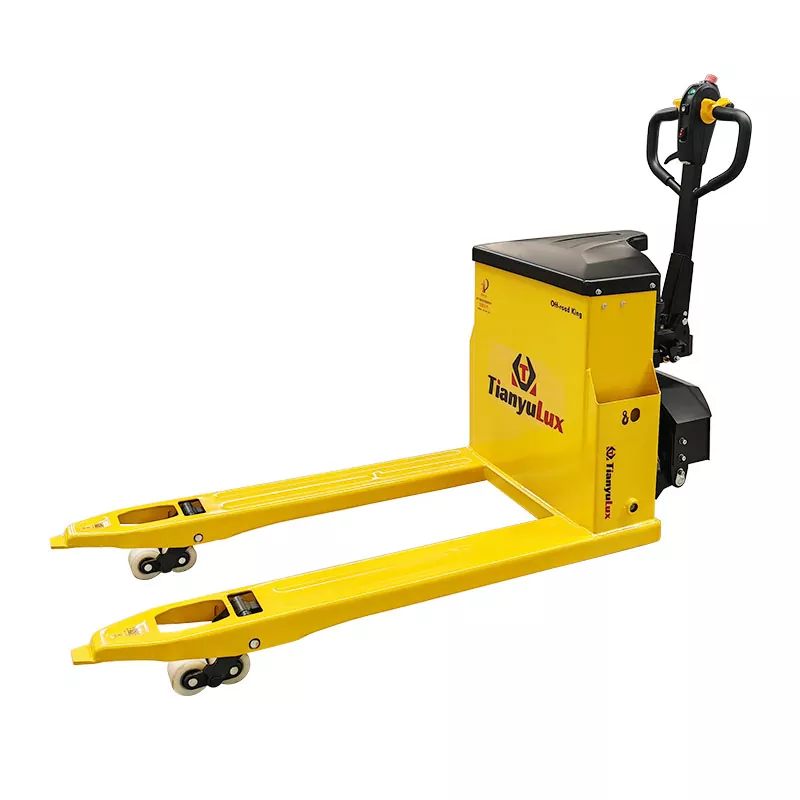

This TianyuLux 3000kg off-road electric pallet truck is a new product that is different from traditional electric pallet trucks. Our product uses 350*100 large-diameter solid rubber drive tires and can be used in logistics parks, warehouses, factories, and even in complex construction sites and wet cold storages. Our products have CE certification and have obtained ISO9001 international quality management system certification in the production process. TianyuLux 3000kg off-road electric pallet truck is a good helper for you to open up new markets and improve your competitiveness.
Parameter (Specification)
|
Features |
1 |
Model |
|
TYA30 All-electric (Champion Edition Lead-acid batteries) |
TYA30 All-electric (Champion Lithium battery) |
|
2 |
Power form |
|
Electrical |
Electrical |
|
|
3 |
Operation |
|
Pedestrian |
Pedestrian |
|
|
4 |
Load |
kg |
3000 |
3000 |
|
|
5 |
Load center distance |
mm |
600 |
600 |
|
|
6 |
Wheelbase |
mm |
1230/1300 |
1230/1300 |
|
|
Weight |
7 |
Self weight with battery |
kg |
212 |
185 |
|
Wheel |
8 |
Wheel Type |
|
Front rubber, rear PU/nylon |
Front rubber, rear PU/nylon |
|
9 |
)Driving wheel size (diameter×width) |
mm |
φ350×100 |
φ350×100 |
|
|
10 |
Load-bearing wheel size (diameter×width) |
mm |
φ80×70/60 |
φ80×70/60 |
|
|
11 |
Number of wheels Drive side / Load side |
|
1/4 |
1/4 |
|
|
Basic size |
12 |
Maximum height of fork |
mm |
200 |
200 |
|
13 |
Lifting stroke |
mm |
115 |
115 |
|
|
14 |
(±2mm)Minimum height of fork (±2mm) |
mm |
85 |
85 |
|
|
15 |
Fork outer distance |
mm |
550/685 |
550/685 |
|
|
16 |
Fork inner distance |
mm |
250/385,240/365 |
250/385,240/365 |
|
|
17 |
Length of forks |
mm |
1150/1220 |
1150/1220 |
|
|
18 |
Width of forks |
mm |
150/160 |
150/160 |
|
|
19 |
Thickness of forks |
mm |
60 |
60 |
|
|
20 |
Overall width |
mm |
570/685 |
570/685 |
|
|
22 |
Overall height without handle |
mm |
770 |
770 |
|
|
22 |
Overall length |
mm |
1780 |
1780 |
|
|
23 |
Overall height with handle |
mm |
1260 |
1260 |
|
|
24 |
Turning Radius |
mm |
1550 |
1550 |
|
|
Capability |
25 |
Travel speed, laden/unladen |
km/h |
4/4.5 |
4/4.5 |
|
26 |
Lifting speed, laden/unladen |
mm/s |
15/19 |
15/19 |
|
|
27 |
Maximum climbing grade, laden/unladen |
% |
8/16 |
8/16 |
|
|
28 |
Brake type |
|
Electronic brake / electromagnetic brake |
Electronic brake / electromagnetic brake |
|
|
Motor / Battery |
29 |
Rated power of driving motor |
kw |
1.0 |
1.0 |
|
30 |
Rated power of lifting motor |
kw |
0.8 |
0.8 |
|
|
31 |
Battery |
V/Ah |
48/32 |
48/20 |
|
|
32 |
Battery weight |
kg |
36 |
10 |
Feature And Application
TianyuLux is a professional 3000kg off-road electric pallet truck factory in China. Our pallet trucks have a wide range of applications. For complex and harsh working conditions such as construction sites, we have upgraded our products in an all-round way.

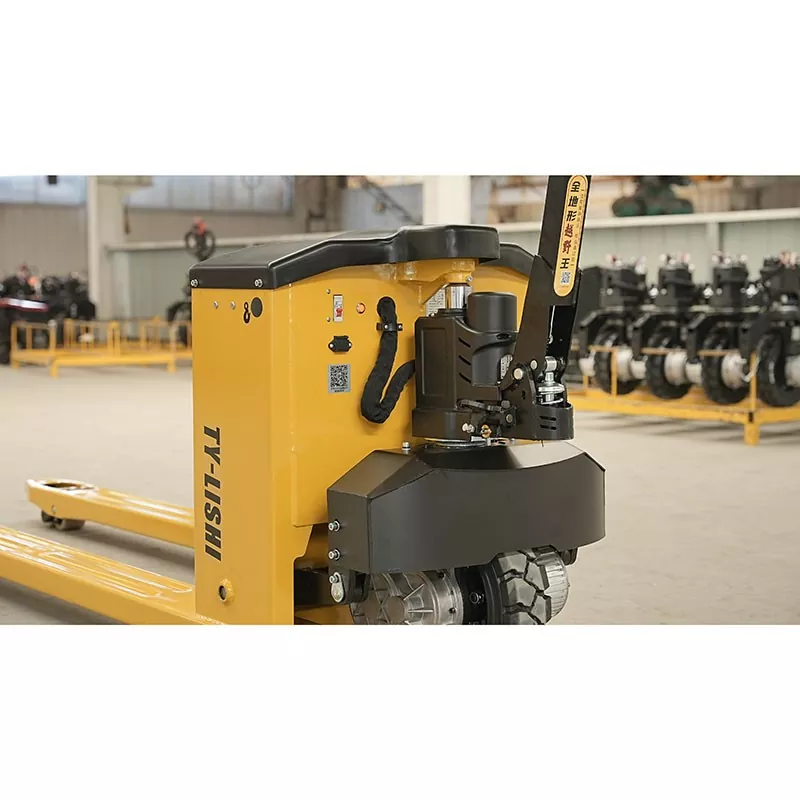

Fully sealed gearbox
We use fully sealed, high-speed ratio, large modulus, and high-torque gearboxes, which can provide strong power in complex and harsh environments and easily cope with steep slopes.
The dustproof and waterproof design can extend the service life by 1-3 times. Dust and water will damage the gears inside the gearbox, and our 3000kg off-road electric pallet truck can minimize or even avoid this situation.
The pallet truck gearbox is 10cm above the ground, which can reduce the bumps on the gearbox housing during use, thereby extending its service life.
The special gearbox grease prevents the grease from detaching from the gear due to the centrifugal force generated when the gear rotates, thereby ensuring that the gear is fully lubricated at all times, reducing noise, reducing wear, and extending service life.
Application Scenario
Construction sites
metal processing plants
stone processing plants
flour mills
Details

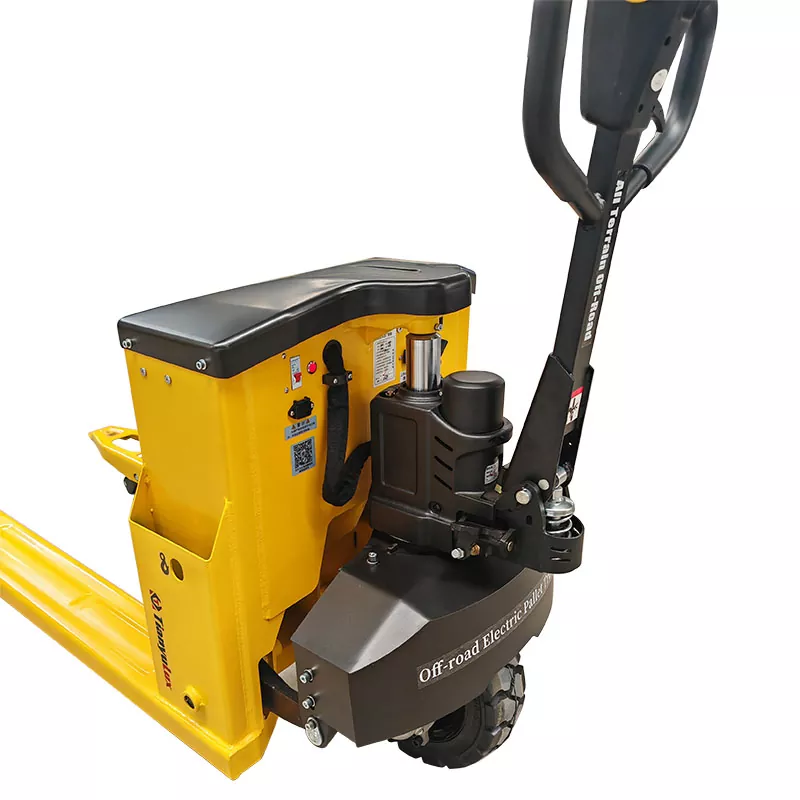

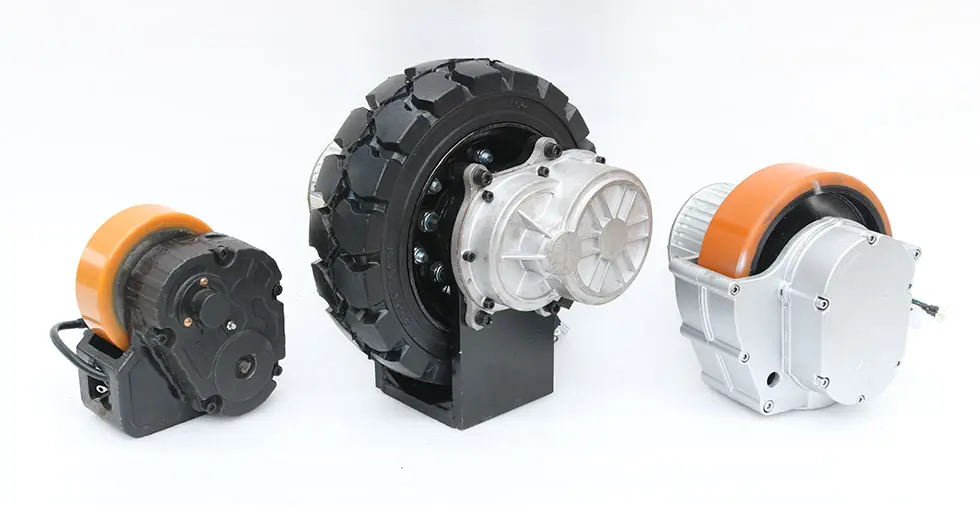

TianyuLux self-developed off-road pallet truck, the core component is the off-road drive assembly, complex working conditions are as easy as walking on flat ground
Our Factory
TianyuLux has more than 100 3000kg off-road electric pallet truck production personnel, 3 production lines, more than 20 R&D personnel, more than 30 machining equipment, several large laser cutting machines, several stamping equipment, several robotic arm welding equipment, etc.
