Off-Road Electric Pallet Truck for Construction Sites
As a professional high quality Off-Road Electric Pallet Truck for Construction Sites manufacturer, we have been focusing on construction site forklift equipment for many years. Our products are designed for complex and harsh environments, with wear-resistant solid rubber tires, thick steel plates for greater durability, and precise and compact design to reduce failure rates.

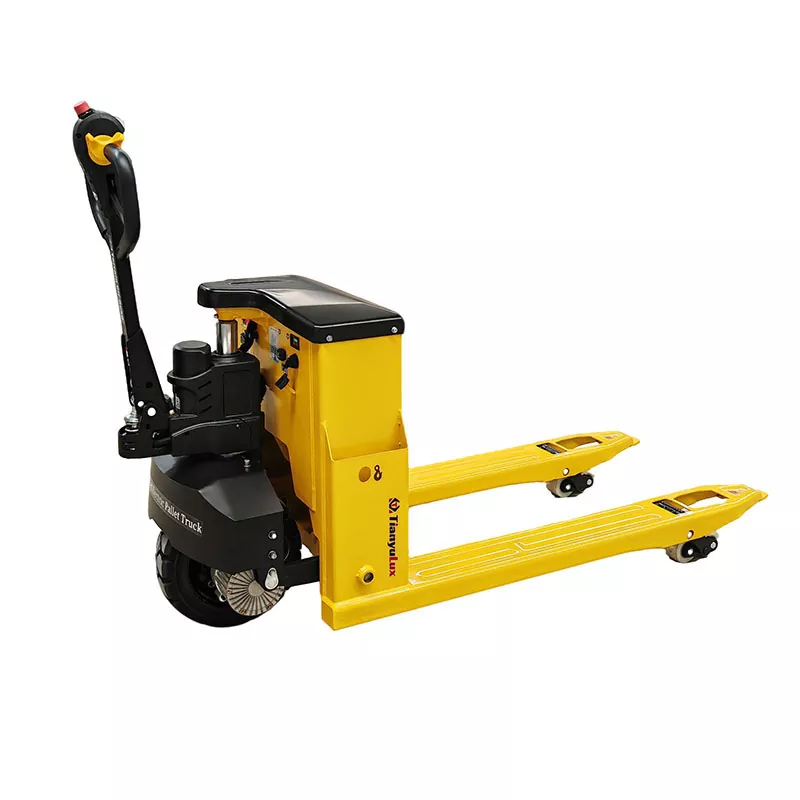

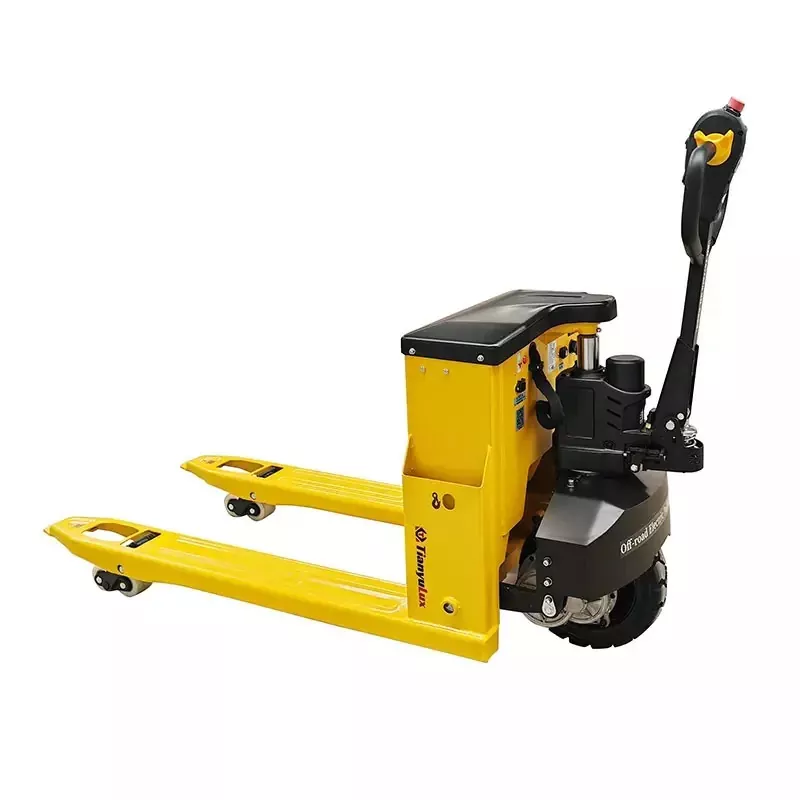

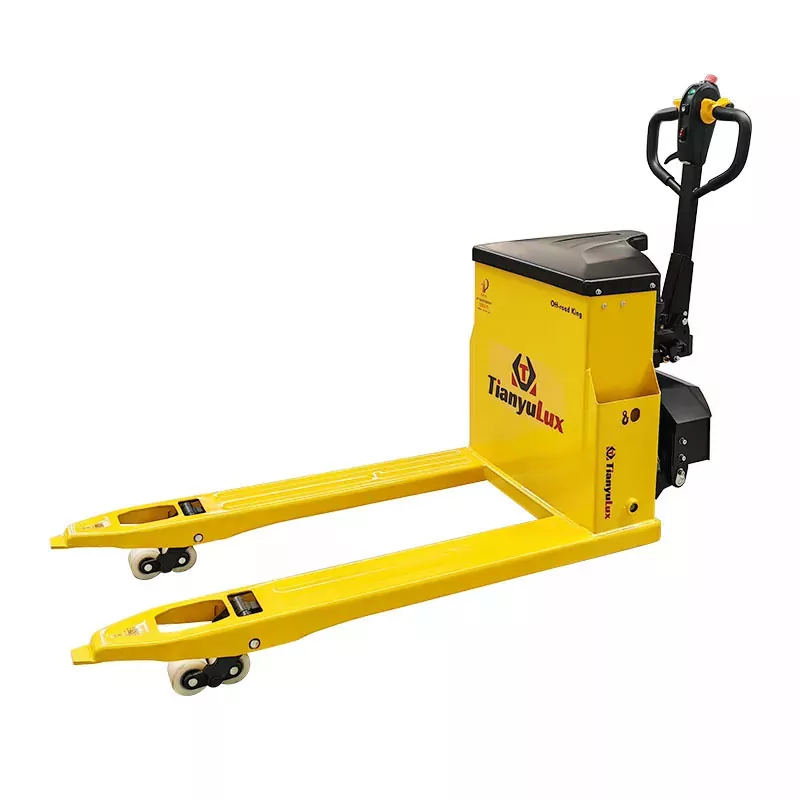

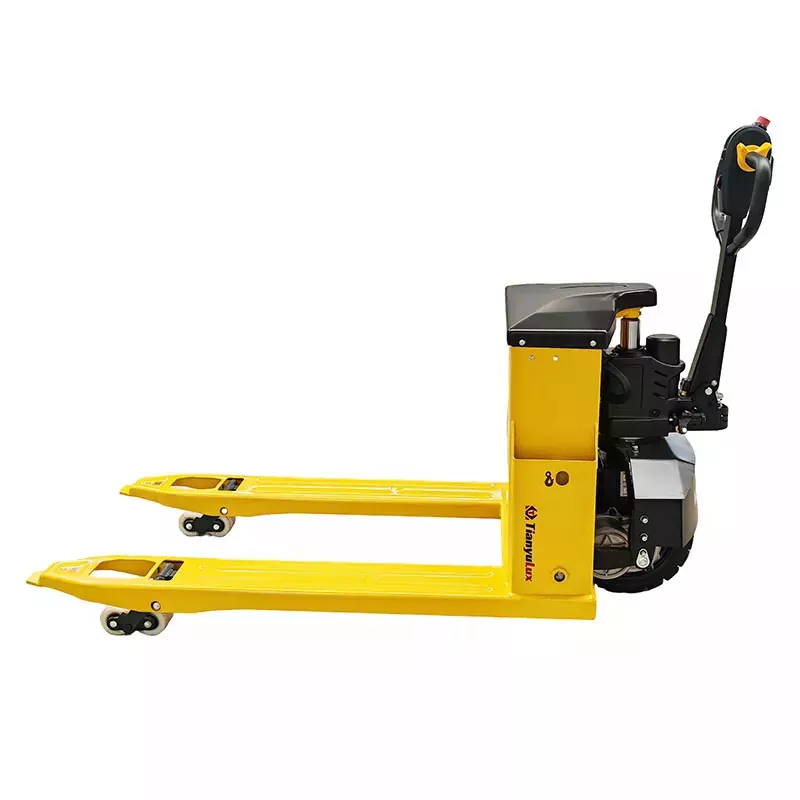

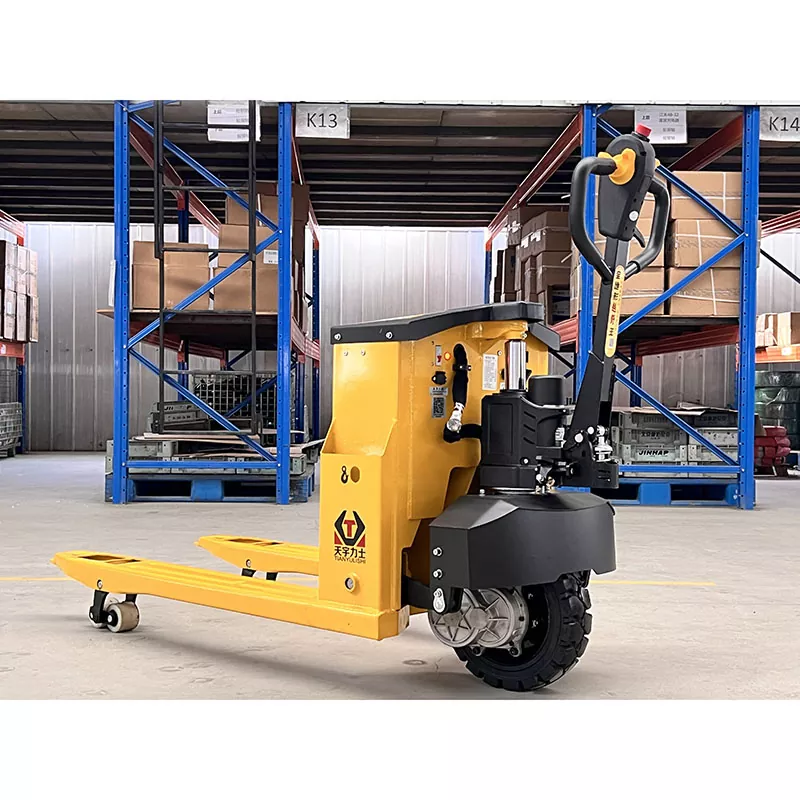

This TianyuLux Off-Road Electric Pallet Truck for Construction Sites is a pallet truck that is very suitable for complex and harsh working conditions such as construction sites. Our product uses 350*100 large-diameter solid rubber drive tires, which can easily cross stones, steel bars, bumpy roads, gravel roads, and dirt roads. The powerful power can help the pallet truck easily pass through large slopes, and the dust-proof and waterproof design also greatly reduces the failure rate. TianyuLux Off-Road Electric Pallet Truck for Construction Sites is your best choice for a construction site pallet truck!
Parameter (Specification)
|
Features |
1 |
Model |
|
TYA30 All-electric (Champion Edition Lead-acid batteries) |
TYA30 All-electric (Champion Lithium battery) |
|
2 |
Power form |
|
Electrical |
Electrical |
|
|
3 |
Operation |
|
Pedestrian |
Pedestrian |
|
|
4 |
Load |
kg |
3000 |
3000 |
|
|
5 |
Load center distance |
mm |
600 |
600 |
|
|
6 |
Wheelbase |
mm |
1230/1300 |
1230/1300 |
|
|
Weight |
7 |
Self weight with battery |
kg |
212 |
185 |
|
Wheel |
8 |
Wheel Type |
|
Front rubber, rear PU/nylon |
Front rubber, rear PU/nylon |
|
9 |
Driving wheel size (diameter×width) |
mm |
φ350×100 |
φ350×100 |
|
|
10 |
Load-bearing wheel size (diameter×width) |
mm |
φ80×70/60 |
φ80×70/60 |
|
|
11 |
Number of wheels Drive side / Load side |
|
1/4 |
1/4 |
|
|
Basic size |
12 |
Maximum height of fork |
mm |
200 |
200 |
|
13 |
Lifting stroke |
mm |
115 |
115 |
|
|
14 |
Minimum height of fork (±2mm) |
mm |
85 |
85 |
|
|
15 |
Fork outer distance |
mm |
550/685 |
550/685 |
|
|
16 |
Fork inner distance |
mm |
250/385,240/365 |
250/385,240/365 |
|
|
17 |
Length of forks |
mm |
1150/1220 |
1150/1220 |
|
|
18 |
Width of forks |
mm |
150/160 |
150/160 |
|
|
19 |
Thickness of forks |
mm |
60 |
60 |
|
|
20 |
Overall width |
mm |
570/685 |
570/685 |
|
|
22 |
Overall height without handle |
mm |
770 |
770 |
|
|
22 |
Overall length |
mm |
1780 |
1780 |
|
|
23 |
Overall height with handle |
mm |
1260 |
1260 |
|
|
24 |
Turning Radius |
mm |
1550 |
1550 |
|
|
Capability |
25 |
Travel speed, laden/unladen |
km/h |
4/4.5 |
4/4.5 |
|
26 |
Lifting speed, laden/unladen |
mm/s |
15/19 |
15/19 |
|
|
27 |
Maximum climbing grade, laden/unladen |
% |
8/16 |
8/16 |
|
|
28 |
Brake type |
|
Electronic brake / electromagnetic brake |
Electronic brake / electromagnetic brake |
|
|
Motor / Battery |
29 |
Rated power of driving motor |
kw |
1.0 |
1.0 |
|
30 |
Rated power of lifting motor |
kw |
0.8 |
0.8 |
|
|
31 |
Battery |
V/Ah |
48/32 |
48/20 |
|
|
32 |
Battery weight |
kg |
36 |
10 |
Feature And Application
TianyuLux is a professional Off-Road Electric Pallet Truck for Construction Sites factory in China. Our pallet trucks are widely used in construction sites. We have fully upgraded our products for complex and harsh working conditions such as construction sites.

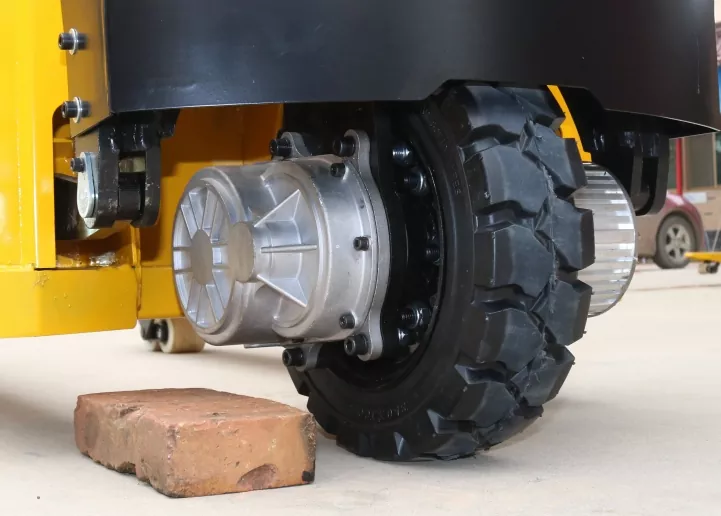

350*100 large-diameter rubber drive tires. Due to the complex environment and poor road conditions on construction sites, traditional pallet truck tires are severely worn and need to be replaced every 3 months. The service life of our large-diameter rubber drive tires on construction sites is 3-6 times that of ordinary tires.
Solid rubber tires provide better grip and can still work normally and smoothly when there is water or sand on the construction site.

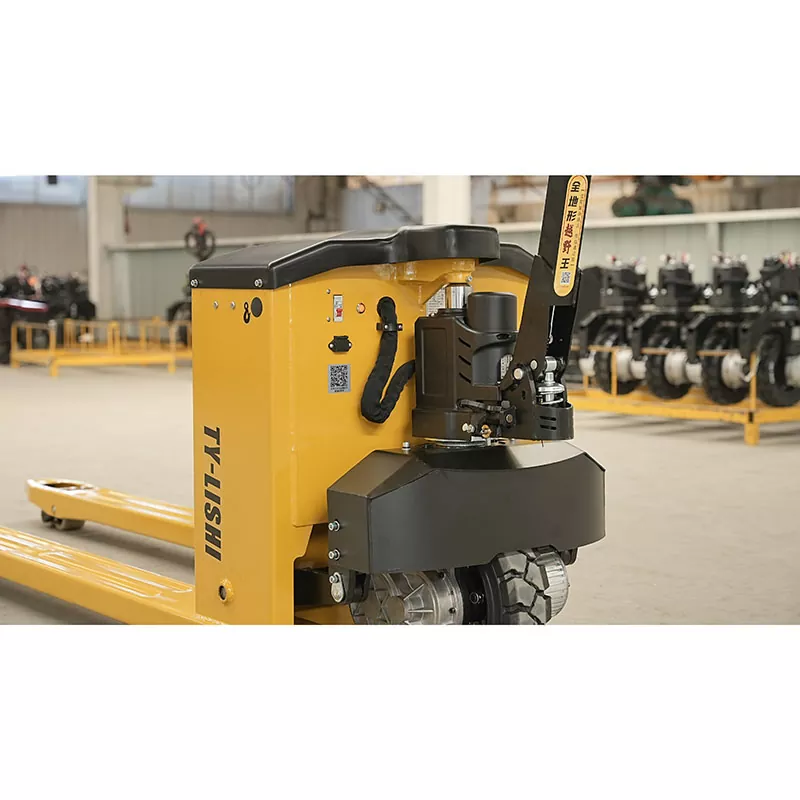

The drive assembly adopts a waterproof and dustproof design, which can reduce the failure rate in harsh environments, thereby increasing the overall service life of the pallet truck, with less sales and after-sales pressure and more customer praise.
The powerful 1kW motor provides huge power, making it very easy to climb slopes or pass through potholes on construction sites, saving manpower and material resources and improving work efficiency.
We use a fully sealed, high-speed ratio, large modulus, and high-torque gearbox that can provide strong power in complex and harsh environments and easily cope with steep slopes.
Application Scenario

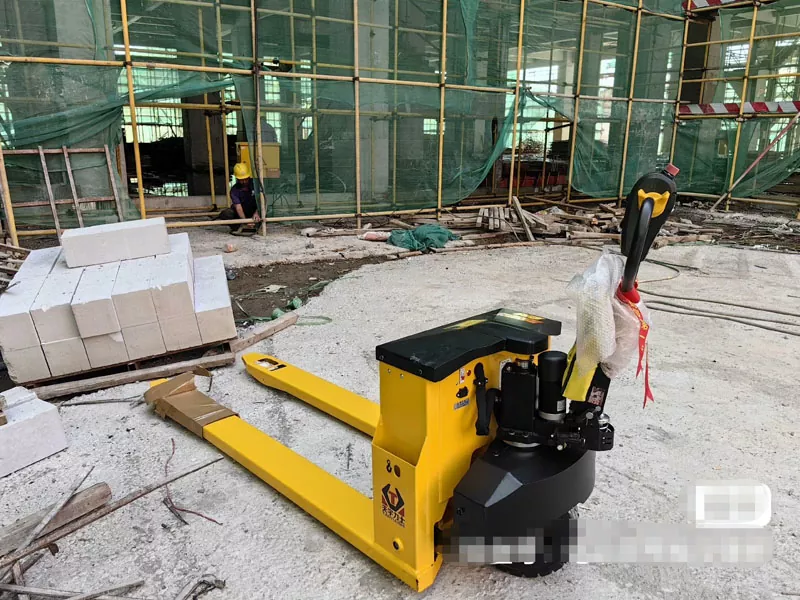

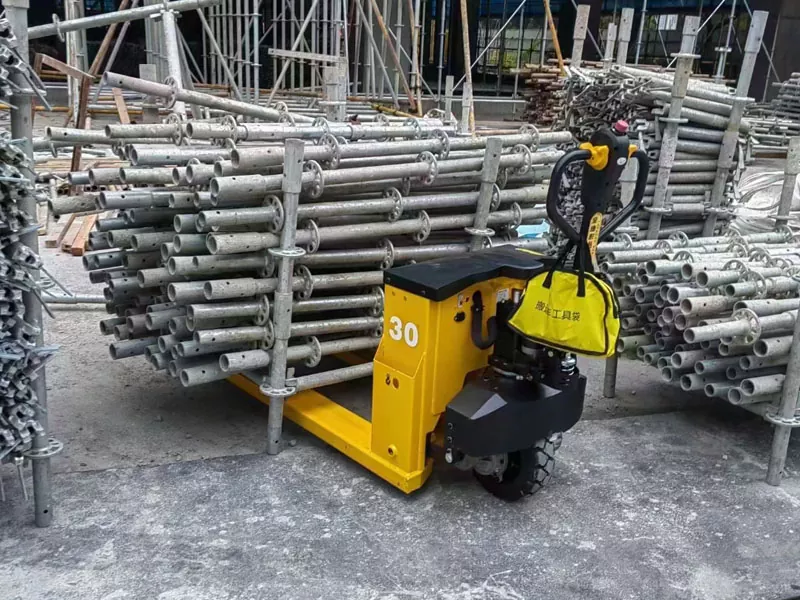

Construction sites

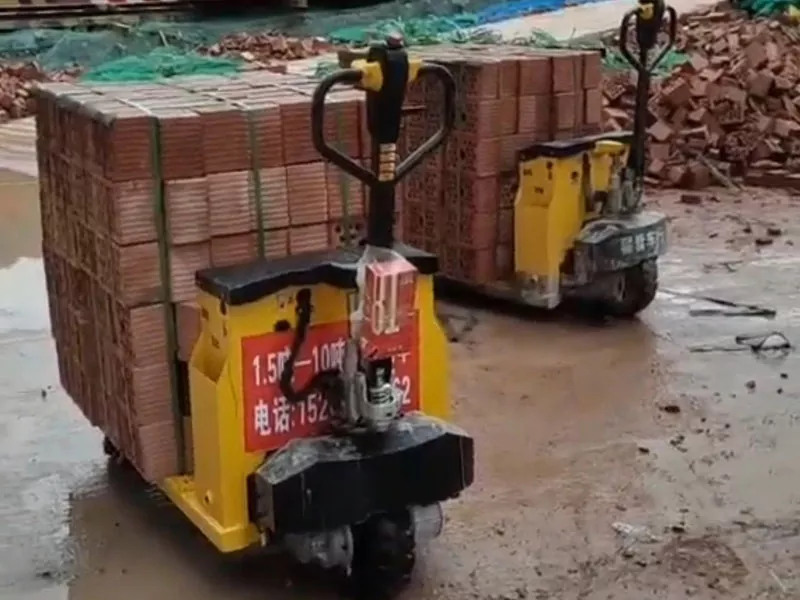

Muddy road

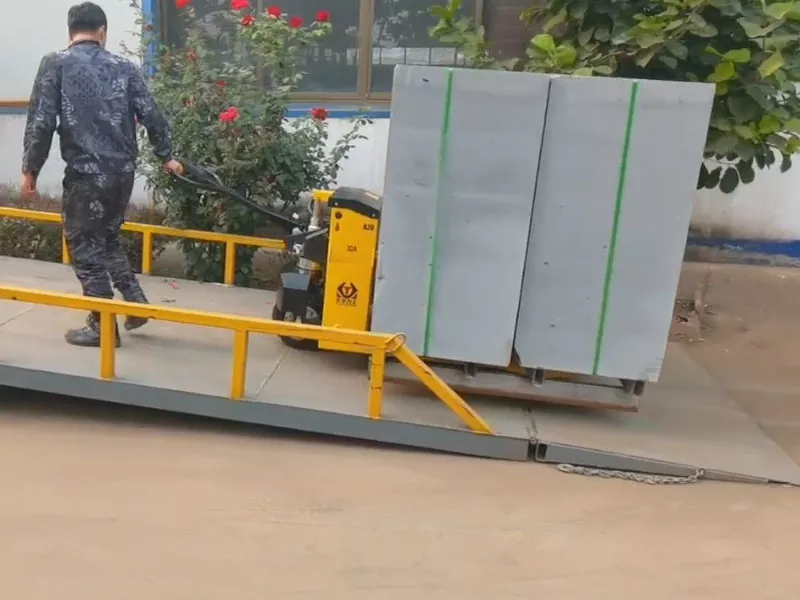

Steep slope
Gravel road surface
Details

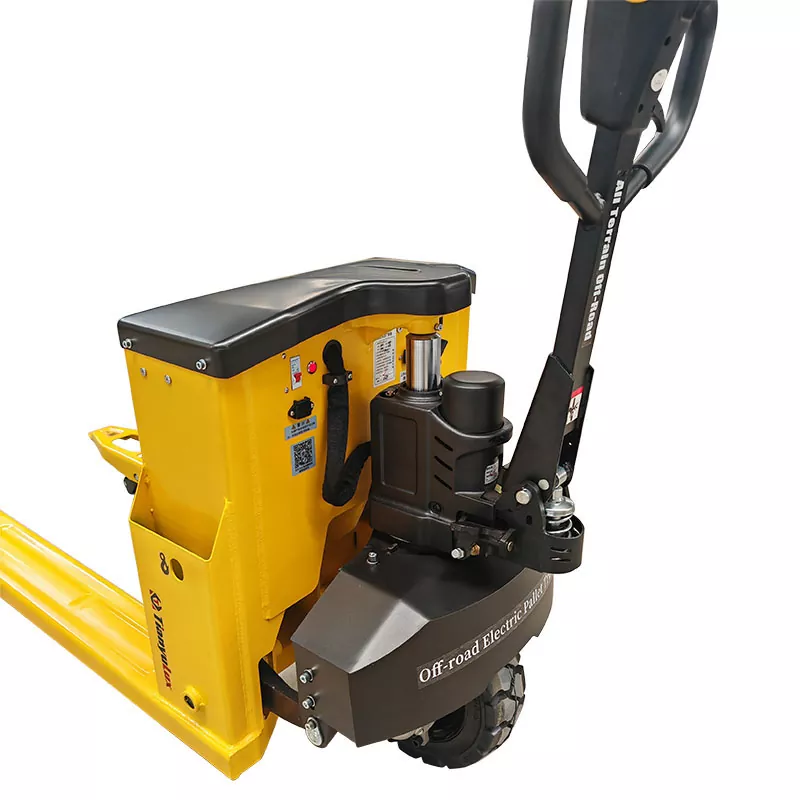

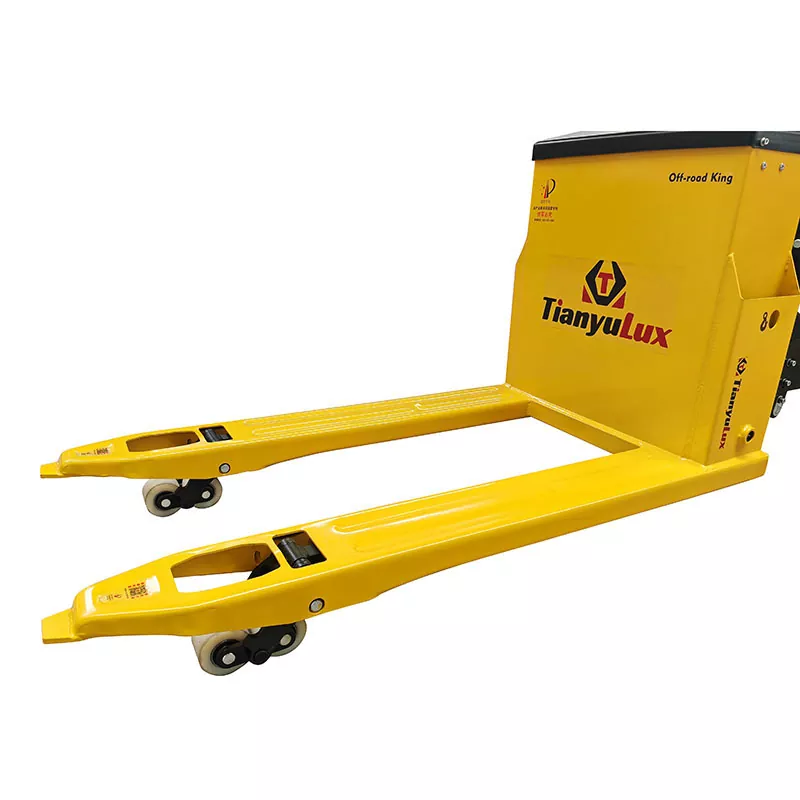

TianyuLux independently developed theOff-Road Electric Pallet Truck for Construction Sites. The durable drive assembly is the key to coping with the complex environment of the construction site. The thick fork is more wear-resistant, and the one-piece stamped fork has higher strength and strong load-bearing capacity.
Our Factory
TianyuLux has more than 100 off-road electric pallet truck production personnel, 3 production lines, more than 20 R&D personnel, more than 30 machining equipment, several large laser cutting machines, several stamping equipment, several robotic arm welding equipment, etc.
