Off-Road Electric Pallet Jack
TianyuLux is one of the leading Off-Road Electric Pallet Jack manufacturers in China, manufacturing and selling forklift equipment for many years! Our factory focuses on R&D and innovation, strictly controls product quality, and has obtained ISO9001 quality management system certification. Our Pallet Jacks are exported to more than 50 countries and regions around the world. For more information, contact us and send you the quotation now.

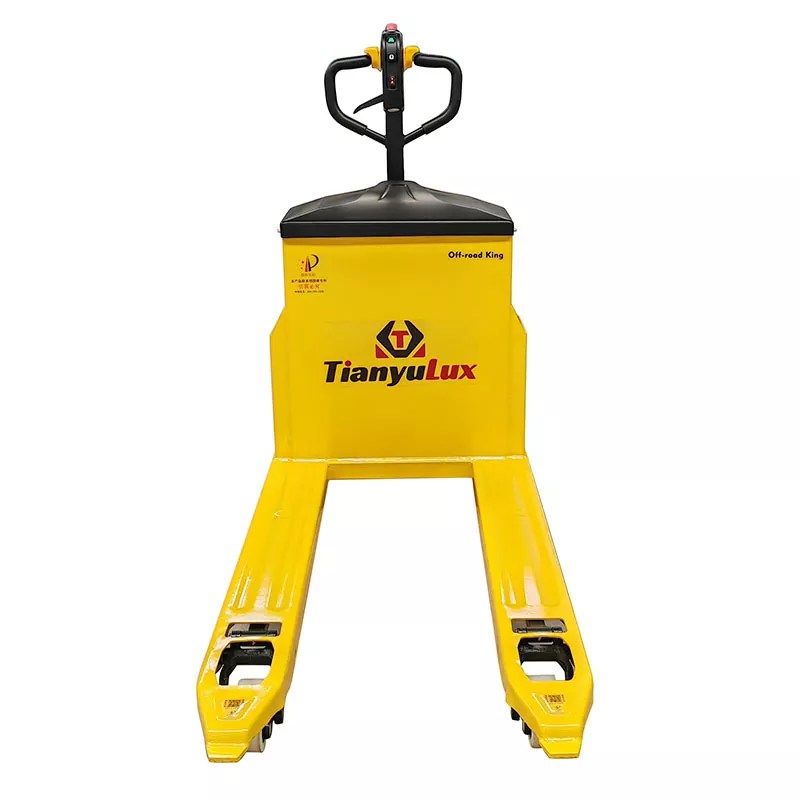

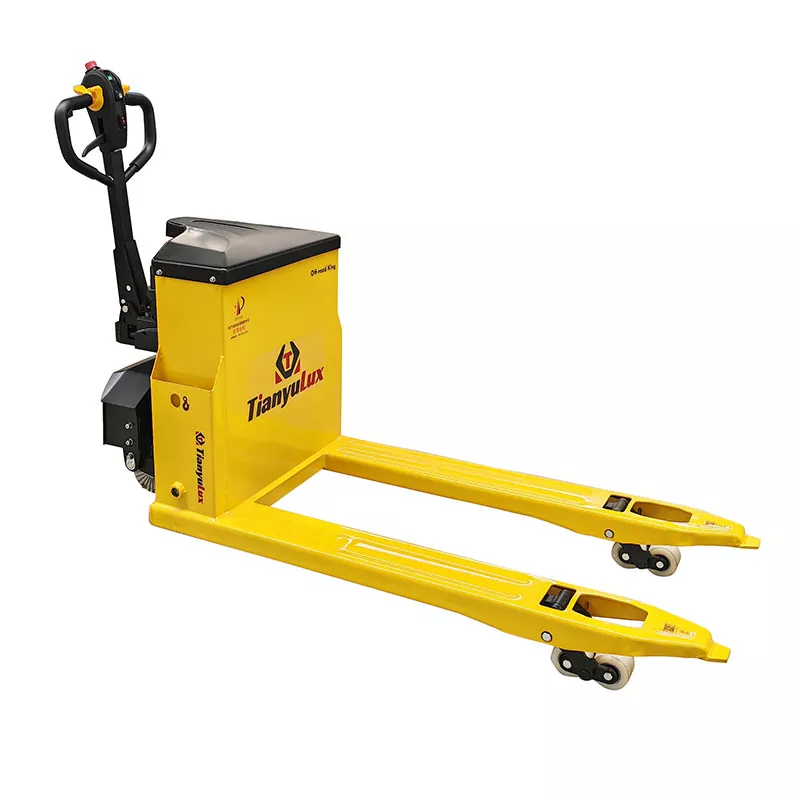

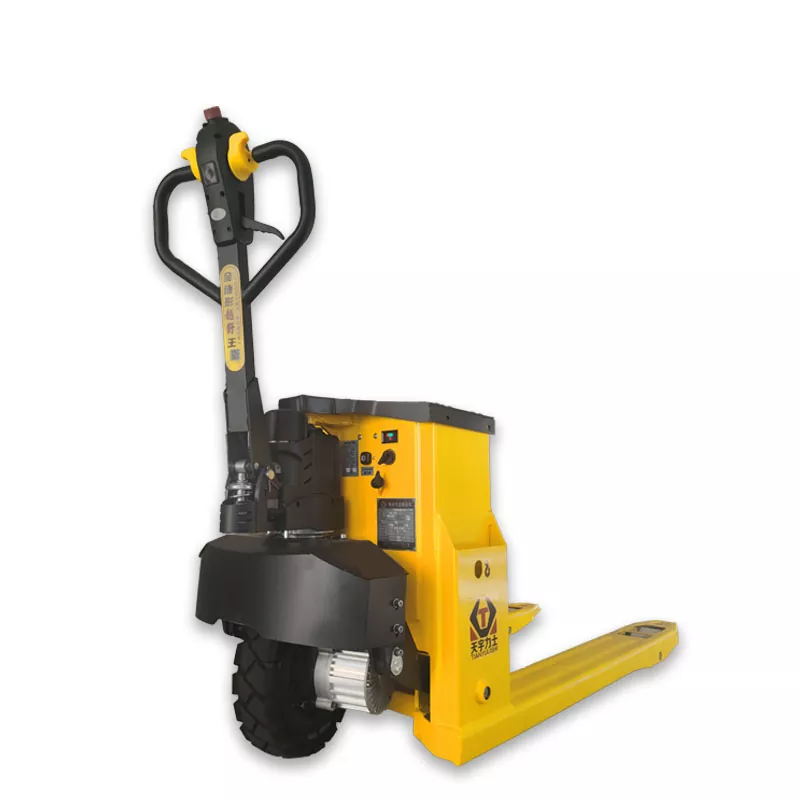

This TianyuLux Off-Road Electric Pallet Jack is a new product that combines the advantages of traditional Pallet Jack and innovative off-road capabilities, with the aim of providing customers with a Pallet Jack that can be used on all kinds of roads. Our pallet truck has developed a new "four protection" control handle that is waterproof, dustproof, shockproof, and burn-proof. It is more durable and worry-free, and has applied for a national patent. Our products have CE certification and have obtained ISO9001 international quality management system certification during the production process. TianyuLux off-road electric pallet truck is a good helper for you to open up new markets and improve your competitiveness.
Parameter (Specification)
|
Features |
1 |
Model |
|
TYA30 All-electric (Champion Edition Lead-acid batteries) |
TYA30 All-electric (Champion Lithium battery) |
|
2 |
Power form |
|
Electrical |
Electrical |
|
|
3 |
Operation |
|
Pedestrian |
Pedestrian |
|
|
4 |
Load |
kg |
3000 |
3000 |
|
|
5 |
Load center distance |
mm |
600 |
600 |
|
|
6 |
Wheelbase |
mm |
1230/1300 |
1230/1300 |
|
|
Weight |
7 |
Self weight with battery |
kg |
212 |
185 |
|
Wheel |
8 |
Wheel Type |
|
Front rubber, rear PU/nylon |
Front rubber, rear PU/nylon |
|
9 |
Driving wheel size (diameter×width) |
mm |
φ350×100 |
φ350×100 |
|
|
10 |
Load-bearing wheel size (diameter×width) |
mm |
φ80×70/60 |
φ80×70/60 |
|
|
11 |
Number of wheels Drive side / Load side |
|
1/4 |
1/4 |
|
|
Basic size |
12 |
Maximum height of fork |
mm |
200 |
200 |
|
13 |
Lifting stroke |
mm |
115 |
115 |
|
|
14 |
Minimum height of fork (±2mm) |
mm |
85 |
85 |
|
|
15 |
Fork outer distance |
mm |
550/685 |
550/685 |
|
|
16 |
Fork inner distance |
mm |
250/385,240/365 |
250/385,240/365 |
|
|
17 |
Length of forks |
mm |
1150/1220 |
1150/1220 |
|
|
18 |
Width of forks |
mm |
150/160 |
150/160 |
|
|
19 |
Thickness of forks |
mm |
60 |
60 |
|
|
20 |
Overall width |
mm |
570/685 |
570/685 |
|
|
22 |
Overall height without handle |
mm |
770 |
770 |
|
|
22 |
Overall length |
mm |
1780 |
1780 |
|
|
23 |
Overall height with handle |
mm |
1260 |
1260 |
|
|
24 |
Turning Radius |
mm |
1550 |
1550 |
|
|
Capability |
25 |
Travel speed, laden/unladen |
km/h |
4/4.5 |
4/4.5 |
|
26 |
Lifting speed, laden/unladen |
mm/s |
15/19 |
15/19 |
|
|
27 |
Maximum climbing grade, laden/unladen |
% |
8/16 |
8/16 |
|
|
28 |
Brake type |
|
Electronic brake / electromagnetic brake |
Electronic brake / electromagnetic brake |
|
|
Motor / Battery |
29 |
Rated power of driving motor |
kw |
1.0 |
1.0 |
|
30 |
Rated power of lifting motor |
kw |
0.8 |
0.8 |
|
|
31 |
Battery |
V/Ah |
48/32 |
48/20 |
|
|
32 |
Battery weight |
kg |
36 |
10 |
Feature And Application
TianyuLux is a professional Off-Road Electric Pallet Jack factory in China. Our Pallet Jack is a new product. In view of the small application range and small load capacity of traditional Pallet Jack, our R&D personnel have made all-round improvements and upgrades, adding a stronger powertrain, higher load capacity (3000kg/5000kg) and more customization options.
50mm diameter cylinder rod. The traditional 3-ton pallet truck on the market uses a 40mm cylinder rod, and our Off-Road Electric Pallet Jack uses a 50mm diameter cylinder rod, which has a higher safety factor, stronger load capacity and longer service life.
Our cylinder is designed with a limit and anti-top function, without the need for an external limit switch, which is safe and reliable. Ordinary Pallet Jack cylinders need to rely on external limit switches for limit. Once the limit switch is damaged and fails, the cylinder will be damaged and difficult to repair.

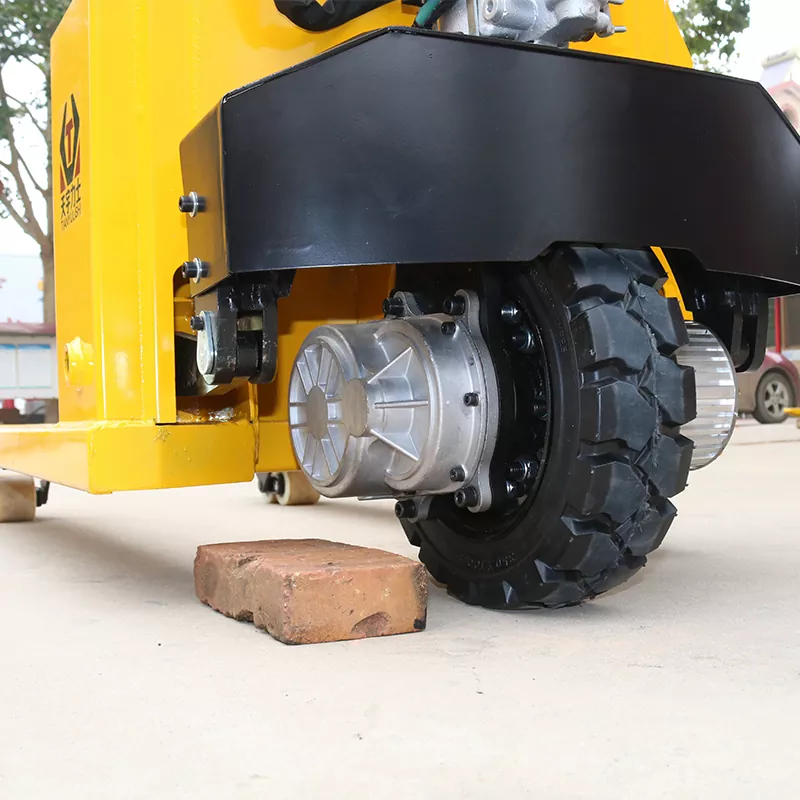

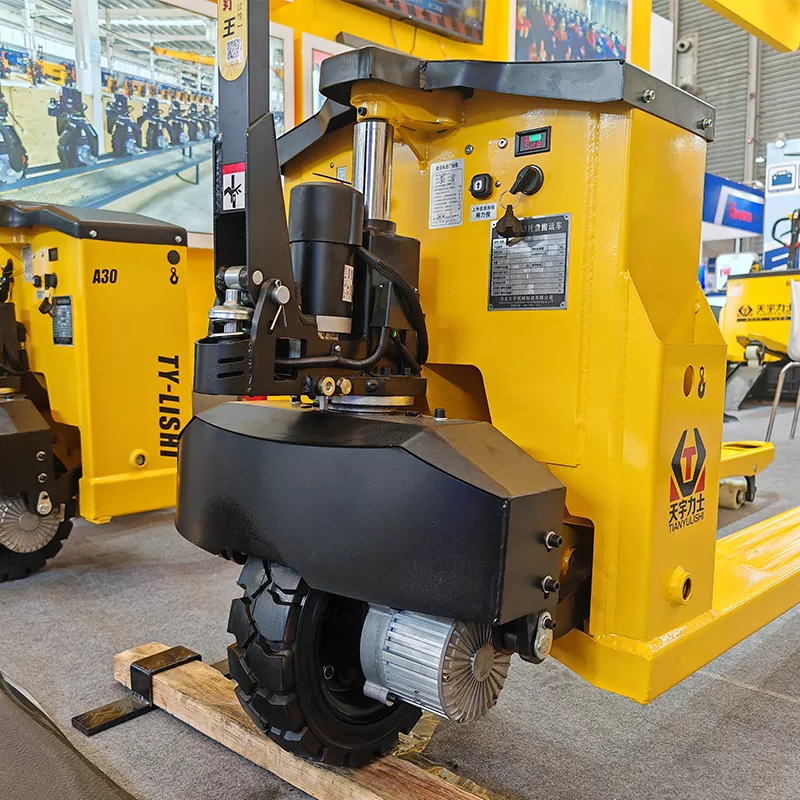

TianyuLux uses a high-power 1000w permanent magnet brushless maintenance-free large DC motor specially designed for forklifts, which supports high-frequency and long-term continuous operation.
Application Scenario
Construction sites
metal processing plants
stone processing plants
flour mills
Details

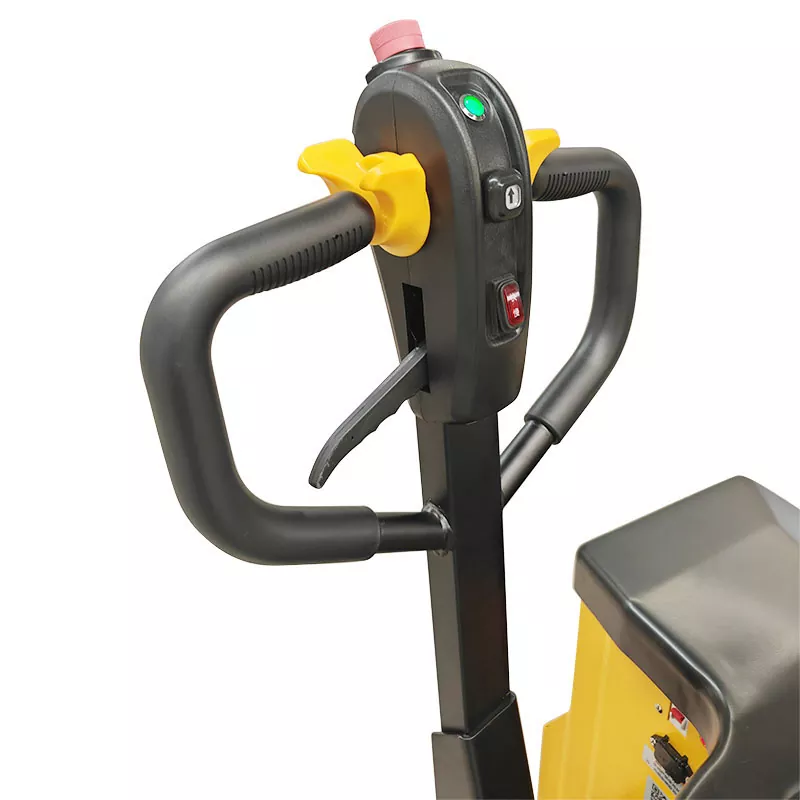

TianyuLux's innovatively developedOff-Road Electric Pallet Jack has an innovative patented design for the acceleration handle. It has four patents for waterproof, dustproof, shockproof, and burn-proof. It can effectively prevent water, mud, dust, etc. from damaging the switch, adapt to various harsh environments, and has a lower failure rate.

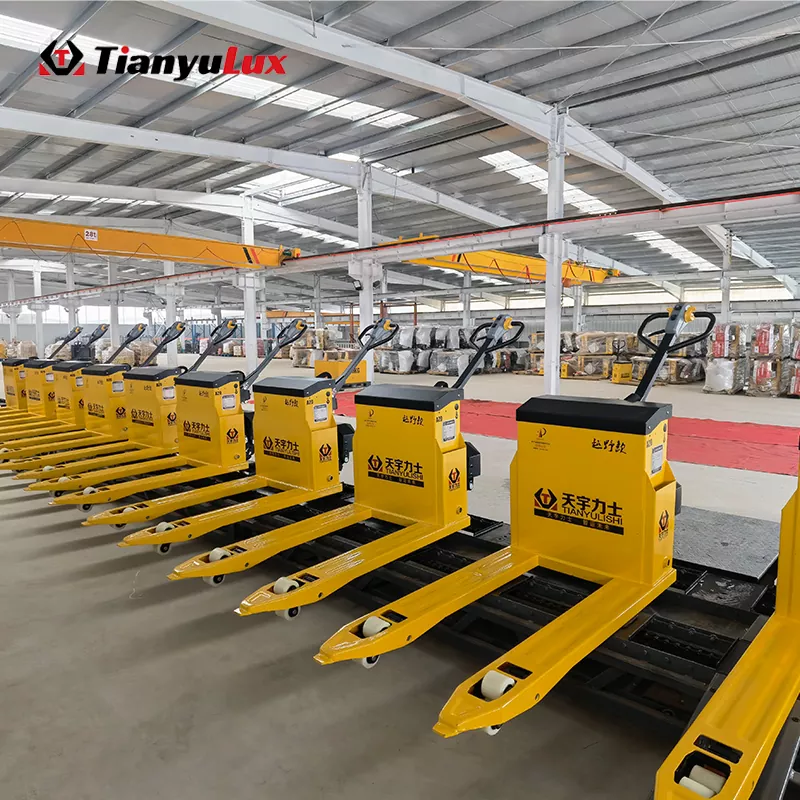

Our Factory
TianyuLux has more than 100 off-road electric pallet truck production personnel, 3 production lines, more than 20 R&D personnel, more than 30 machining equipment, several large laser cutting machines, several stamping equipment, several robotic arm welding equipment, etc.
