5000kg Off-Road Electric Pallet Truck
TianyuLux is a China 5000kg Off-Road Electric Pallet Truck producer & supplier. We have focused on forklift equipment for many years. Our products are new market products that can help dealer partners gain new customers, and our customers cover more than 50 countries and regions around the world.We always feel that all success of our company is directly related to the quality of the products we offer.

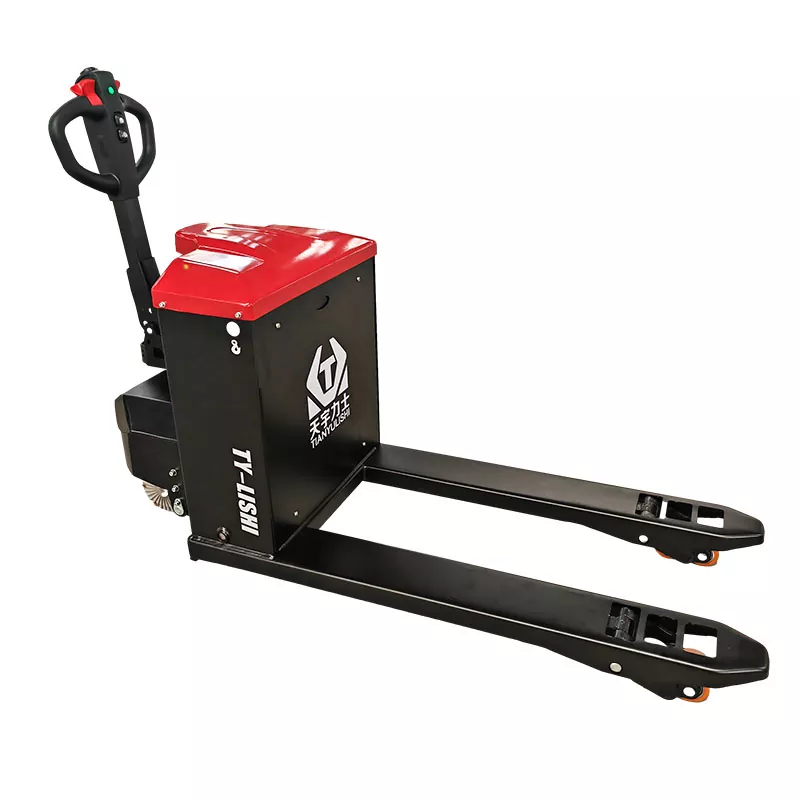

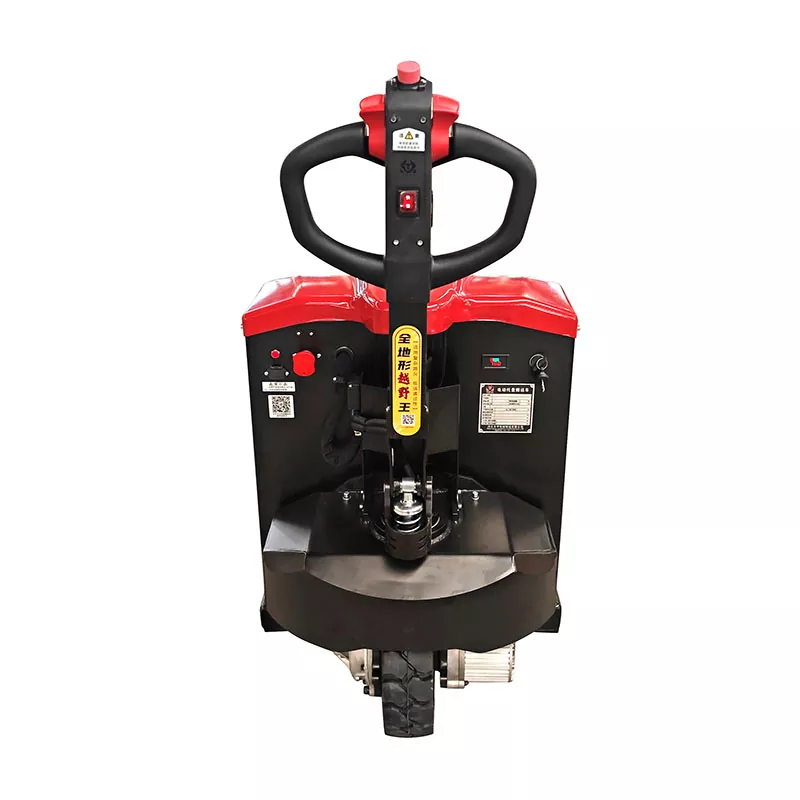

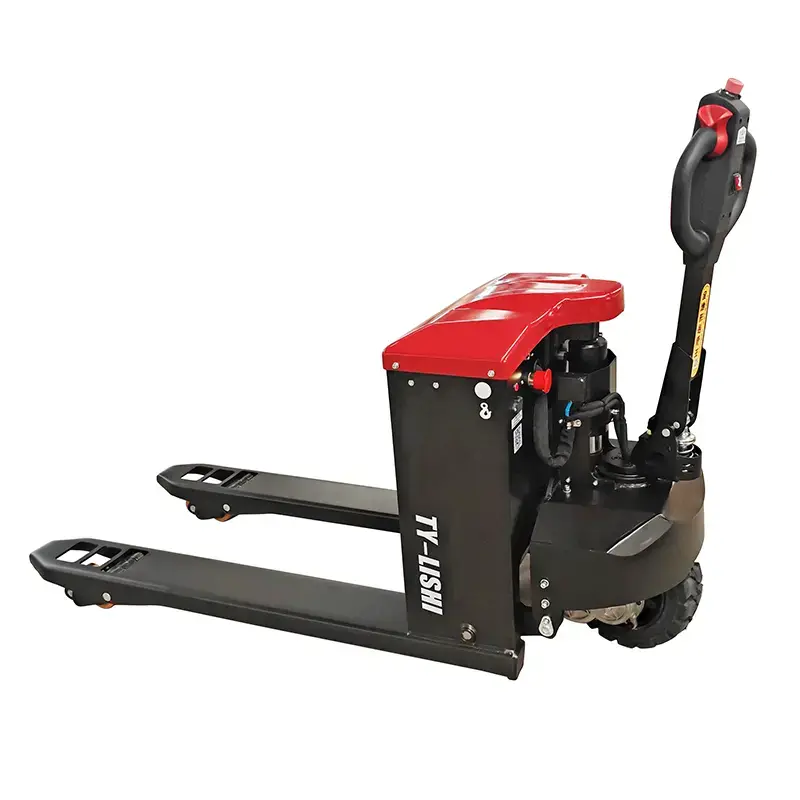

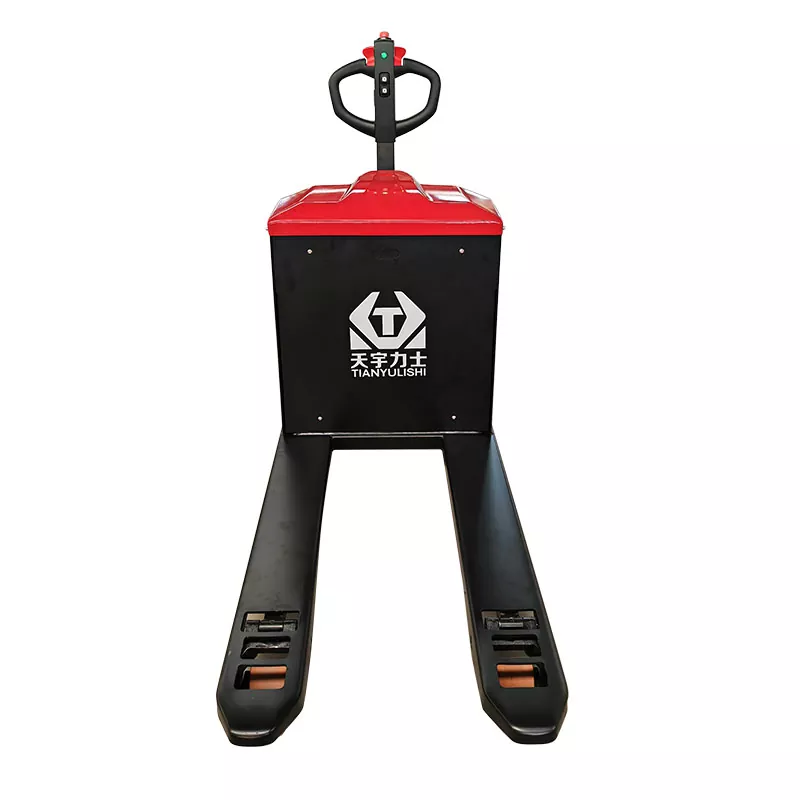

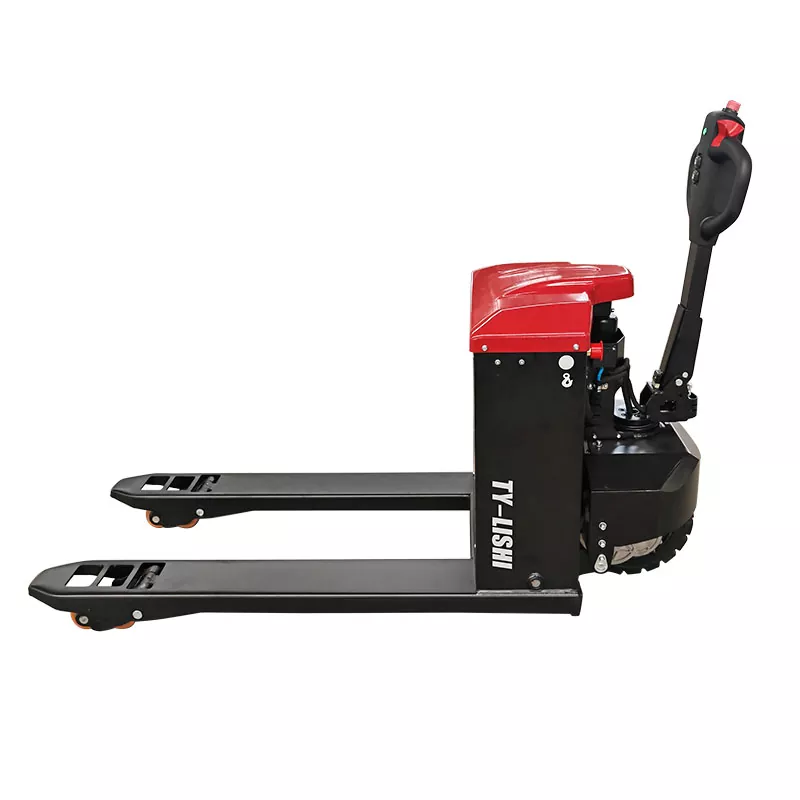

This TianyuLux 5000kg off-road electric pallet truck is a new product, and its characteristic is that it has a very large load capacity. Our product uses an independent hydraulic unit, which can better carry heavier loads, improve the overall load-bearing capacity of the equipment, and carry 5 tons of cargo very easily. It can be used to carry heavier molds, large equipment, reinforced concrete, steel plates and square steel, chemicals and liquids, etc. Our 5000kg off-road electric pallet truck has CE certification and has obtained ISO9001 international quality management system certification during the production process. TianyuLux off-road electric pallet truck is a good helper for you to carry heavy goods.
Parameter (Specification)
|
Features |
1 |
Model |
|
TYS30 Fully Electric |
TYS50 Fully Electric |
|
2 |
Power form |
|
Electrical |
Electrical |
|
|
3 |
Operation |
|
Pedestrian |
Pedestrian |
|
|
4 |
Load |
kg |
3000 |
5000 |
|
|
5 |
Load center distance |
mm |
600 |
600 |
|
|
6 |
Wheelbase |
mm |
1410/1360 |
1440/1390 |
|
|
Weight |
7 |
Self weight with battery |
kg |
283 |
356 |
|
Wheel |
8 |
Wheel Type |
|
Front rubber/PU, rear PU/nylon |
Front rubber/PU, rear PU/nylon |
|
9 |
Driving wheel size (diameter×width) |
mm |
φ350×100 |
φ350×100 |
|
|
10 |
Load-bearing wheel size (diameter×width) |
mm |
φ85×80 |
φ85×80 |
|
|
11 |
Number of wheels Drive side / Load side |
|
1/4 |
1/4 |
|
|
Basic size |
12 |
Maximum height of fork |
mm |
205 |
205 |
|
13 |
Lifting stroke |
mm |
115 |
115 |
|
|
14 |
Minimum height of fork (±2mm) |
mm |
90 |
90 |
|
|
15 |
Fork outer distance |
mm |
685 |
685 |
|
|
16 |
Fork inner distance |
mm |
345 |
345 |
|
|
17 |
Length of forks |
mm |
1150/1220 |
1150/1220 |
|
|
18 |
Width of forks |
mm |
170 |
170 |
|
|
19 |
Thickness of forks |
mm |
62 |
62 |
|
|
20 |
Overall width |
mm |
685 |
685 |
|
|
22 |
Overall height without handle |
mm |
845 |
845 |
|
|
22 |
Overall length |
mm |
1860 |
1860 |
|
|
23 |
Overall height with handle |
mm |
1300 |
1300 |
|
|
24 |
Turning Radius |
mm |
1630 |
1660 |
|
|
Capability |
25 |
Travel speed, laden/unladen |
km/h |
4/4.5 |
4/4.5 |
|
26 |
Lifting speed, laden/unladen |
mm/s |
14/18 |
8/11.8 |
|
|
27 |
Maximum climbing grade, laden/unladen |
% |
8/16 |
8/16 |
|
|
28 |
Brake type |
|
Electronic brake / electromagnetic brake |
Electronic brake / electromagnetic brake |
|
|
Motor / Battery |
29 |
Rated power of driving motor |
kw |
1.2 |
1.5 |
|
30 |
Rated power of lifting motor |
kw |
0.8 |
1.2 |
|
|
31 |
Lead-acid Battery |
V/Ah |
48/32 |
72/32 |
|
|
32 |
Battery weight |
kg |
36 |
54 |
Feature And Application
TianyuLux is a professional 5000kg off-road electric pallet truck factory in China. Our pallet trucks are very suitable for handling heavier goods. We have fully upgraded our products for handling 5 tons of heavy goods or large mechanical equipment.

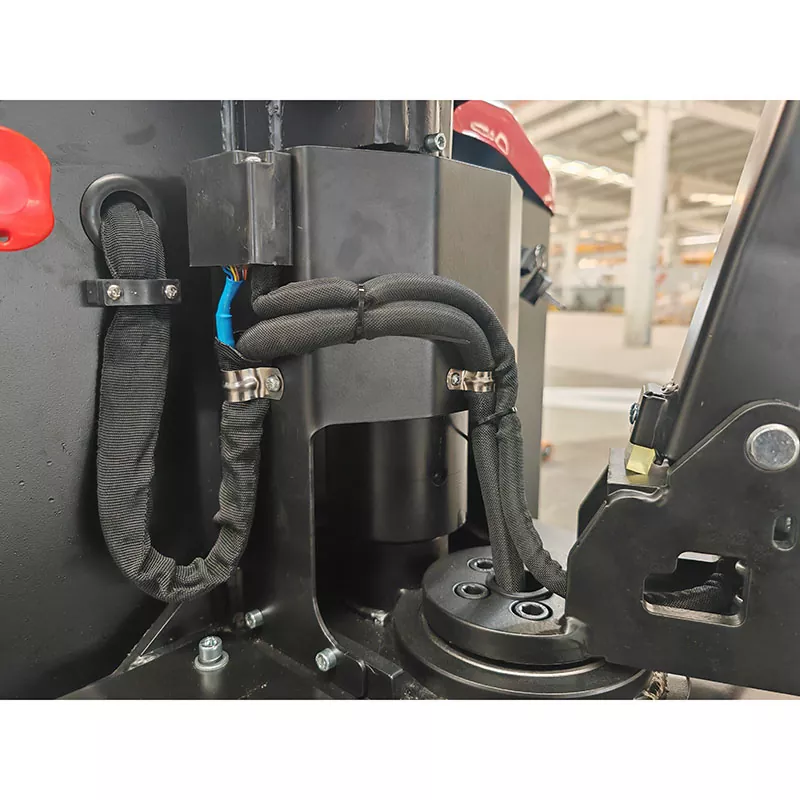

5-ton heavy-duty cylinder
We use a 65mm diameter large cylinder rod, which is less likely to bend or deform under high load conditions, and has a longer service life and is easier to maintain.
Our 5-ton pallet truck has upgraded the 6mm thick fork steel plate. The thicker steel plate can provide stronger resistance to bending and deformation, especially when carrying heavy objects or being pressed by heavy objects for a long time, which can ensure that the fork remains stable under high load.
The thicker steel plate also provides better wear resistance and a longer overall service life.
The upgraded and optimized fork structure, combined with the 6mm thick steel plate, greatly improves the impact resistance of the fork, and can better cope with some special usage scenarios (such as bumps, rapid lifting, etc.).

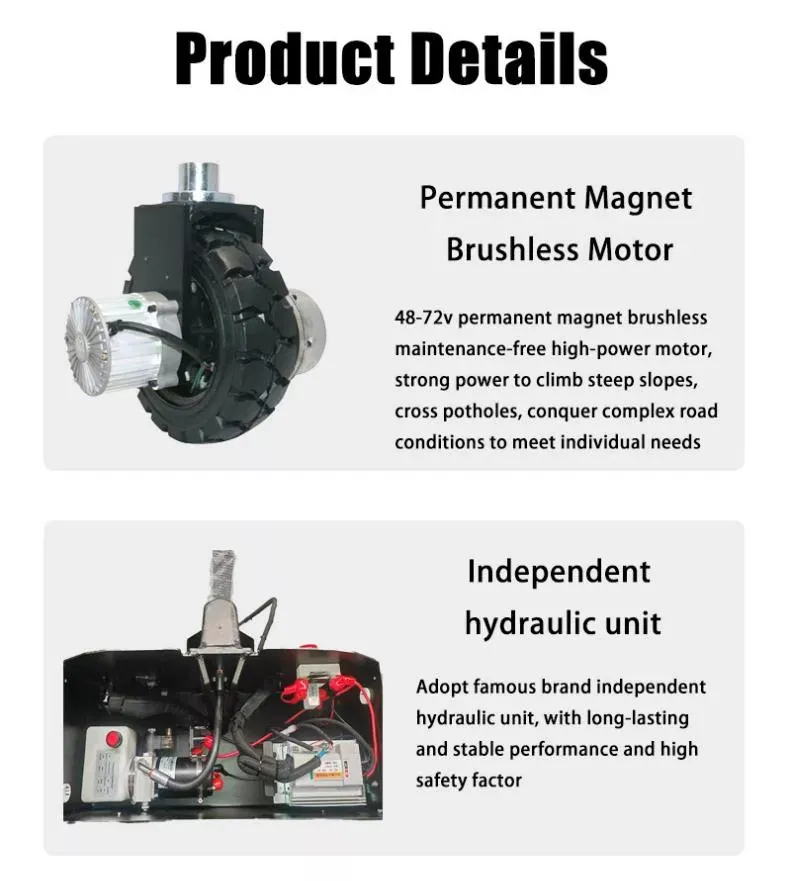

The larger drive motor provides more powerful power. The 1.5kW brushless maintenance-free motor can easily handle 5000kg of cargo, and climbing steep slopes is no problem.
Application Scenario

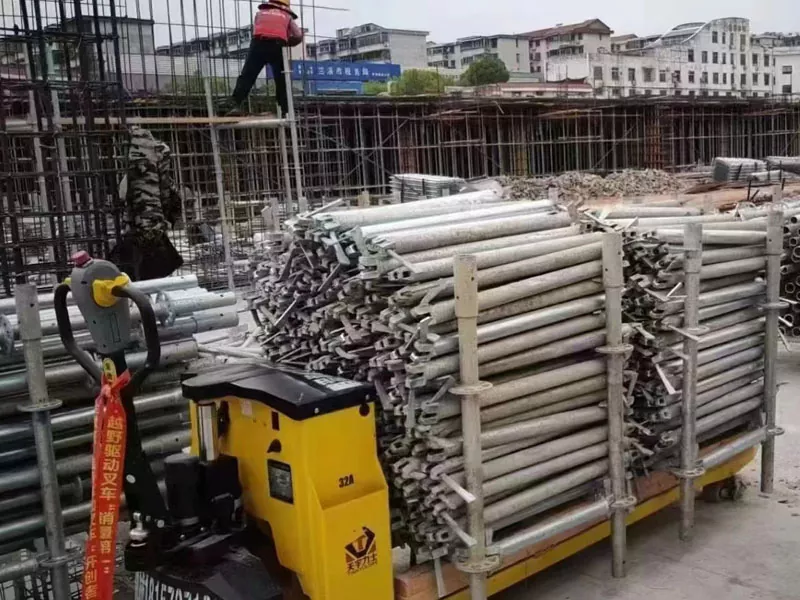

Construction Site

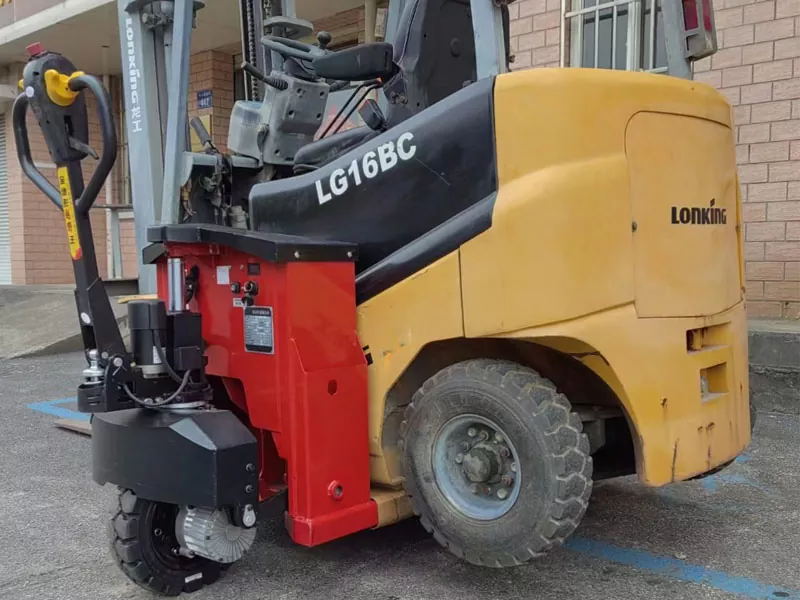

Large equipment

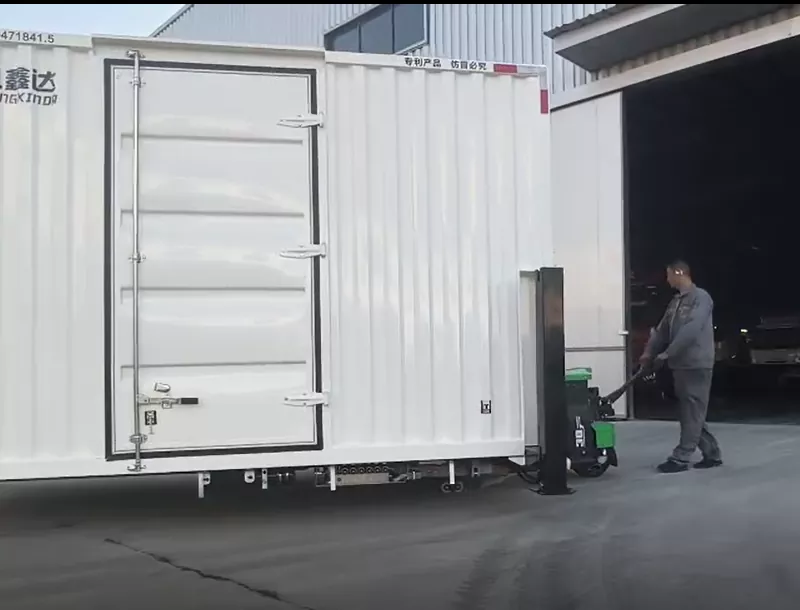

container
Flour Mill
Details

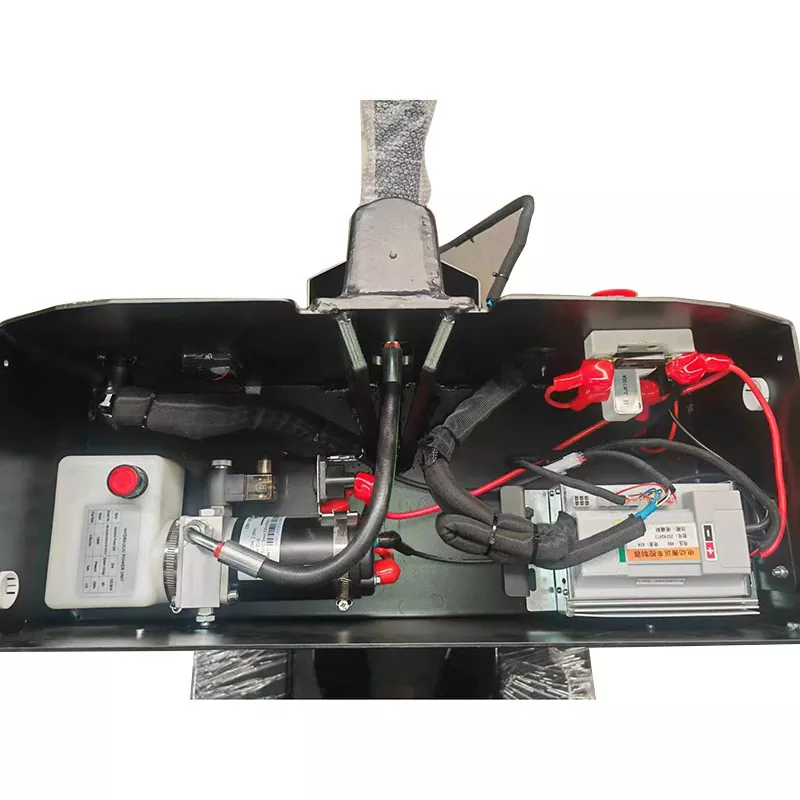

TianyuLux independently developed a 5000kg off-road electric pallet truck with an independent hydraulic unit. The structure is precise and the hydraulic unit can automatically adjust the power output according to the workload, avoiding unnecessary power waste, especially in long-term working environments with large load changes. , which can significantly save electricity and improve battery life.
Our Factory
TianyuLux has more than 100 off-road electric pallet truck production personnel, 3 production lines, more than 20 R&D personnel, more than 30 machining equipment, several large laser cutting machines, several stamping equipment, several robotic arm welding equipment, etc.
