5000kg All Terrain Electric Pallet Truck
TianyuLux is a Chinese 5000kg All Terrain Electric Pallet Truck manufacturer and supplier. We have focused on forklift equipment for many years. Our products are suitable for all kinds of road surfaces, all kinds of environments, and can help dealer partners to open up new markets. Our customers are in more than 50 countries and regions around the world. We look forward to becoming your long-term partner in China.
This TianyuLux 5000kg All Terrain Electric Pallet Truck is a new product. Its characteristics are that it has a very large load capacity and is very stable. The support beam of our pallet truck is made of reinforced and thickened steel plate. It is not easy to deform when it is upgraded with heavy loads. It is more stable when it is enlarged and widened. It can carry a maximum of 5.5 tons, has a high safety factor and is more durable.
Our products use independent hydraulic units, which can better carry heavier loads, improve the overall load-bearing capacity of the equipment, and easily carry 5 tons of cargo. It can be used to carry heavier molds, large equipment, reinforced concrete, steel plates and square steel, chemicals and liquids, etc. Our 5000kg All Terrain Electric Pallet Truck has CE certification and has obtained ISO9001 international quality management system certification during the production process. TianyuLux off-road electric pallet truck is a good helper for you to carry heavy objects.
Parameter (Specification)
|
Features |
1 |
Model |
|
TYS30 Fully Electric |
TYS50 Fully Electric |
|
2 |
Power form |
|
Electrical |
Electrical |
|
|
3 |
Operation |
|
Pedestrian |
Pedestrian |
|
|
4 |
Load |
kg |
3000 |
5000 |
|
|
5 |
Load center distance |
mm |
600 |
600 |
|
|
6 |
Wheelbase |
mm |
1410/1360 |
1440/1390 |
|
|
Weight |
7 |
Self weight with battery |
kg |
283 |
356 |
|
Wheel |
8 |
Wheel Type |
|
Front rubber/PU, rear PU/nylon |
Front rubber/PU, rear PU/nylon |
|
9 |
Driving wheel size (diameter×width) |
mm |
φ350×100 |
φ350×100 |
|
|
10 |
Load-bearing wheel size (diameter×width) |
mm |
φ85×80 |
φ85×80 |
|
|
11 |
Number of wheels Drive side / Load side |
|
1/4 |
1/4 |
|
|
Basic size |
12 |
Maximum height of fork |
mm |
205 |
205 |
|
13 |
Lifting stroke |
mm |
115 |
115 |
|
|
14 |
Minimum height of fork (±2mm) |
mm |
90 |
90 |
|
|
15 |
Fork outer distance |
mm |
685 |
685 |
|
|
16 |
Fork inner distance |
mm |
345 |
345 |
|
|
17 |
Length of forks |
mm |
1150/1220 |
1150/1220 |
|
|
18 |
Width of forks |
mm |
170 |
170 |
|
|
19 |
Thickness of forks |
mm |
62 |
62 |
|
|
20 |
Overall width |
mm |
685 |
685 |
|
|
22 |
Overall height without handle |
mm |
845 |
845 |
|
|
22 |
Overall length |
mm |
1860 |
1860 |
|
|
23 |
Overall height with handle |
mm |
1300 |
1300 |
|
|
24 |
Turning Radius |
mm |
1630 |
1660 |
|
|
Capability |
25 |
Travel speed, laden/unladen |
km/h |
4/4.5 |
4/4.5 |
|
26 |
Lifting speed, laden/unladen |
mm/s |
14/18 |
8/11.8 |
|
|
27 |
Maximum climbing grade, laden/unladen |
% |
8/16 |
8/16 |
|
|
28 |
Brake type |
|
Electronic brake / electromagnetic brake |
Electronic brake / electromagnetic brake |
|
|
Motor / Battery |
29 |
Rated power of driving motor |
kw |
1.2 |
1.5 |
|
30 |
Rated power of lifting motor |
kw |
0.8 |
1.2 |
|
|
31 |
Lead-acid Battery |
V/Ah |
48/32 |
72/32 |
|
|
32 |
Battery weight |
kg |
36 |
54 |
Feature And Application
TianyuLux is a professional 5000kg All Terrain Electric Pallet Truck factory in China. Our pallet trucks are very suitable for carrying heavier goods. We have fully upgraded our products for carrying 5-ton goods or large mechanical equipment.

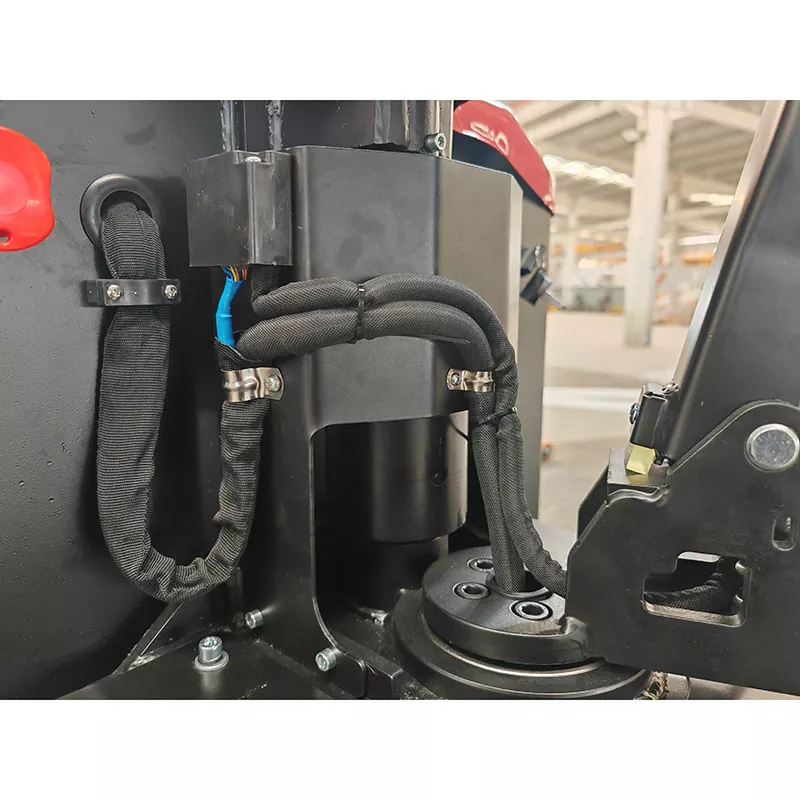

5-ton heavy-duty cylinder
We use a large 65mm diameter cylinder rod, which is not easy to bend or deform under high load conditions, has a longer service life and is easier to maintain.

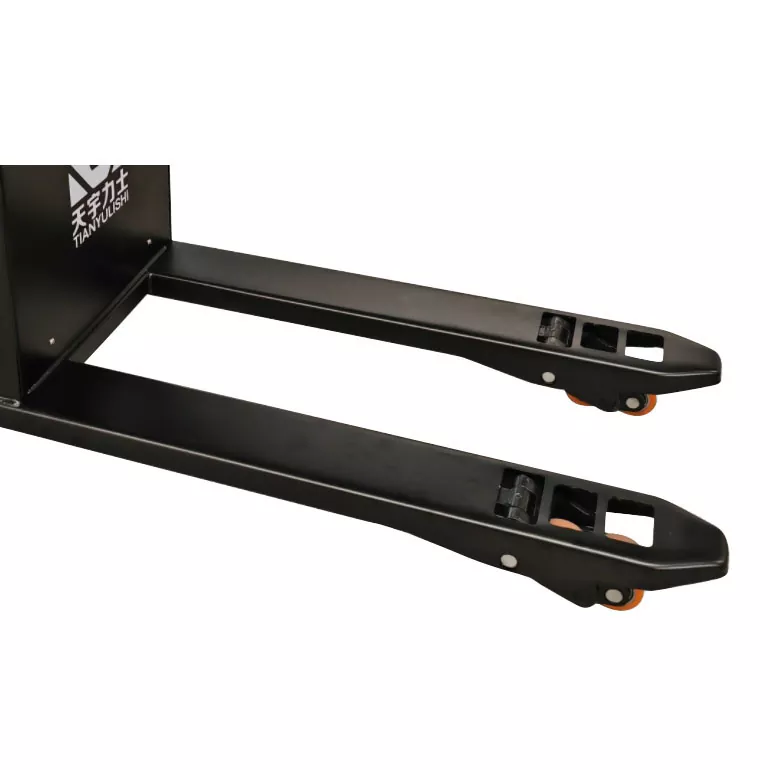

Our 5-ton pallet truck uses domestic 6.0 thickened steel plates, and the fork surface is stamped with reinforcing ribs throughout the body to improve the strength of the fork surface and is not easy to deform and sag. Four 88cm cold-bent support steel plates are added to the inside of the fork, and support steel plates are added to the fork tip to effectively prevent the fork tip from sagging and deformation, with a higher safety factor, less deformation and more durability.
Thicker steel plates also provide better wear resistance and longer overall service life.
The upgraded and optimized fork structure, combined with the 6mm thick steel plate, greatly improves the impact resistance of the fork, and can better cope with some special usage scenarios (such as bumps, rapid lifting, etc.).

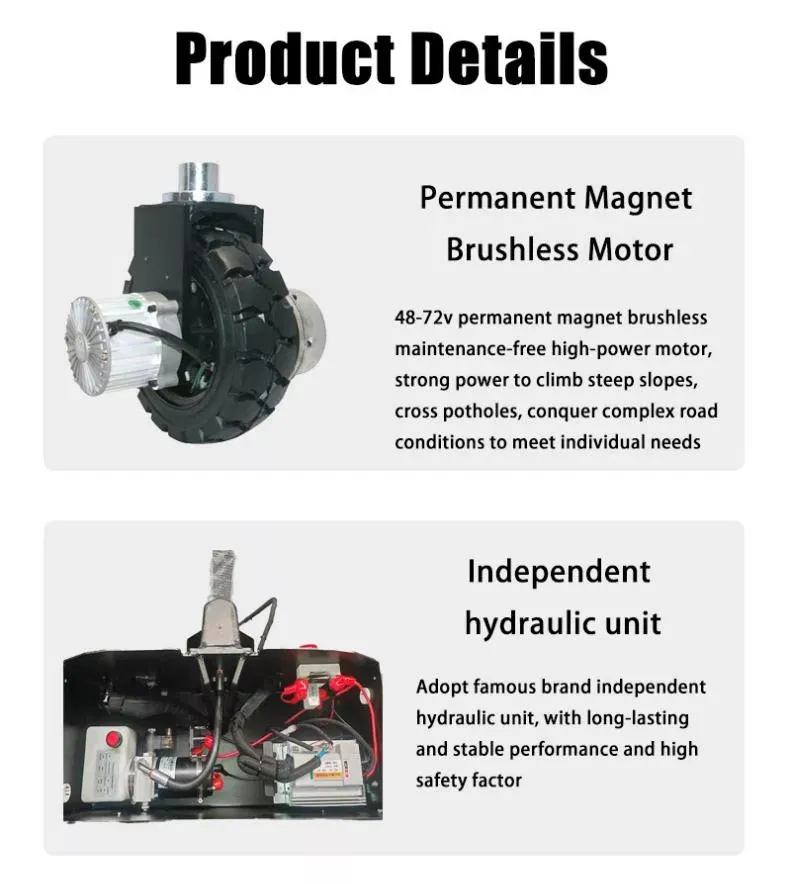

The larger drive motor provides stronger power. The 1.5kW brushless maintenance-free motor can easily carry 5000kg of cargo and climbing steep slopes is not a problem.
Application Scenario
Construction Site
Large equipment
container
Flour Mill
Details

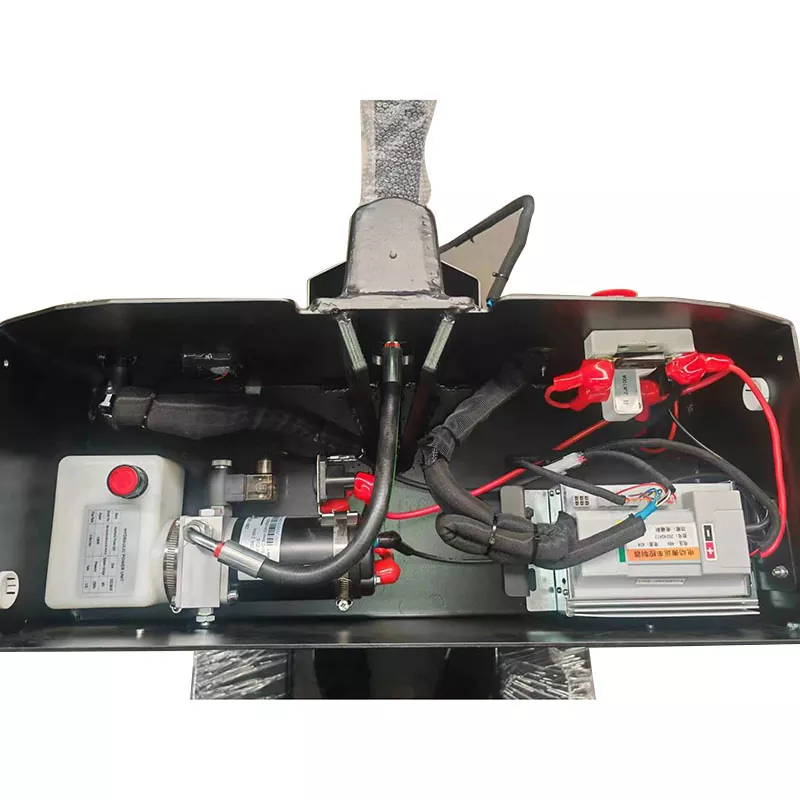

TianyuLux independently developed a 5000kg off-road pallet truck with an independent hydraulic unit. The structure is precise and the hydraulic unit can automatically adjust the power output according to the workload, avoiding unnecessary power waste, especially in long-term working environments with large load changes. , which can significantly save electricity and improve battery life.
Our Factory
TianyuLux has more than 100 off-road electric pallet truck production personnel, 3 production lines, more than 20 R&D personnel, more than 30 machining equipment, several large laser cutting machines, several stamping equipment, several robotic arm welding equipment, etc.
