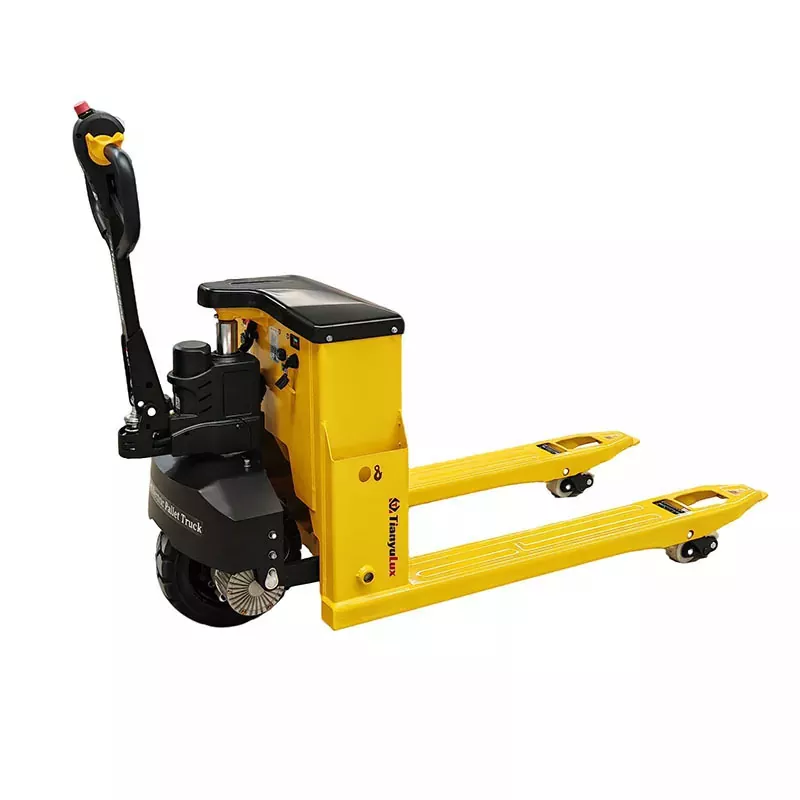

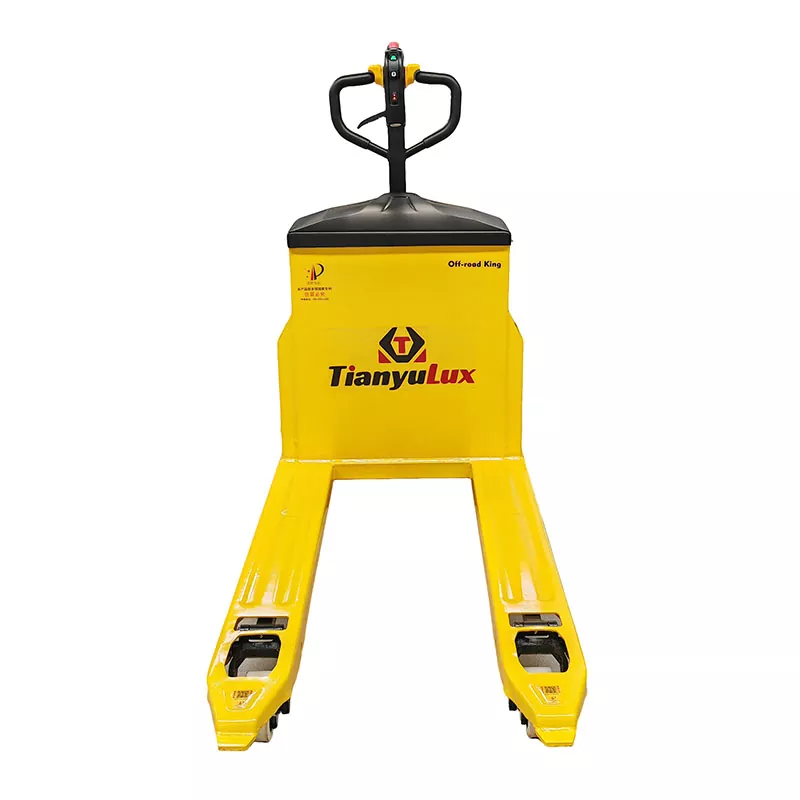

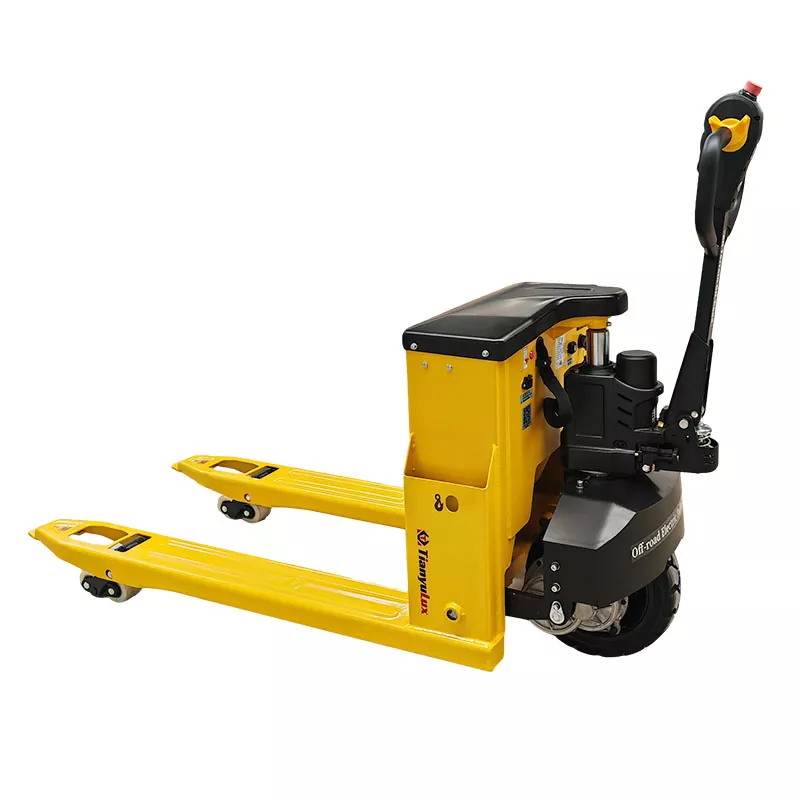

3000kg All Terrain Electric Pallet Truck
TianyuLux is a China Large 3000kg All Terrain Electric Pallet Truck manufacturer and supplier. We have focused on forklift equipment for many years. Our products have good quality and price advantages, suitable for all kinds of road use. We look forward to becoming your long-term partner in China.

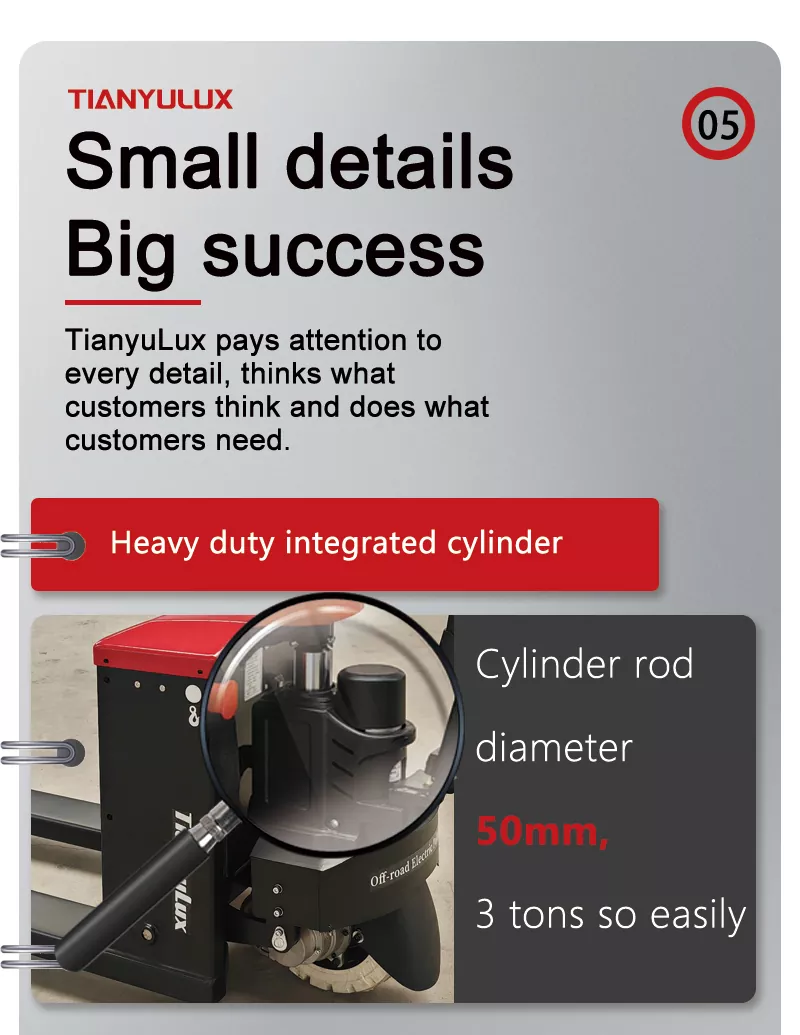

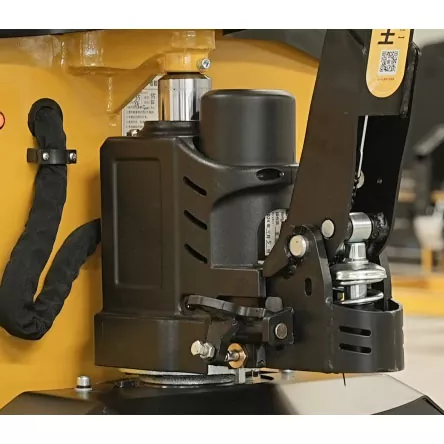

This TianyuLux 3000kg All Terrain Electric Pallet Truck is our latest differentiated product. Our product uses a large-load integrated heavy-duty cylinder with more stable quality. The cylinder rod diameter is upgraded to 50mm, the maximum load of the cylinder is 3500kg, the safety factor is higher, and it is more reliable. It is more labor-saving to lift goods, has a low failure rate and is more durable, and provides an extra-long warranty of one year. Our products have CE certification and have obtained ISO9001 international quality management system certification during the production process. TianyuLux off-road electric pallet truck is a good helper for you to open up new markets and improve your competitiveness.
Parameter (Specification)
|
Features |
1 |
Model |
|
TYA30-B (Pilot Factory Edition Lead Acid) |
TYA30-B (Pilot Factory Edition Lithium battery) |
|
2 |
Power form |
|
Electrical |
Electrical |
|
|
3 |
Operation |
|
Pedestrian |
Pedestrian |
|
|
4 |
Load |
kg |
3000 |
3000 |
|
|
5 |
Load center distance |
mm |
600 |
600 |
|
|
6 |
Wheelbase |
mm |
1320/1250 |
1390/1330 |
|
|
Weight |
7 |
Self weight with battery |
kg |
Rubber 273/PU 282 |
Rubber 249/PU 258 |
|
Wheel |
8 |
Wheel Type |
|
Front rubber, rear PU/nylon |
Front rubber, rear PU/nylon |
|
9 |
Driving wheel size (diameter×width) |
mm |
φ350×100 |
φ350×100 |
|
|
10 |
Load-bearing wheel size (diameter×width) |
mm |
φ80×70/60 |
φ80×70 |
|
|
11 |
Number of wheels Drive side / Load side |
|
1/4 |
1/4 |
|
|
Basic size |
12 |
Maximum height of fork |
mm |
200 |
200 |
|
13 |
Lifting stroke |
mm |
115 |
115 |
|
|
14 |
Minimum height of fork (±2mm) |
mm |
85 |
85 |
|
|
15 |
Fork outer distance |
mm |
550/685 |
550/685 |
|
|
16 |
Fork inner distance |
mm |
210/345 |
210/345 |
|
|
17 |
Length of forks |
mm |
1150/1220 |
1150/1220 |
|
|
18 |
Width of forks |
mm |
170 |
170 |
|
|
19 |
Thickness of forks |
mm |
62 |
62 |
|
|
20 |
Overall width |
mm |
570/685 |
570/685 |
|
|
22 |
Overall height without handle |
mm |
800 |
800 |
|
|
22 |
Overall length |
mm |
1900 |
1900 |
|
|
23 |
Overall height with handle |
mm |
1320 |
1320 |
|
|
24 |
Turning Radius |
mm |
1620 |
1620 |
|
|
Capability |
25 |
Travel speed, laden/unladen |
km/h |
4/4.5 |
4/4.5 |
|
26 |
Lifting speed, laden/unladen |
mm/s |
15/19 |
15/19 |
|
|
27 |
Maximum climbing grade, laden/unladen |
% |
8/16 |
8/16 |
|
|
28 |
制动类型Brake type |
|
Electronic brake / electromagnetic brake |
Electronic brake / electromagnetic brake |
|
|
Motor / Battery |
29 |
Rated power of driving motor |
kw |
1.2 |
1.2 |
|
30 |
Rated power of lifting motor |
kw |
0.8 |
0.8 |
|
|
31 |
Battery |
V/Ah |
48/32 |
48/30 |
|
|
32 |
Battery weight |
kg |
36 |
12 |
Feature And Application
TianyuLux is a professional 3000kg All Terrain Electric Pallet Truck factory in China. As our new product, the design of this 3000kg All Terrain Electric Pallet Truck focuses on improving off-road capability, climbing ability, stability and load capacity. It is not only suitable for complex environments, but also for flat roads such as factory warehouses.

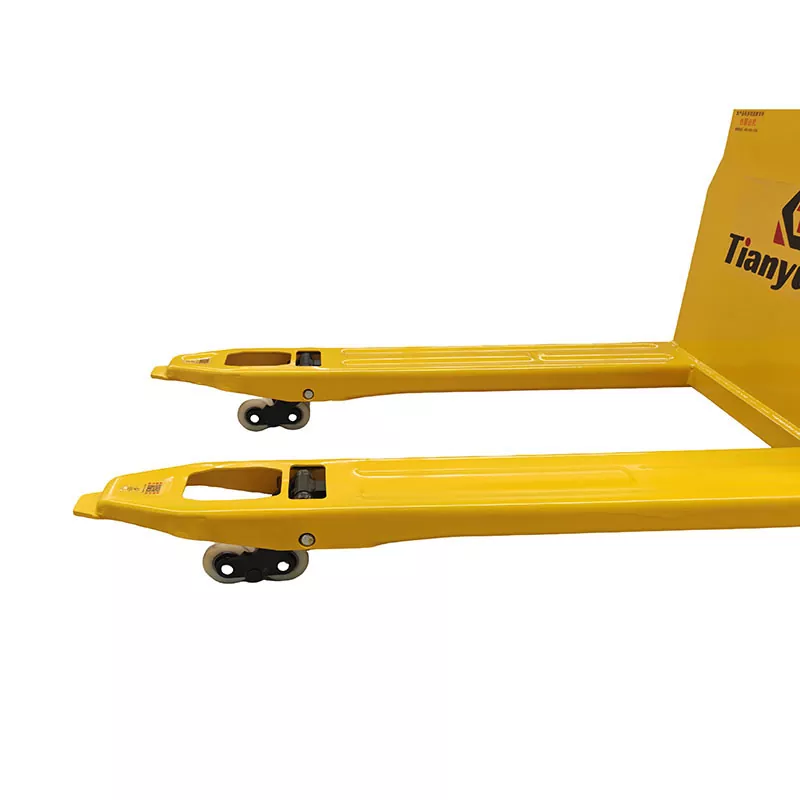

TianyuLux 3000kg All Terrain Electric Pallet Truck support beam adopts reinforced and thickened steel plate, which is not deformed when upgraded with heavy load, and is more stable when enlarged and widened. It can carry up to 3.5 tons, with a higher safety factor and more durability.

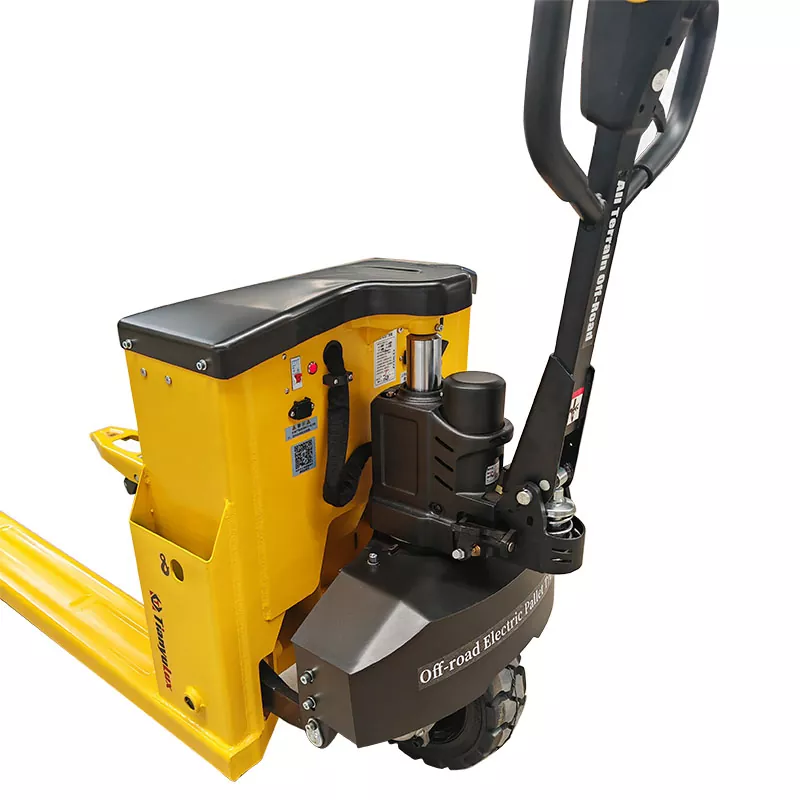

Gearbox upgrade heavy-duty fully sealed gearbox, using precision die-cast aluminum alloy gearbox housing, high precision, low noise, and long bearing life. The gear modulus is thickened and enlarged, heavy-load and impact-resistant, and the fully sealed gearbox is dustproof and waterproof. Life is upgraded.
The gearbox is customized with special "high adhesion synthetic grease". Even when the gear rotates at high speed, the grease always adheres to the gear and will not be thrown onto the housing. The gear is fully and permanently lubricated, the gear life is longer, and the ultra-long warranty is one year.
Application Scenario
Construction sites
metal processing plants
stone processing plants
flour mills
Details
TianyuLux independently developed an extra-large diameter 350*100 solid rubber tire, and the gearbox is 110mm above the ground, which can easily cope with various road conditions.
Our Factory
TianyuLux has more than 100 off-road electric pallet truck production personnel, 3 production lines, more than 20 R&D personnel, more than 30 machining equipment, several large laser cutting machines, several stamping equipment, several robotic arm welding equipment, etc.
