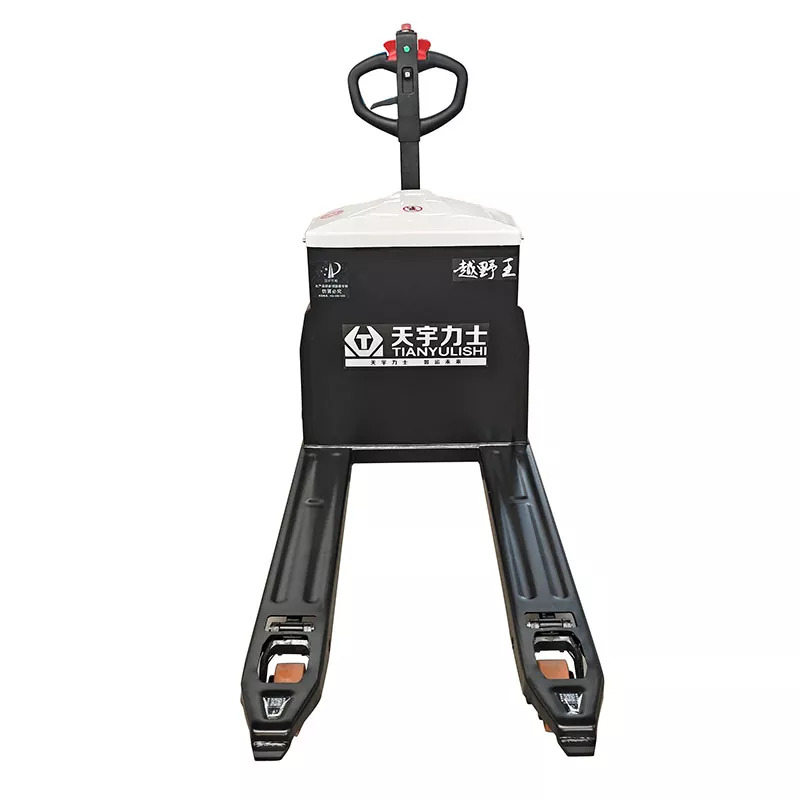

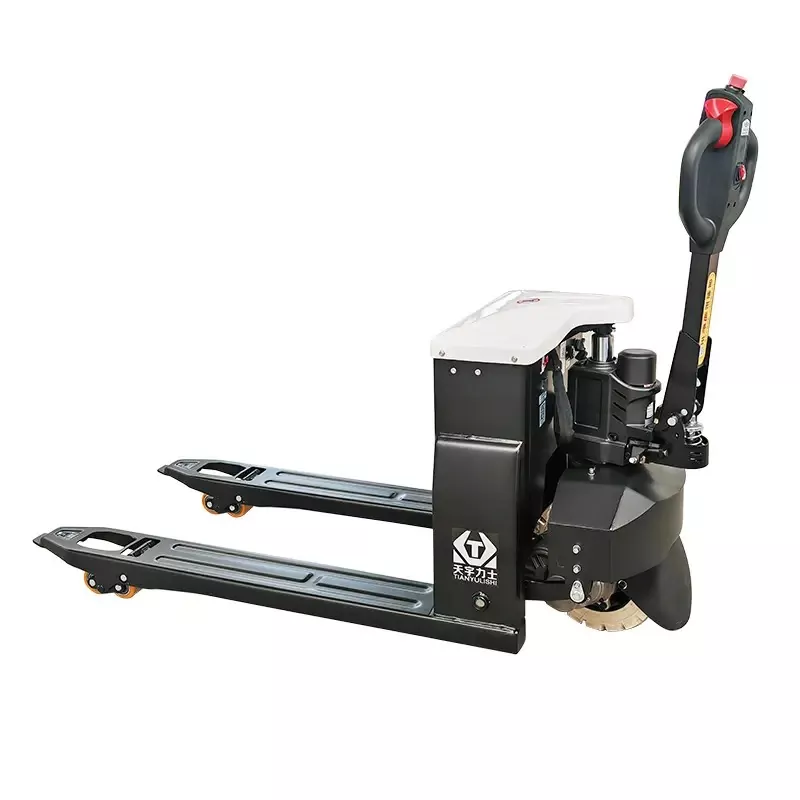

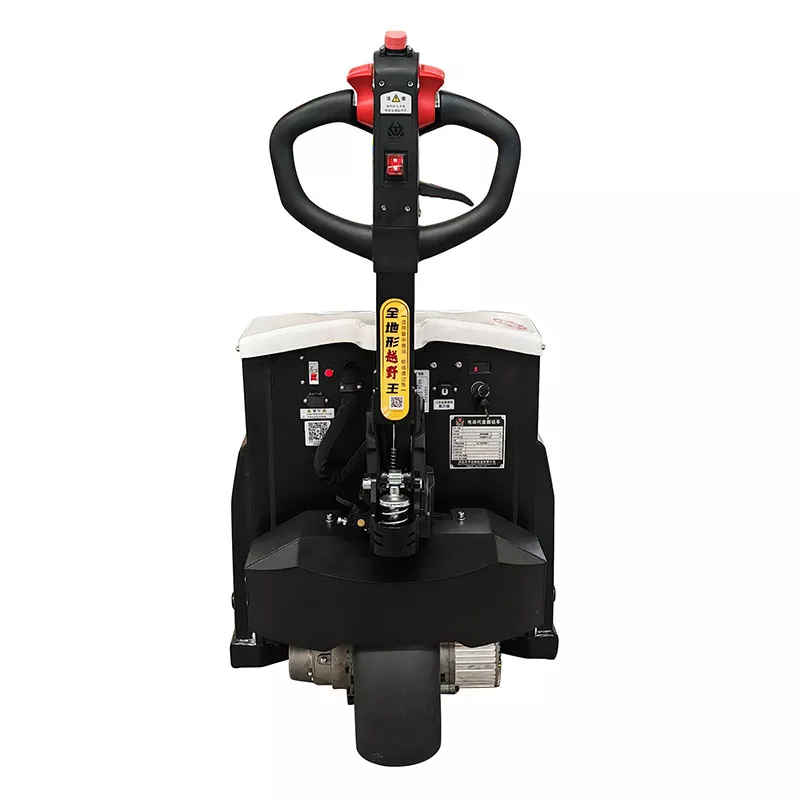

Waterproof Cold Storage Electric Pallet Truck

TianyuLux is a large-scale Waterproof Cold Storage Electric Pallet Truck manufacturer and supplier in China. We have focused on forklift equipment for many years. Our products have good waterproof effect, can be used normally in damp and cold cold storage, and have low failure rate and long service life. Our customers cover more than 50 countries and regions around the world. If you are interested in our product, please contact us quickly!

This TianyuLux Waterproof Cold Storage Electric Pallet Truck is a new product that can be used in cold storage. Our Electric Pallet Truck is particularly suitable for working in low-temperature environments such as cold storage. It can operate stably in low-temperature environments of -20°C to -30°C, ensuring efficient operation in severe cold conditions. The fully sealed motor and gearbox are waterproof and moisture-proof, adapting to the high humidity and high cold environment in the cold storage, effectively extending the service life of the equipment.

Parameter (Specification)

Features

1

Model



TYA30 Fully Electric (Champion Cold Storage Edition)

2

Power form



Electrical

3

Operation



Pedestrian

4

Load

kg

3000

5

Load center distance

mm

600

6

Wheelbase

mm

1230/1300

Weight

7

Self weight with battery

kg

215

Wheel

8

Wheel Type

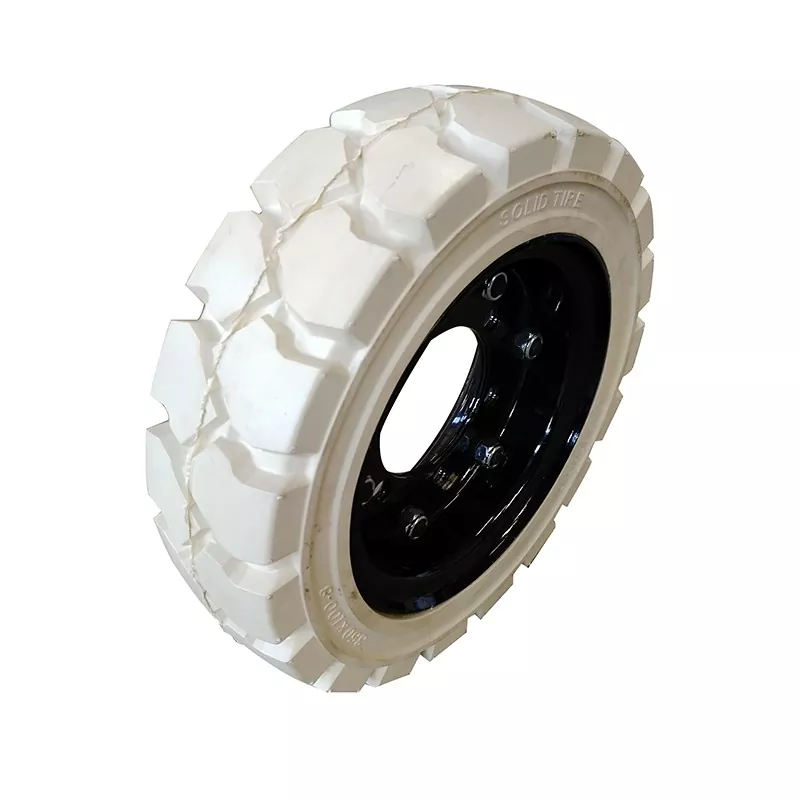

Front rubber, rear PU/nylon

9

Driving wheel size (diameter×width)

mm

φ350×100

10

)Load-bearing wheel size (diameter×width)

mm

φ80×70/60

11

Number of wheels Drive side / Load side



1/4

Basic size

12

Maximum height of fork

mm

200

13

Lifting stroke

mm

115

14

Minimum height of fork (±2mm)

mm

85

15

Fork outer distance

mm

550/685

16

Fork inner distance

mm

250/385,230/365

17

Length of forks

mm

1150/1220

18

Width of forks

mm

150/160

19

Thickness of forks

mm

60

20

Overall width

mm

570/685

22

Overall height without handle

mm

800

22

Overall length

mm

1780

23

Overall height with handle

mm

1280

24

Turning Radius

mm

1550

Capability

25

Travel speed, laden/unladen

km/h

4/4.5

26

Lifting speed, laden/unladen

mm/s

15/19

27

Maximum climbing grade, laden/unladen

%

8/16

28

Brake type



Electronic brake / electromagnetic brake

Motor / Battery

29

Rated power of driving motor

kw

1.0

30

Rated power of lifting motor

kw

0.8

31

Lead-acid Battery

V/Ah

48/32

32

Battery weight

kg

36

Feature And Application

TianyuLux is a professional Waterproof Cold Storage Electric Pallet Truck factory in China. Our pallet trucks are waterproof and moisture-proof, adapting to the high humidity and high cold environment in the cold storage. The controller harness adopts a fully sealed + glue coating method to effectively extend the service life of the equipment.

The fork adopts sandblasting + electrophoresis + baking paint process, which can prevent the pallet truck from rusting in a damp and cold environment.

The motor control system is adjusted by professional technicians to ensure that the vehicle's motor and battery can reasonably distribute power during acceleration, deceleration and long-term use in the cold storage environment to avoid the endurance and power reduction caused by low temperature.

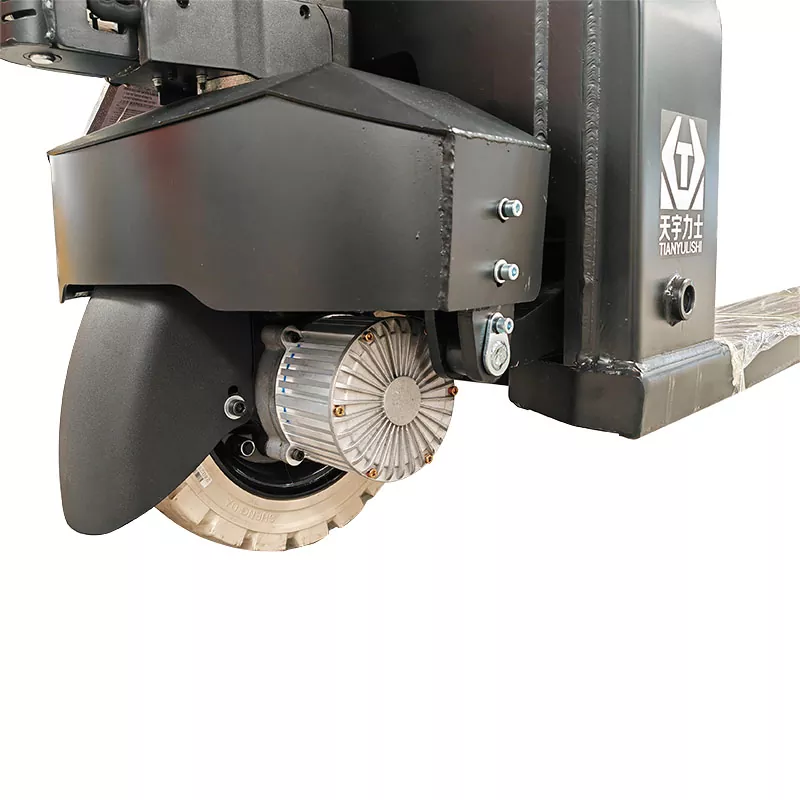

The air humidity in the cold storage is high, and the temperature difference is large, which easily leads to condensation of water vapor. TianyuLux Waterproof Cold Storage Electric Pallet Truck adopts a waterproof and moisture-proof design, especially the motor, gearbox, acceleration handle, and wiring harness connector are sealed to prevent water vapor from penetrating and protect the powertrain and electrical system from moisture.

Application Scenario

Cold Storage

Food Processing Plants

Medical cold chain

Seafood Market

Details

TianyuLux's independently developed Waterproof Cold Storage Electric Pallet Truck has an innovative design and excellent performance, which enables it to operate efficiently in various low-temperature and high-humidity environments. It is especially suitable for food processing, cold chain logistics, the pharmaceutical industry and other scenarios that require refrigerated transportation. In addition, with its high load capacity and sturdy structure, it is also suitable for heavy-load handling and is widely used in cold storage, factories, warehouses and various places that require low-temperature storage and transportation.

Our Factory

TianyuLux has more than 100 off-road electric pallet truck production personnel, 3 production lines, more than 20 R&D personnel, more than 30 machining equipment, several large laser cutting machines, several stamping equipment, several robotic arm welding equipment, etc.
